TPX-PM-USB

SKU TPX-PM-USB
$265.00
(0)No Reviews yet
* Product images are for illustration purposes only and may not be an exact representation of the item

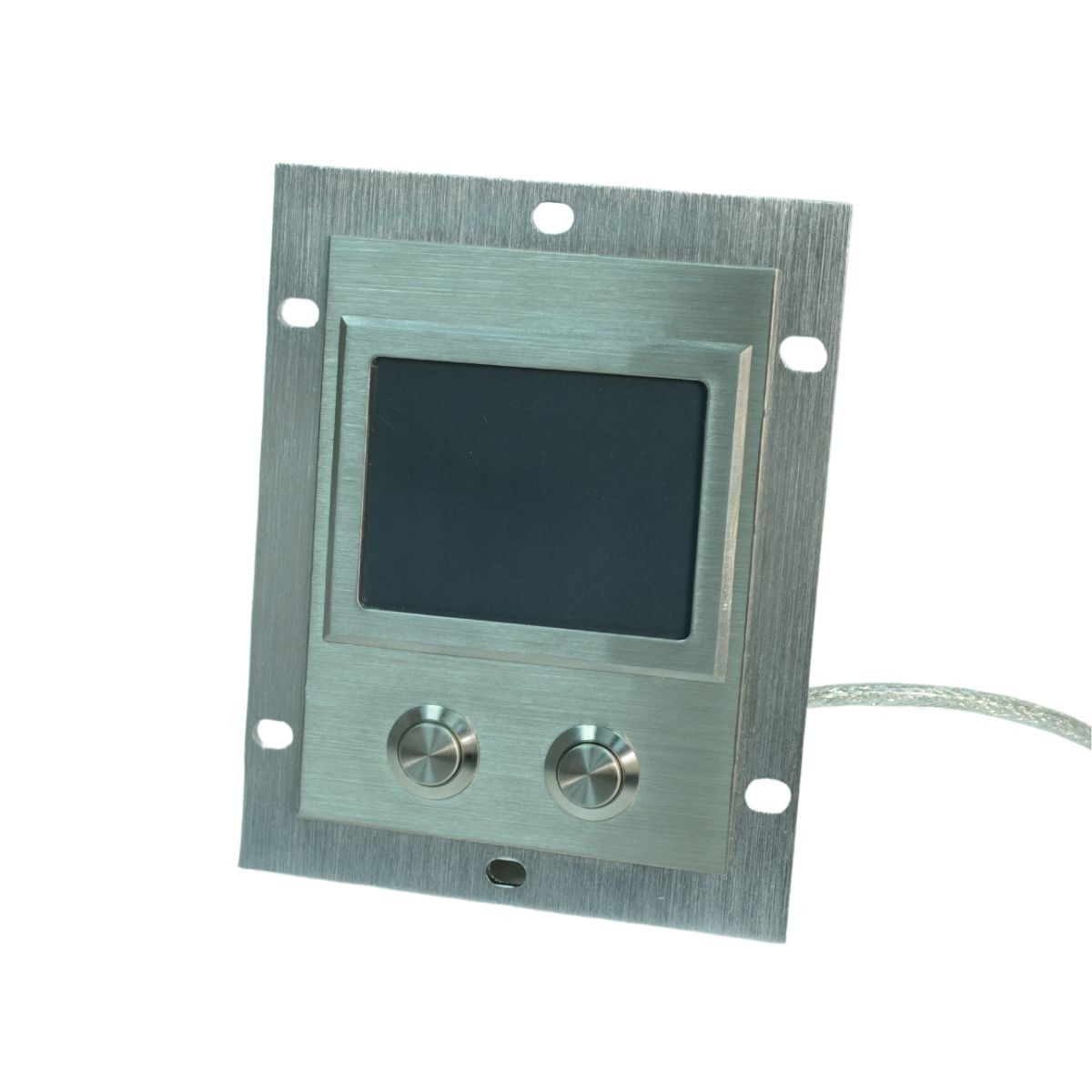

Model: TPX-PM-USB Panel Mount Touch Pad (MOUSE).
- Ergonomic Touchpad
- 2 flat keys below Touchpad
- Vandal proof, dismantle proof, abrasion proof
- Includes 6’ cable c/w USB connector

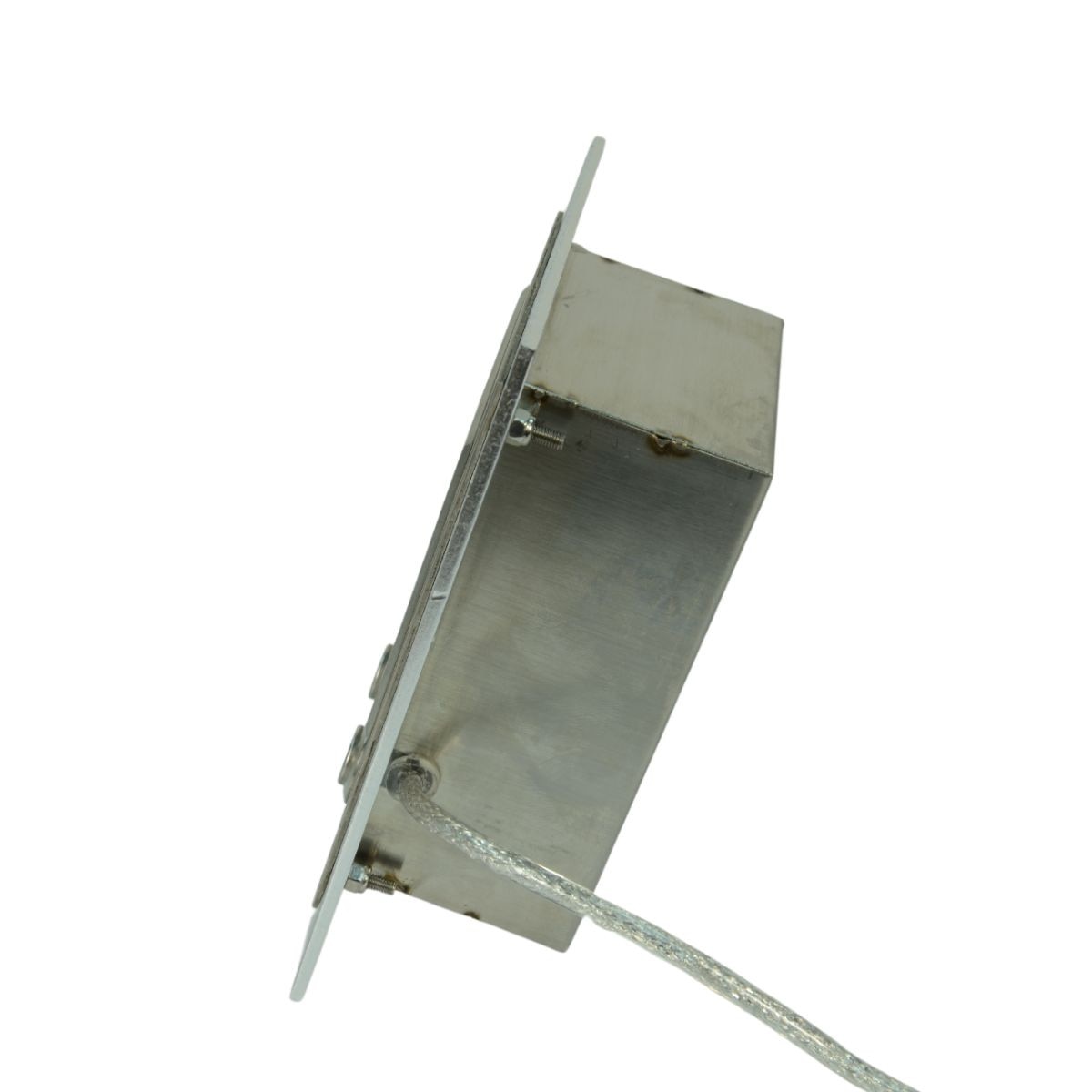

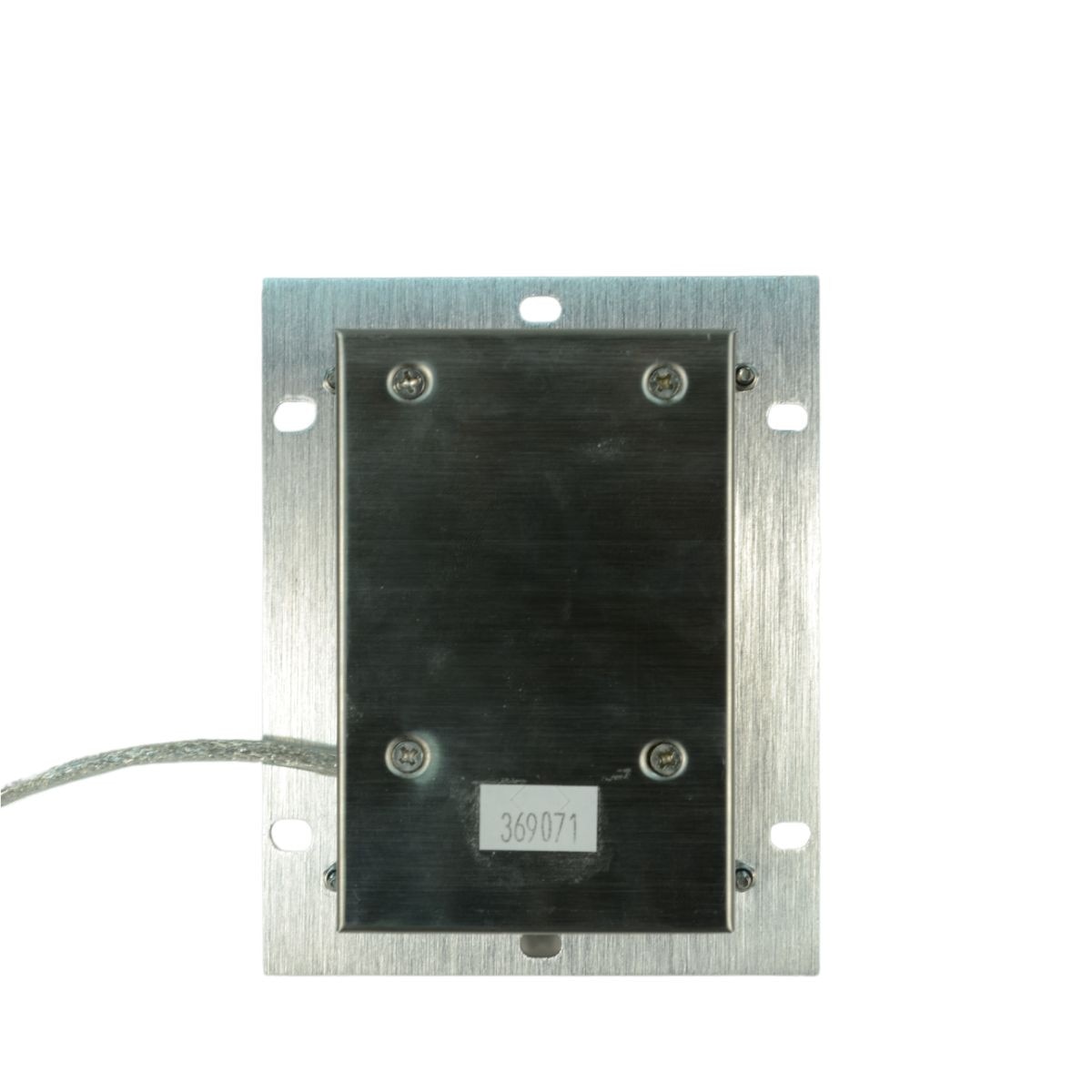

- Stainless Steel Panel Mount enclosure
- Dimensions: Front: 83mm W x 110mm H; Back: 107mm W x 134mm H x 25mm D
- 1 Year Warranty

[{"System":{"Processors":[],"Chipset":"","Memory":[],"Hardware Monitor":[],"Key Switch":["Contact: Stainless steel switch","Life: >10 million actuations","Life: >10 million revolutions","Material/Style: Brushed stainless steel buttons","Trackpad/Touchpad X/Y position sensing resolution: 1000 points/inch (40 points/mm)","Travel: 0.039\" (1.00mm)","X/Y position reporting: Relative Tracking speed: Maximum 1,016 m/sec"],"Cable":["5.75 Feet (1.75m) Single USB Connector"],"TPM Module":""}},{"Display":{"Display":[],"Aspect Ratio":"","Contrast Ratio":[],"Frequency":[],"Native Resolution":"","Response Time":"","Pixel Pitch":"","Controls":[],"Touchscreen":"","Video":[]}},{"Storage":{"Internal Storage":[],"Drive Bays":[],"Removable Storage":[],"Optical Drives":[]}},{"Input / Output":{"Ports":[],"Video Input":[],"Networking":[],"Communications":[],"Audio":[]}},{"Expansion":{"Internal Expansion":[],"Expansion Slots":[]}},{"Operating Systems":{"Operating Systems":[]}},{"Power":{"Power":["Current Rating: Approx. 4mA","Supply Voltage: +5V DC +/-10%"]}},{"Environmental":{"Environmental":["Atmospheric pressure: 60-106Kpa.","Humidity: 10% – 95%","Operating: -20C to +60C (-4F to +140F)","Storage: -40C to +70C (-40F to +158F)"]}},{"Compliance":{"Approvals":["IP65 dynamic (front panel), NEMA3 RoHS Compliant, CE and FCC"],"Compliance Certification":[]}},{"Physical":{"Chassis Description":[],"Housing":["Rugged Stainless Steel casing"],"Bezel Type":[],"Front Panel":[],"Rear Panel":[],"Cooling Fans":[],"Mounting":[],"Built-in Keyboard/Mouse":[],"Keyboard":"","Backlighting Illuminati":[],"Compliance-Certification":[],"Dimensions":["(W-D-H) 4.21\" x 5.27\" x 1.1\" (107mm x 134mm x 28mm)"],"Weight":[]}},{"General":{"Compatibility":["Compatible with all Windows Operating Systems"],"Included with System":[],"Options":[],"WatchDog Timer":[],"Warranty":["1 Year limited Warranty Standard"],"Disclaimer":"Note: Specifications are subject to change without notice."}}]
