SVZ-1851W-PM-PCT

SKU SVZ-1851W-PM-PCT
STORE DESCRIPTION:

18.5” Panel Mount TouchScreen LCD Display.

- 18.5" Panel Mount TouchScreen LCD Display; 1366 x 768 Resolution
- 400 Nits (cd/sq.m.) Brightness
- NEMA 4 Front Zero Bezel Panel

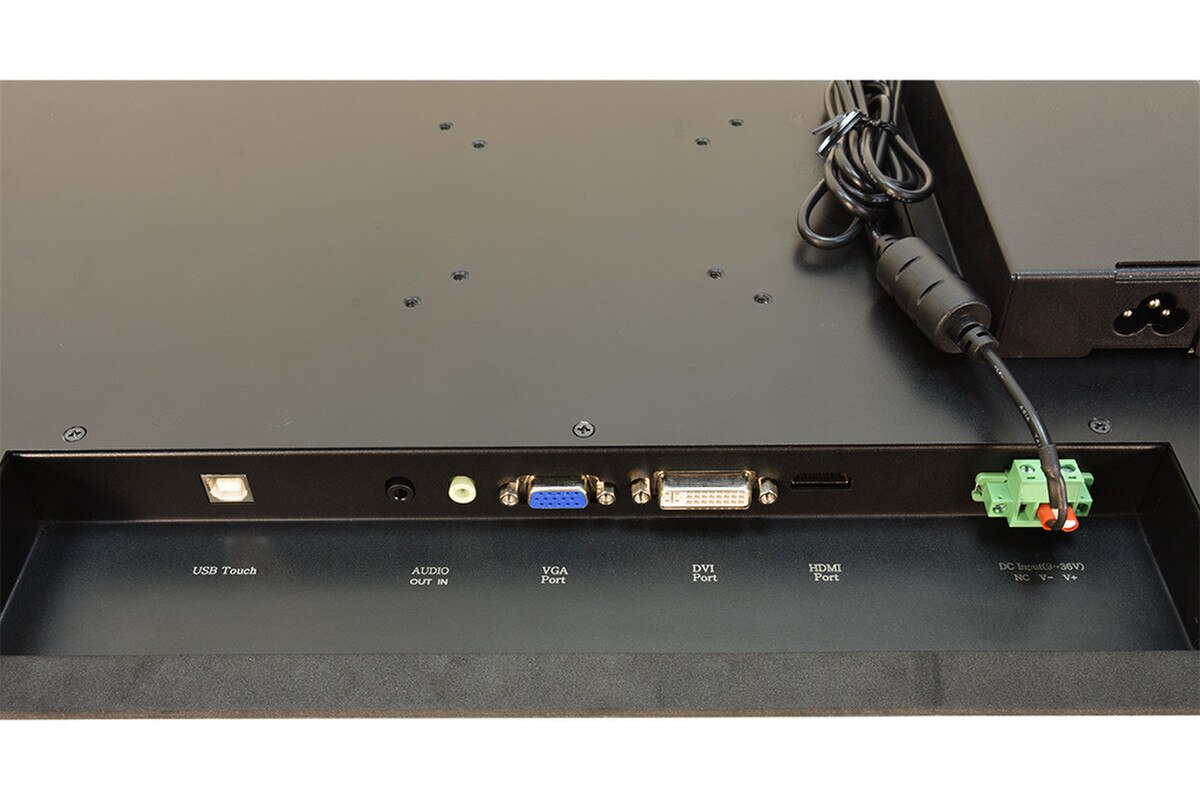

- Analog VGA/HD-15, DVI-D and HDMI Inputs

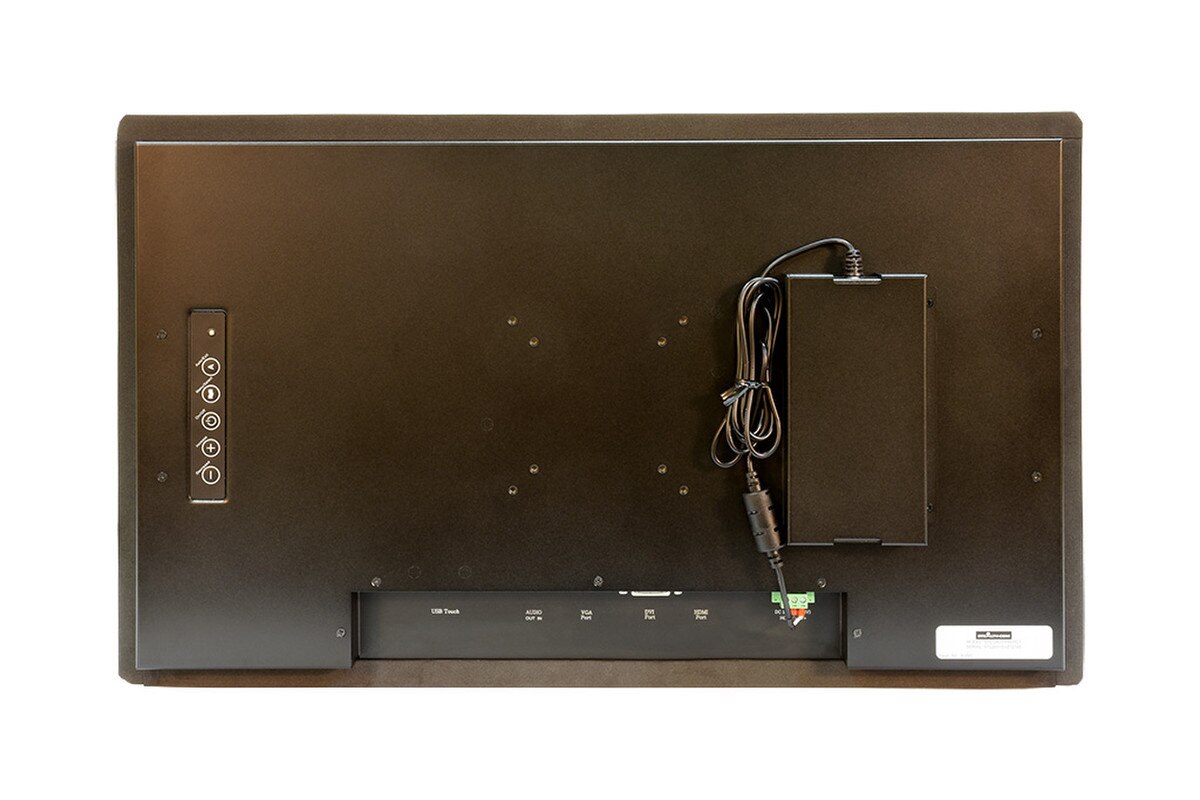

- 9-36V DC Terminal Input with Rear-Mounted (Removable) 110-240V AC, 120W Power Adapter
- CE, FCC, RoHS Certified

2 Year Warranty

ca$‎1,610.00
(0)No Reviews yet
* Product images are for illustration purposes only and may not be an exact representation of the item
Back

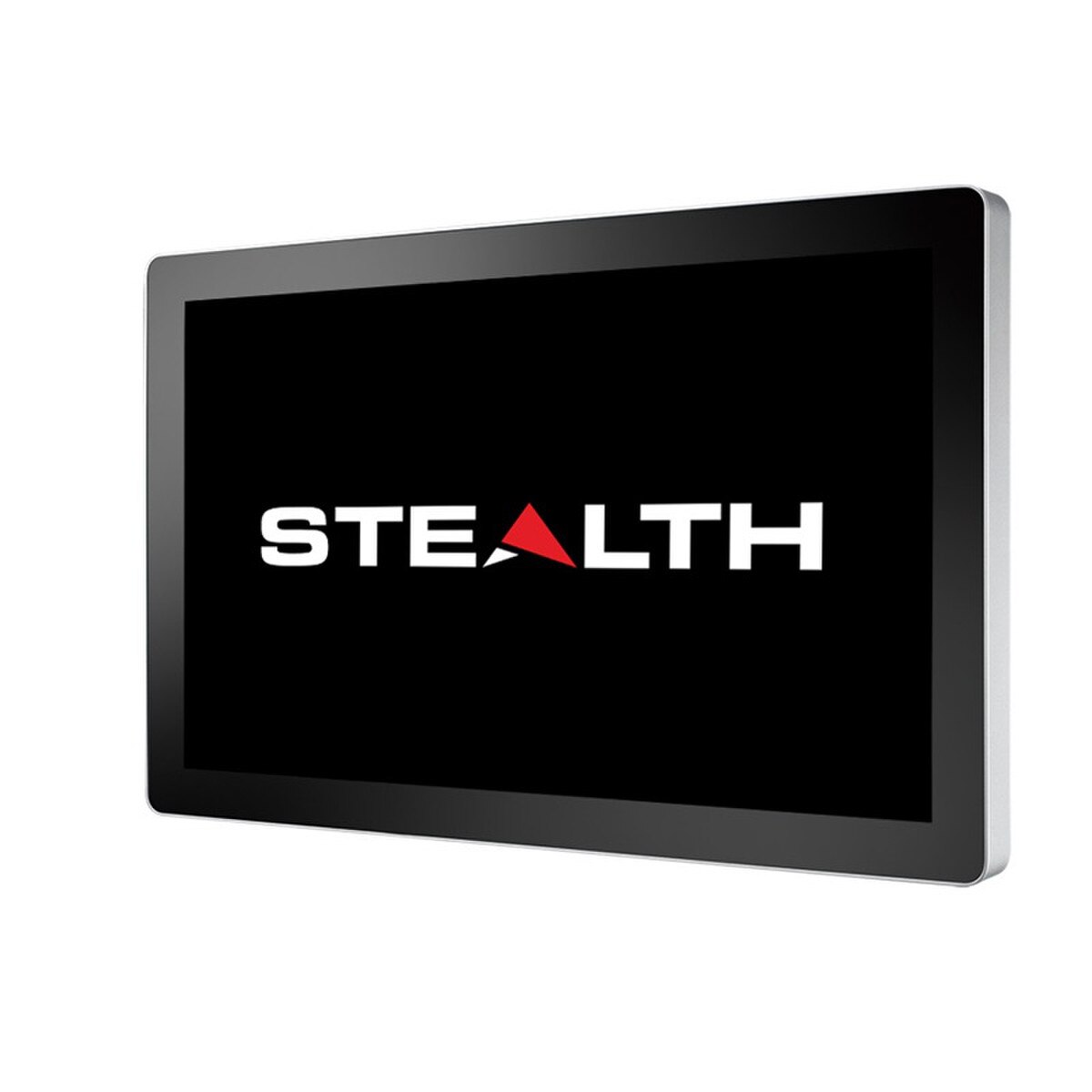

SVZ-1851W-PM-PCT – 18.5" Widescreen Zero Bezel Display with PCAP Touchscreen

The SVZ-1851W-PM-PCT combines 18.5" widescreen LED-backlit display with zero bezel design and enhanced 400-nit brightness for superior visibility. Its 10-point PCAP touchscreen, NEMA 4/IP65 sealed front, and fanless aluminum chassis deliver modern industrial performance with flexible mounting for operator workstations.


Key Benefits:

-Large widescreen 18.5" format with 1366x768 resolution for expansive horizontal workspace display

-Enhanced 400-nit brightness for excellent readability in varied industrial lighting environments

-10-point projected capacitive touchscreen for responsive multi-touch gestures and modern control

-Zero bezel aluminum design with NEMA 4/IP65 protection for contemporary industrial aesthetics

-Dual mounting options (panel/VESA 75/100mm) with flexible 9-36V DC or AC power and 2-year warranty


Applications:

Widescreen HMI operator stations, industrial control dashboards, production monitoring systems, machine interface panels, automation workstations, and multi-window industrial displays.
