SVZ-1700-PM-PCT

SKU SVZ-1700-PM-PCT
STORE DESCRIPTION:

17” Panel Mount TouchScreen LCD Display.

- 17" Panel Mount TouchScreen LCD Display; 1280 x 1024 Resolution
- 250 Nits (cd/sq.m.) Brightness
- NEMA 4 Front Zero Bezel Panel
- Analog VGA/HD-15, DVI-D and HDMI Inputs
- 9-36V DC Terminal Input with Rear-Mounted (Removable) 110-240V AC, 120W Power Adapter
- CE, FCC, RoHS Certified

2 Year Warranty

ca$‎1,465.00
(0)No Reviews yet
* Product images are for illustration purposes only and may not be an exact representation of the item
Back

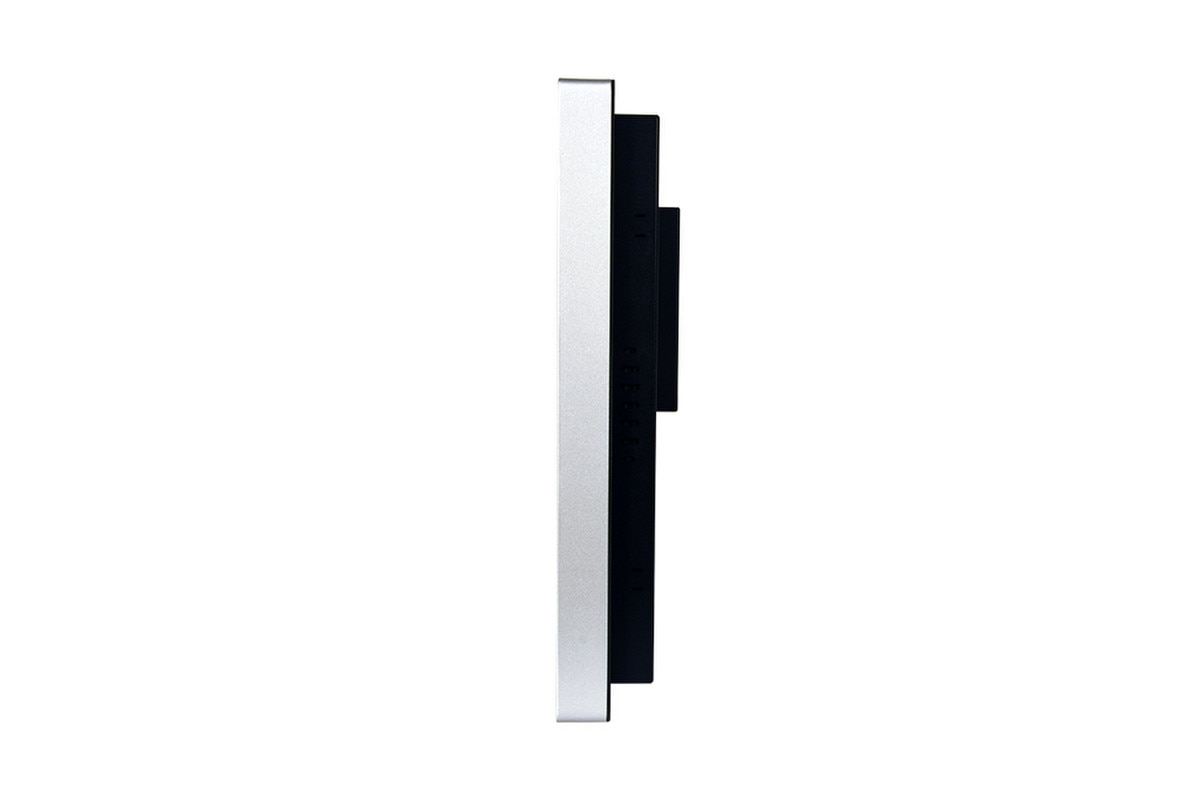

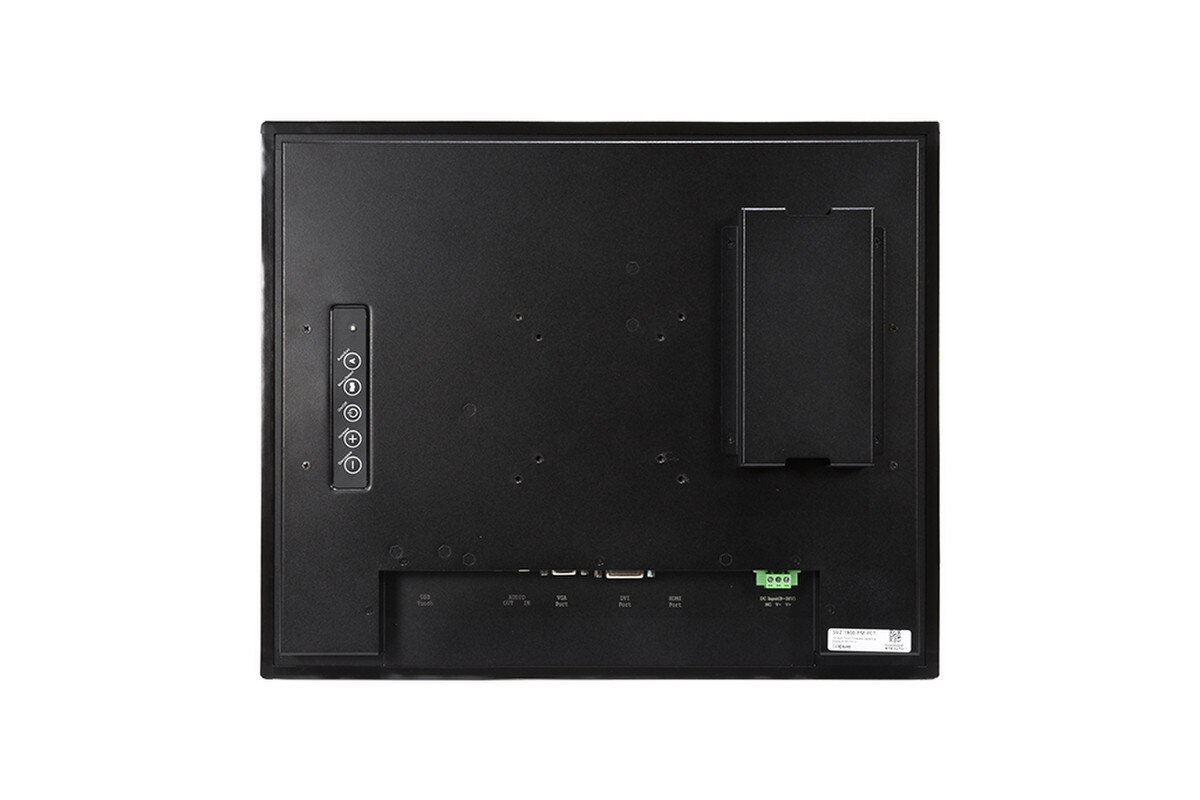

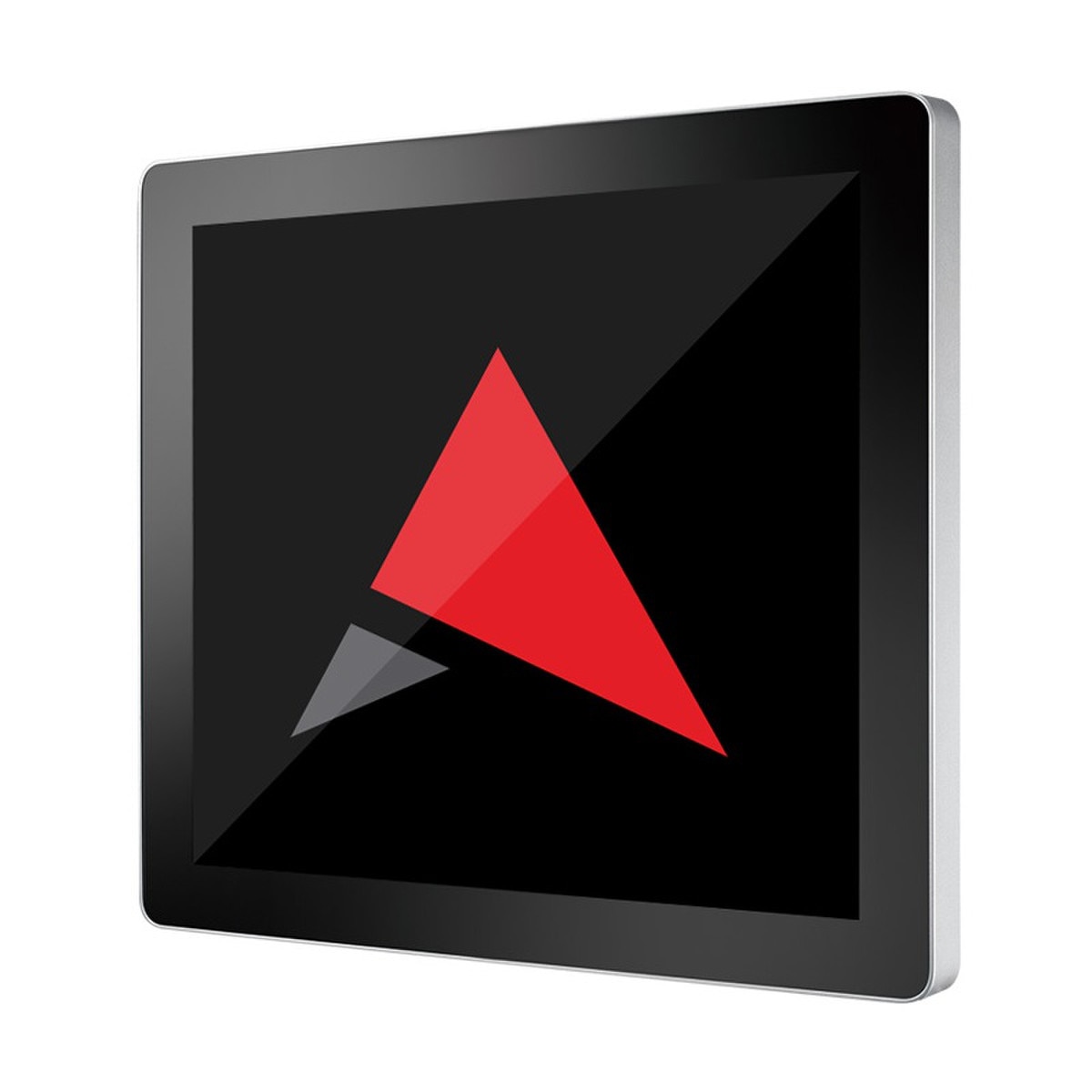

SVZ-1700-PM-PCT – 17" Zero Bezel Panel Mount Display with PCAP Touchscreen

The SVZ-1700-PM-PCT delivers 17" LED-backlit display with zero bezel design and 10-point PCAP touchscreen in a fanless aluminum chassis. Its NEMA 4/IP65 sealed front panel, 1280x1024 resolution, and dual mounting options provide enhanced visibility for industrial operator interfaces requiring larger display area.


Key Benefits:

-Large 17" display with 1280x1024 resolution for increased workspace and detailed information display

-Zero bezel aluminum design with NEMA 4/IP65 sealed front for professional industrial installations

-10-point projected capacitive touchscreen for precise multi-touch interaction and modern control

-Flexible installation: panel mount or VESA 75/100mm desktop with 9-36V DC or AC power

-Fanless operation with built-in 10W stereo speakers and 2-year warranty for maintenance-free service


Applications:

Industrial HMI stations, machine control panels, manufacturing operator interfaces, automation control centers, production monitoring displays, and large-format touchscreen workstations.
