SVZ-1560W-PM-PCT

SKU SVZ-1560W-PM-PCT
STORE DESCRIPTION:

15” Panel Mount TouchScreen LCD Display.

- 15" Panel Mount Touchscreen LCD Display; 1366 x 768 Resolution
- 400 Nits (cd/sq.m.) Brightness
- NEMA 4 Front Zero Bezel Panel

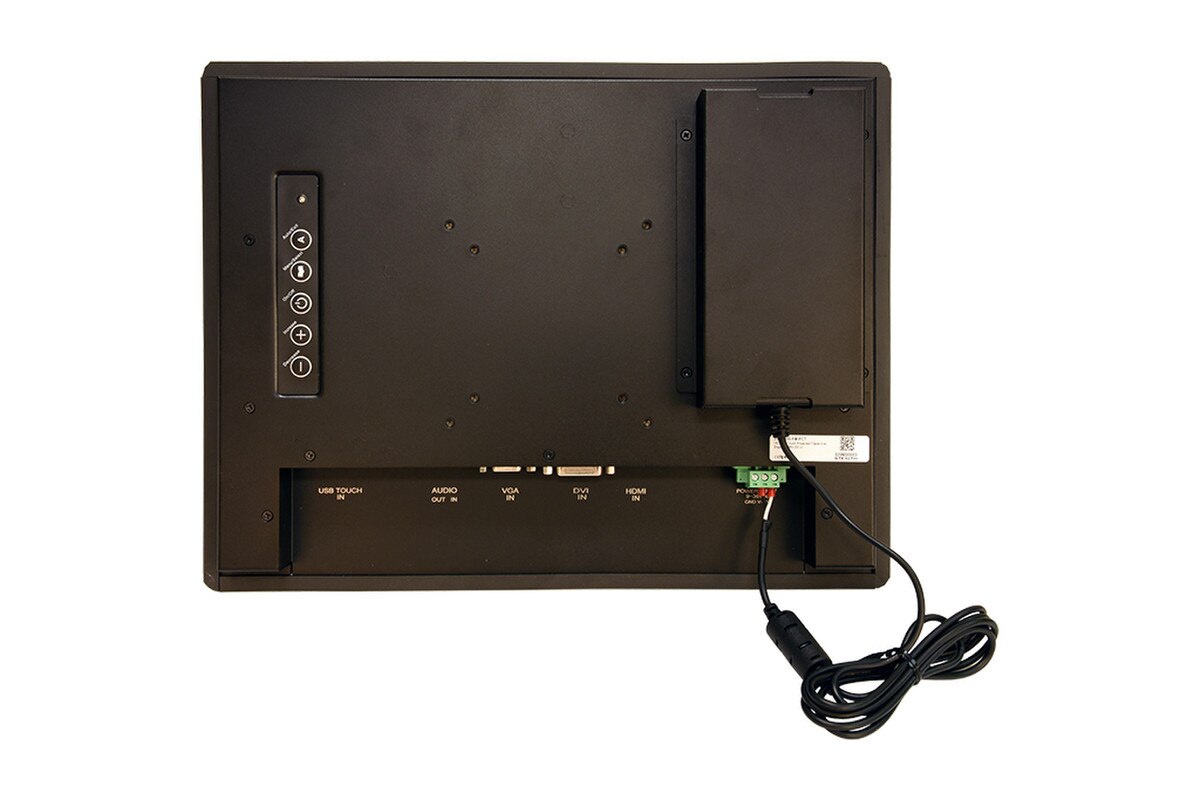

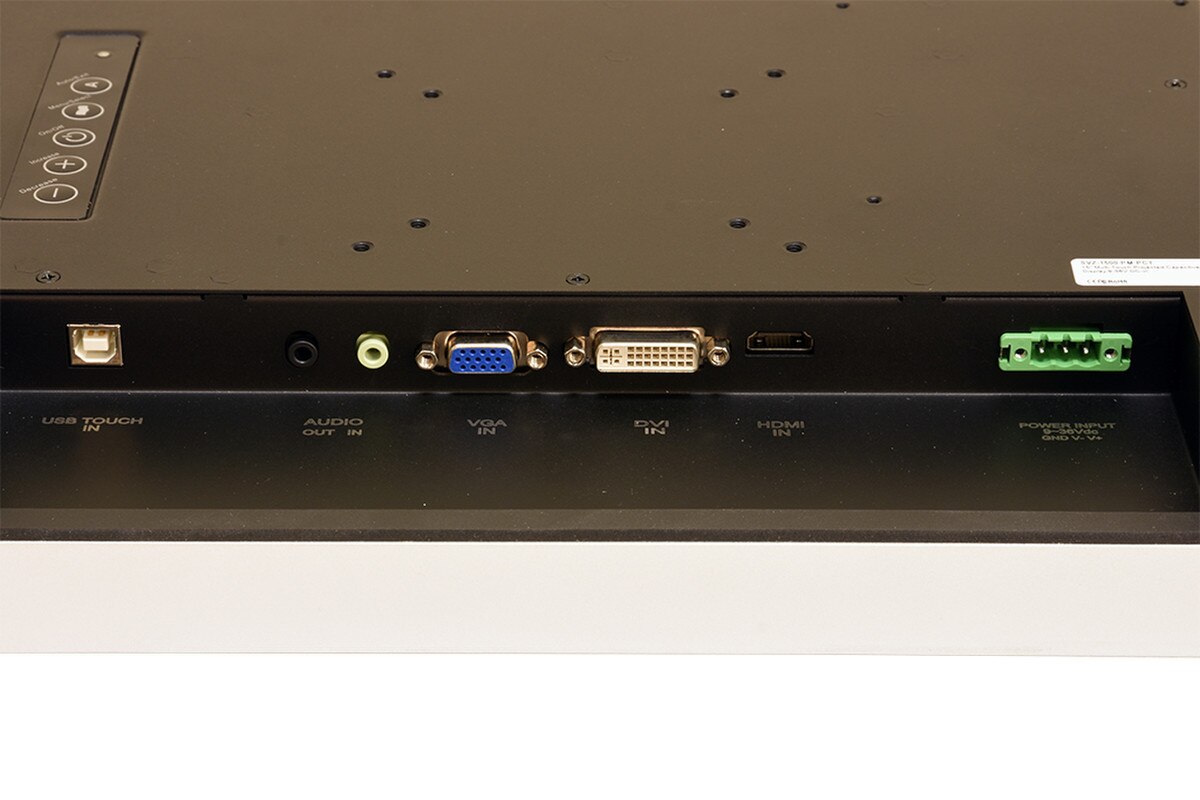

- Analog VGA/HD-15, DVI-D and HDMI Inputs
- 9-36V DC Terminal Input with Rear-Mounted (Removable) 110-240V AC, 120W Power Adapter
- CE, FCC, RoHS Certified

2 Year Warranty

ca$‎1,465.00
(0)No Reviews yet
* Product images are for illustration purposes only and may not be an exact representation of the item
Back

SVZ-1560W-PM-PCT – 15.6" Widescreen Zero Bezel Display with PCAP Touchscreen

The SVZ-1560W-PM-PCT features 15.6" widescreen LED-backlit display with zero bezel design and enhanced 400-nit brightness for superior visibility. Its 10-point PCAP touchscreen, NEMA 4/IP65 sealed front, and fanless aluminum chassis provide modern industrial HMI performance with flexible panel or VESA mounting.


Key Benefits:

-Widescreen 15.6" format with 1366x768 resolution for enhanced horizontal workspace visibility

-Enhanced 400-nit brightness for improved readability in various industrial lighting conditions

-10-point projected capacitive touchscreen for responsive multi-touch control and gesture support

-Zero bezel aluminum design with NEMA 4/IP65 protection for modern industrial environments

-Dual mounting flexibility (panel/VESA 75/100mm) with 9-36V DC or AC power and 2-year warranty


Applications:

Modern HMI interfaces, widescreen industrial dashboards, machine monitoring stations, production line displays, industrial automation panels, and multi-window operator workstations.
