SV-2410W-PM-RT
* Product images are for illustration purposes only and may not be an exact representation of the item

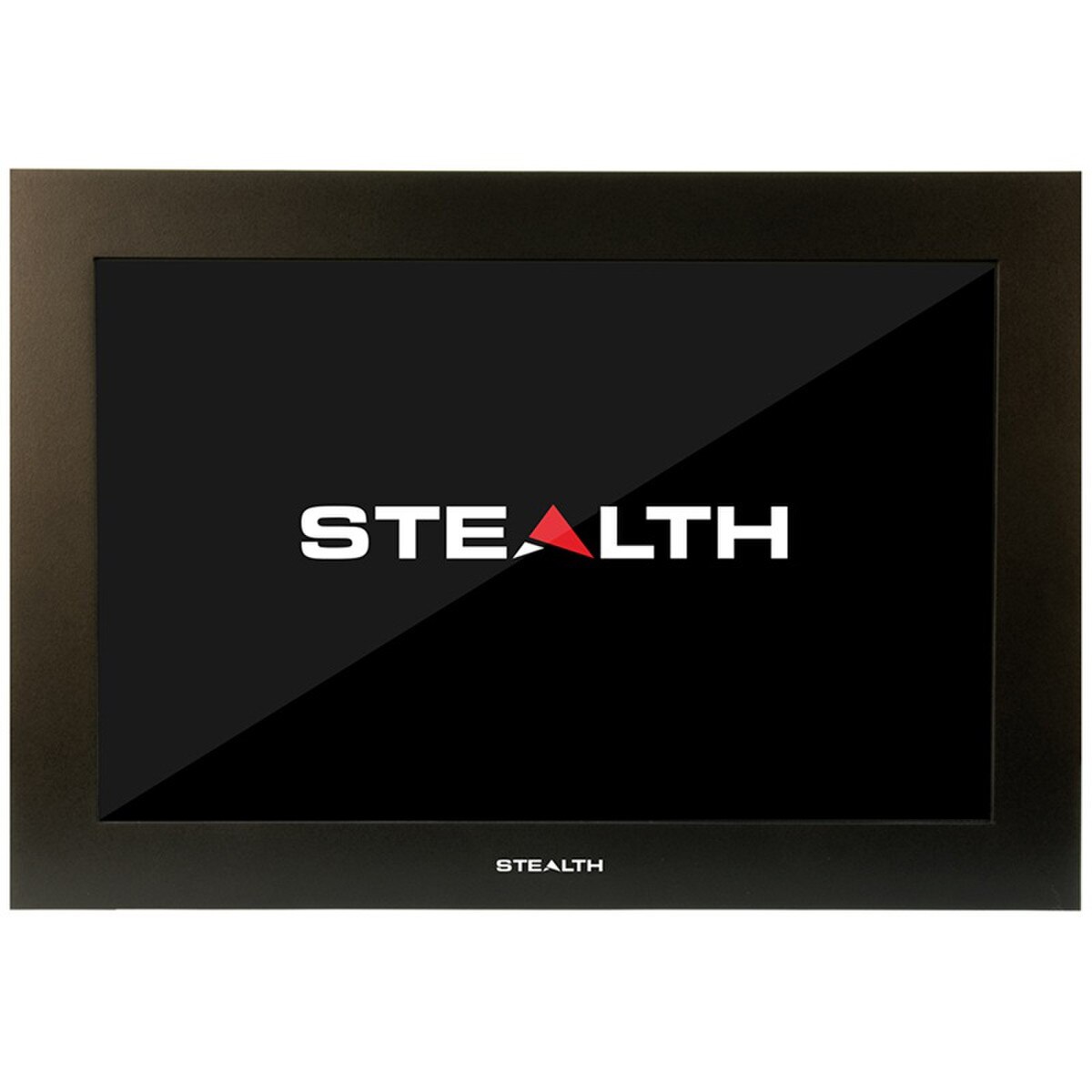

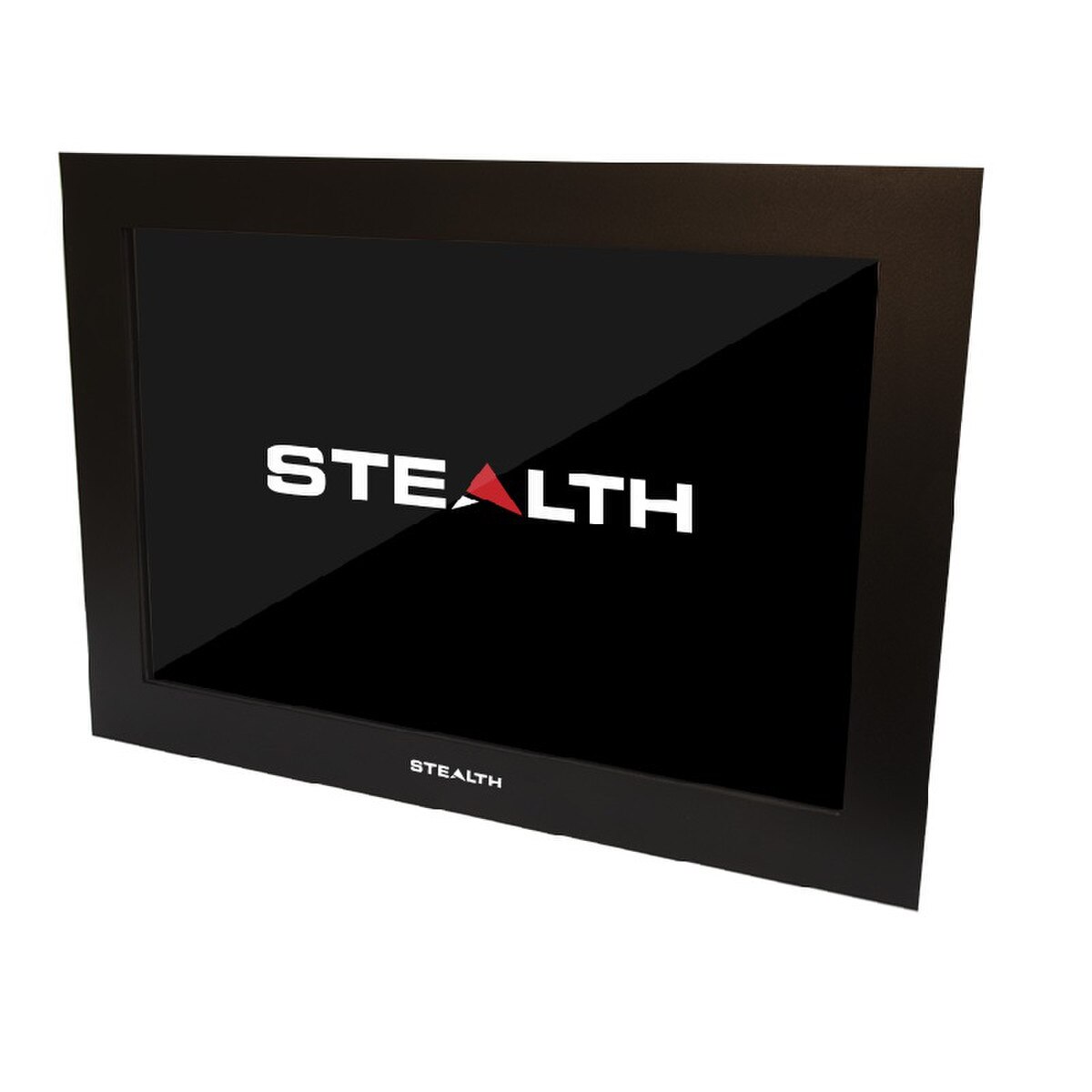

Model: SV-2410W-PM-RT, 24“ Panel Mount, Resistive TouchScreen LCD Display.
- 24” Diagonal TFT Active Matrix Display c/w LED Backlighting- 1920 x 1200 Maximum Resolution
- 16:10 Widescreen
- 1000:1 Contrast Ratio- 300 Nit Brightness
- NEMA 4x Steel Panel Mount Front Bezel
- Resistive Touchscreen c/w DB9 (Serial) and USB Interface

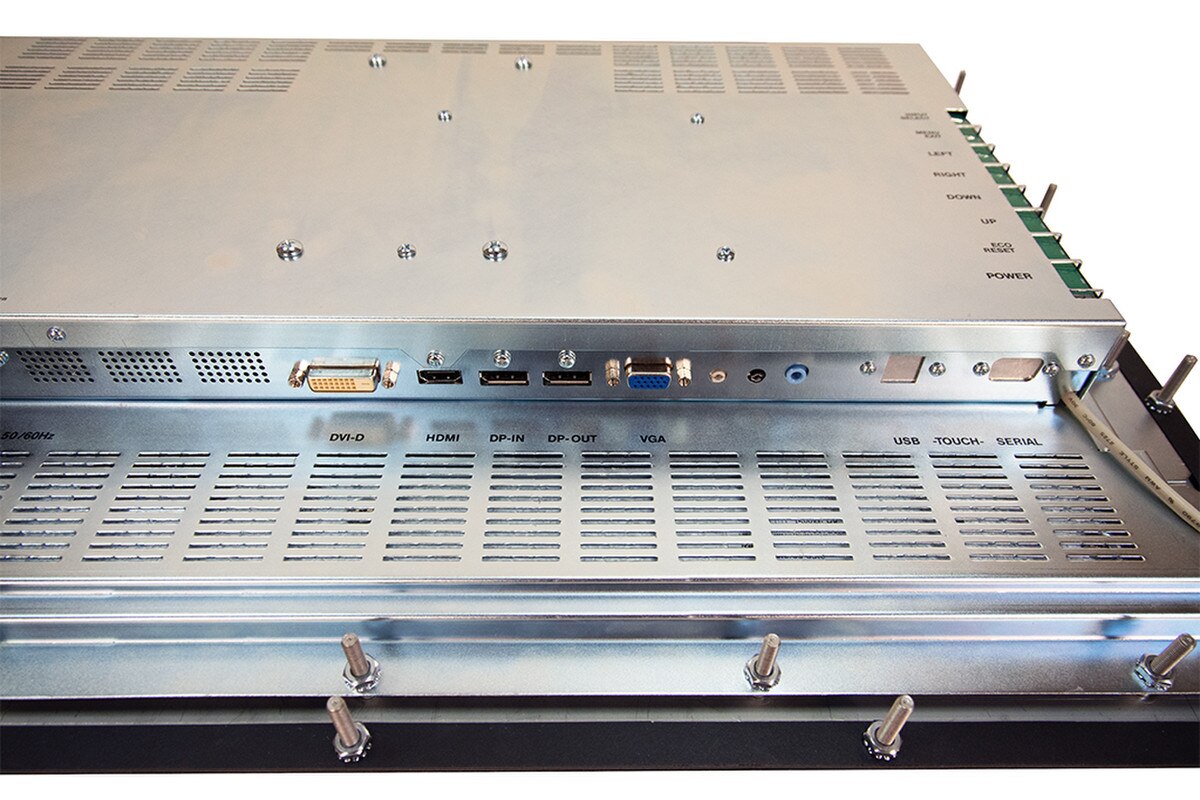

- HDMI, DisplayPort (DP), HD15 / VGA Analog and DVI-D Inputs

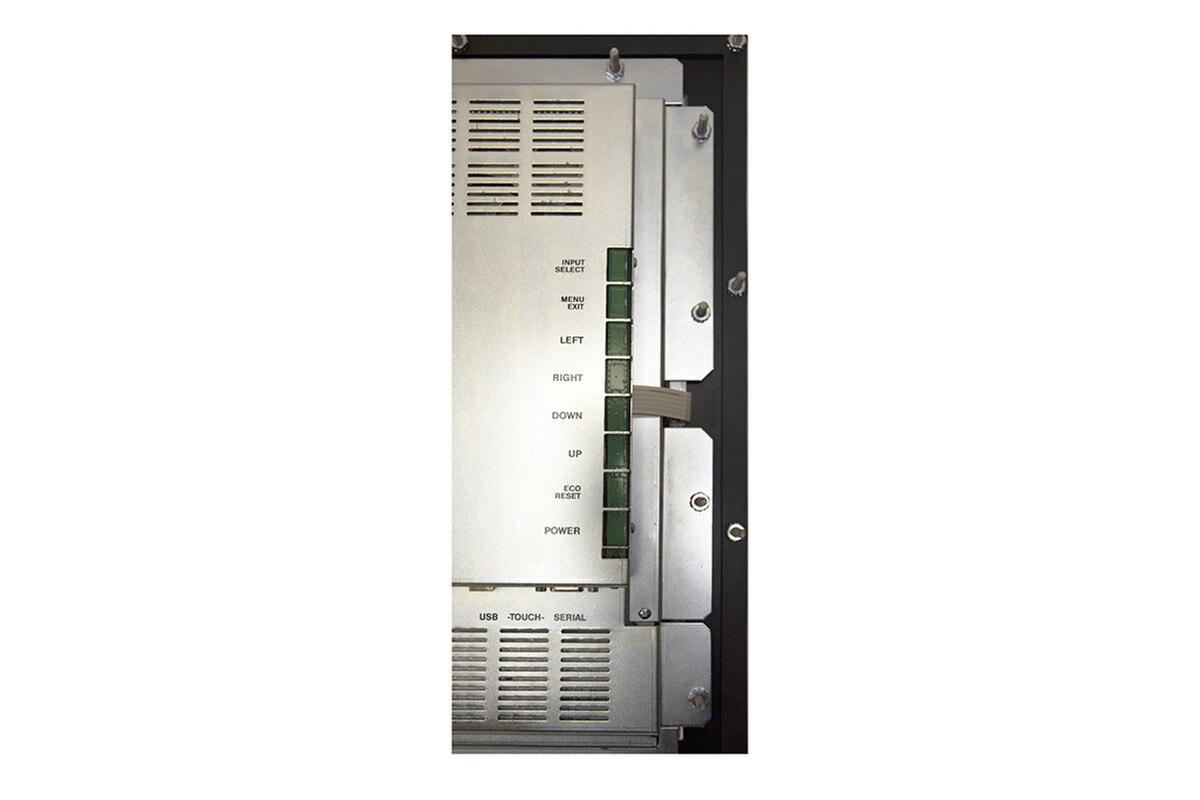

- Rear-Mounted Control Panel with On-Screen Display
- Integrated 120/230V AC Power Supply
- cULus Listed
- Dimensions: 24.5“W x 16.75”H x 2.8“D
- 5 Year Warranty
[{"System":{"Processors":[],"Chipset":"","Memory":[],"Hardware Monitor":[],"Key Switch":[],"Cable":[],"TPM Module":""}},{"Display":{"Display":["24.0\" (Diagonal)","300 cd/m2 typical at center (300 Nits)","Viewable Image Size - Horizontal: 20.41\" (518mm), Vertical: 12.76\" (324mm)"],"Aspect Ratio":"16:10","Contrast Ratio":["1000:1 (typical)"],"Frequency":["Horizontal: 31.5 kHz – 95 kHz","Vertical: 56 Hz – 75 Hz"],"Native Resolution":"1920 x 1200 (Auto sync from 640 x 480 to 1920 x 1200)","Response Time":"5ms (Typical)","Pixel Pitch":"0.27mm x 0.27mm","Controls":["Brightness, Contrast, Auto Adjust, Image Position, Image Adjust, Color Adjust, Display Mode, Language Select, OSM Lockout, OSM Time-out (OSD)","Left (-), Right (+), Up, Down, Auto Adjustment, Brightness Hot key, OK, Power ON/OFF (Rear mounted)"],"Touchscreen":"Resistive Touch Screen with USB 2.0 and RS232 Interface","Video":[]}},{"Storage":{"Internal Storage":[],"Drive Bays":[],"Removable Storage":[],"Optical Drives":[]}},{"Input / Output":{"Ports":[],"Video Input":["1x DisplayPort","1x DisplayPort Multi-Stream Transport (MST) port (Clone or Extended Desktop)","1x DVI Compliant Digital HDCP (DVI-D)","1x HDMI","1x VGA / HD-15"],"Networking":[],"Communications":[],"Audio":[]}},{"Expansion":{"Internal Expansion":[],"Expansion Slots":[]}},{"Operating Systems":{"Operating Systems":[]}},{"Power":{"Power":["AC Input: 120–240V AC, 50/60Hz","Power Consumption: 29W (typical)"]}},{"Environmental":{"Environmental":["NEMA 4 / IP65 Front Panel","Operating Altitude: 16,000 feet (5,000m)","Operating Humidity: 20% – 80%","Operating Temperature: +5C – +35C (+41F – +95F)","Storage Altitude: 0 – 40,000 Feet (0 – 12,000m)","Storage Humidity: 10% – 85%, non-condensing","Storage Temperature: -10C – +60C (+14F – +140F)"]}},{"Compliance":{"Approvals":["CE","cULus Listed, UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07","FCC","RoHS"],"Compliance Certification":[]}},{"Physical":{"Chassis Description":[],"Housing":[],"Bezel Type":["Black Baked Enamel (Standard)","Panel Mount"],"Front Panel":[],"Rear Panel":[],"Cooling Fans":[],"Mounting":[],"Built-in Keyboard/Mouse":[],"Keyboard":"","Backlighting Illuminati":[],"Compliance-Certification":[],"Dimensions":["(W-D-H) 24.5\" x 2.8\" x 16.75\" (622.3mm x 425.5mm x 71.1mm)"],"Weight":["20 Pounds (9.07Kg)"]}},{"General":{"Compatibility":[],"Included with System":[],"Options":[],"WatchDog Timer":[],"Warranty":["3 Year Parts and Labor"],"Disclaimer":"Note: Specifications are subject to change without notice."}}]
