SR-4500B-000113
* Product images are for illustration purposes only and may not be an exact representation of the item

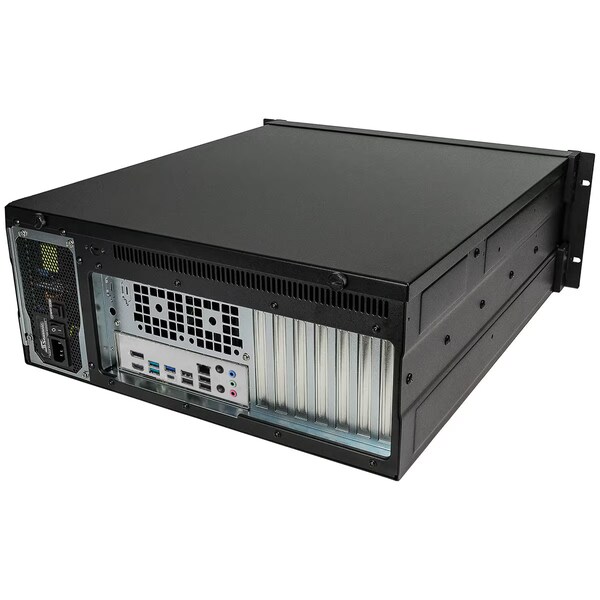

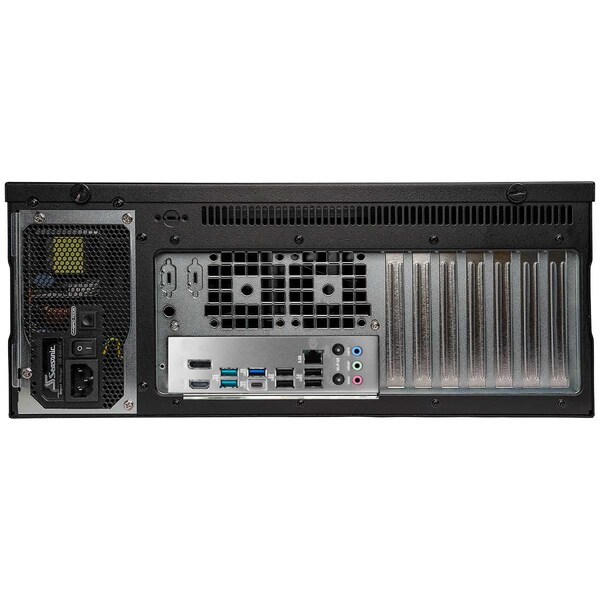

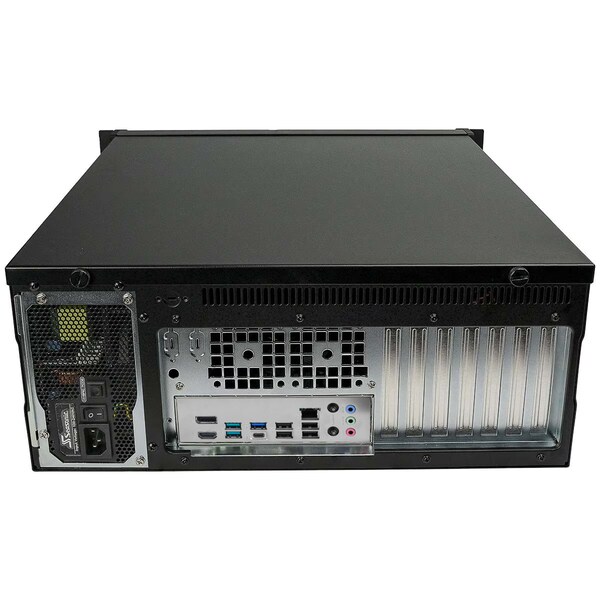

The Stealth 4U Rack Mount PC/Server, built on the ASUS PRIME B860-PLUS WIFI CSM, supports Intel® Core™ Ultra (Series 2) processors in a 19", 4U High Steel Chassis. Designed for performance, expansion, and reliability in industrial and enterprise environments.
Key Benefits:
- Intel® Core™ Ultra (Series 2) processor support
- Up to 256GB DDR5 memory, 28TB storage
- Wi-Fi 6E, 2.5GbE LAN, modern USB & display ports
- Up to 5x PCIe expansion slots
- Rugged 19", 4U High Steel Chassis
Applications:
Industrial Automation • AI & Edge Computing • Data Acquisition • Security & Surveillance • Enterprise Server Solutions
[{"System":{"Processors":["Support Intel® Core™ Ultra Processors (Series 2) , LGA1851"],"Chipset":"Intel® B860","Memory":["4x DDR5 Memory Sockets supporting up to 256GB RAM / Memory"],"Hardware Monitor":[],"Key Switch":[],"Cable":[],"TPM Module":"Optional TPM 2.0 (Trusted Platform Module), provides increased hardware security."}},{"Display":{"Display":[],"Aspect Ratio":"","Contrast Ratio":[],"Frequency":[],"Native Resolution":"","Response Time":"","Pixel Pitch":"","Controls":[],"Touchscreen":"","Video":["Dual Display Support: 1x HDMI 2.1 (4k 60Hz), 1x DisplayPort 1.4 (4k 60Hz)"]}},{"Storage":{"Internal Storage":[],"Drive Bays":["1x 3.5\" Open Drive Bay","3x 5.25\" Open Drive Bay","Shock Mounted Drive Cage"],"Removable Storage":["Optional DVDRW/CDRW/Blu-Ray Burner Optical Drive (uses 1x 5.25\" Bay)","Optional Removable drive bay with Key locking (uses 5.25\" expansion bay)"],"Optical Drives":[]}},{"Input / Output":{"Ports":["1x DisplayPort","1x HDMI","1x RJ45 2.5Gb Ethernet port","1x USB 3.2 Gen 1 Port 5 Gbps (Type-A)","1x USB 3.2 Gen 2x2 Port 20 Gbps (Type-C with DP Alt mode)","2x USB 3.0 Ports (Front Mounted)","2x USB 3.2 Gen 2 Ports 10 Gbps (Type-A)","3x Audio Jacks (Input, Output and MIC)","4x USB 2.0 Ports (Rear Mounted)"],"Video Input":[],"Networking":["Onboard Realtek 2.5Gb Ethernet RJ-45","Optional support for Fiber, 10GB, Wireless and more"],"Communications":["Built-in Support for Dual Channel Wi-Fi 6E (2.4/5/6GHz)* and Bluetooth® v5.3**"],"Audio":["Realtek® 7.1 Surround Sound High Definition Audio CODEC"]}},{"Expansion":{"Internal Expansion":[],"Expansion Slots":["1x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)","1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 4.0 x 4 mode)","1x PCIe 4.0 x16 slot (max at x4 mode)","1x PCIe 5.0 x16 slot","3x PCIe 4.0 x16 slot (Support x1 mode)"]}},{"Operating Systems":{"Operating Systems":["Please contact us directly for any special requirements","Windows 10 (64-bit)","Windows 11 (64-bit)","Windows Server 2022"]}},{"Power":{"Power":["100–240V AC, 50/60Hz, 850W Power Supply (Standard)","Meets 80PLUS Gold","Optional 12, 24, 48, 125 and more DC input available","Optional Redundant Power Supplies"]}},{"Environmental":{"Environmental":["Operating Temperature: 0C – +45C (+32F – +113F)"]}},{"Compliance":{"Approvals":[],"Compliance Certification":[]}},{"Physical":{"Chassis Description":[],"Housing":[],"Bezel Type":[],"Front Panel":[],"Rear Panel":[],"Cooling Fans":["Dual front intake Cooling Fans","Full-length latching/locking door","Removable Front Intake Filter"],"Mounting":[],"Built-in Keyboard/Mouse":[],"Keyboard":"","Backlighting Illuminati":[],"Compliance-Certification":[],"Dimensions":["(W-D-H) 19.0\" x 20.0\" x 7.0\" (482mm x 510mm x 178mm)"],"Weight":["Approx. 40 lbs (18.1 kg), depending on configuration"]}},{"General":{"Compatibility":[],"Included with System":[],"Options":[],"WatchDog Timer":[],"Warranty":["1 Year Extended Warranty available (see Configurator/Price List)","2 Year Extended Warranty available (see Configurator/Price List)","3 Year Limited Warranty, Standard"],"Disclaimer":"Note: Specifications are subject to change without notice."}}]
