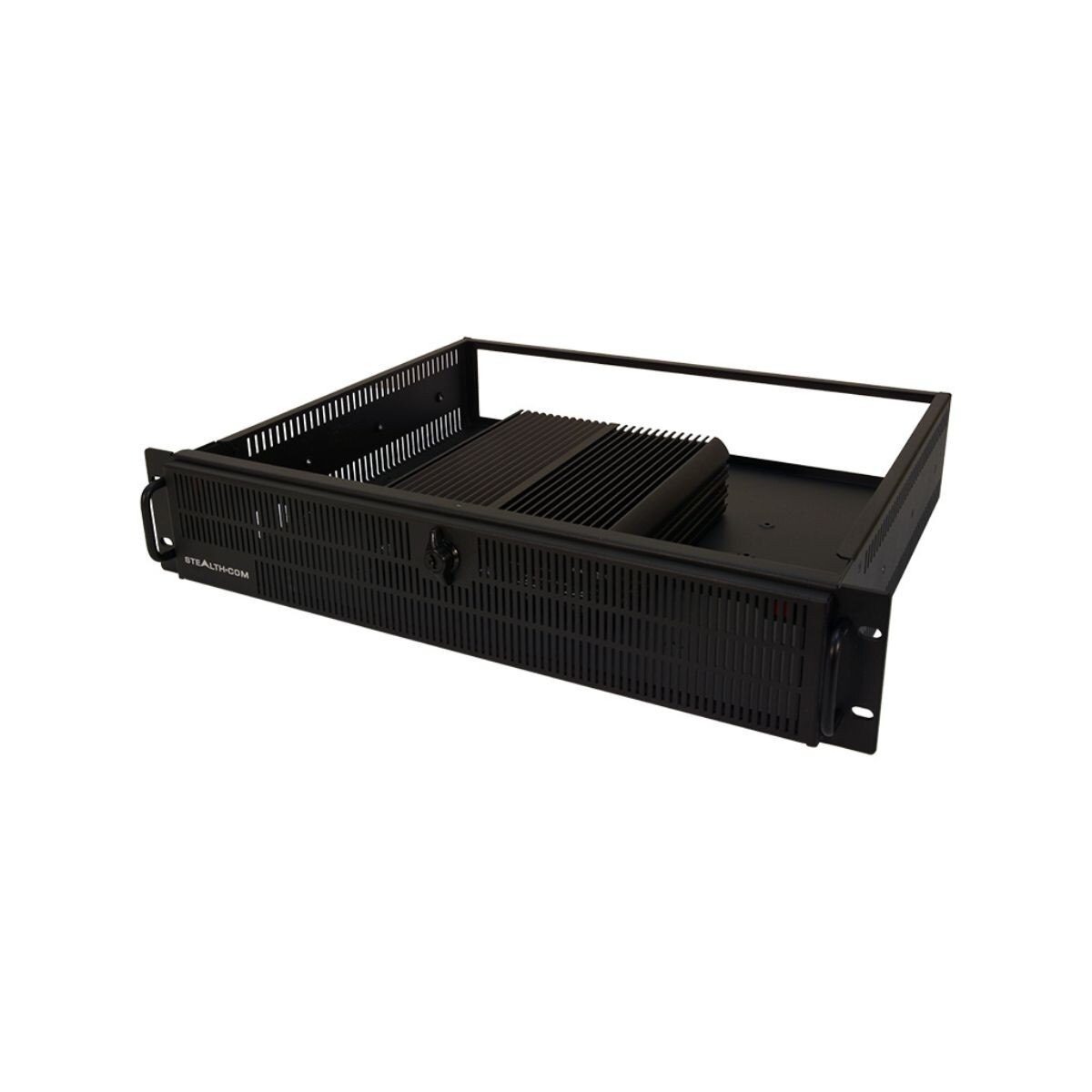

SR 28401
* Product images are for illustration purposes only and may not be an exact representation of the item
A Powerful Fanless Rack Solution
- Fanless, Noise Free Computing
- Space Saving 2U, 3.5″ Rack Server/PC
- Powerful Intel’s® 10th Generation Core i5, i7 & i9 mobile processors
- 8x DIO (Digital input/output) ports
- Single Removable Front Drive, Single Internal Drive
- Wide Range 9-48V DC Input, ideal for mobile/field
- Built-in 2.5Gb LAN, USB 3.2, Audio, Serial, Video (Display port x 3)
- 4K Resolution, Ultra HD, Triple Display support
- Single/Dual channel CAN Bus (Optional)
- Solid State Drives (SSD) Standard
- Windows 10, 11 and Linux
[{"System":{"Processors":["Intel® Core™ i5-10500TE (6 Cores / 12 Threads, up to 3.7Ghz)","Intel® Core™ i7-10700TE (8 Cores / 16 Threads, up to 4.4Ghz)","Intel® Core™ i9-10900TE (10 Cores / 20 Threads, up to 4.5Ghz)","Supporting Intel® Core™ 10th Generation Processors"],"Chipset":"Intel® Q470E Express Chipset","Memory":["2x DDR4 Memory Sockets Supporting up to 64GB of RAM / Memory"],"Hardware Monitor":["Processor temperature","Voltage"],"Key Switch":[],"Cable":[],"TPM Module":"TPM 2.0 (Trusted Platform Module), provides increased hardware security."}},{"Display":{"Display":[],"Aspect Ratio":"","Contrast Ratio":[],"Frequency":[],"Native Resolution":"","Response Time":"","Pixel Pitch":"","Controls":[],"Touchscreen":"","Video":["Intel® UHD Graphics 630","Supports 4K Ultra HD Resolution as well as 1080p HD Video","Triple Display Support: 3x DisplayPort (1x DP Port Co-Layout with HDMI Connector)"]}},{"Storage":{"Internal Storage":["480GB 3D NAND SSD (Solid State Drive) standard (SATA)","Optional Onboard RAID configurations (0, 1), requires multiple drives","Options of up to 8TB SSD internal storage.","Up to 2x 2.5\" SSD supported total (1 x internal, 1 x removable)"],"Drive Bays":[],"Removable Storage":[],"Optical Drives":[]}},{"Input / Output":{"Ports":[],"Video Input":[],"Networking":["1x onboard 2.5Gb Ethernet controller, RJ-45 interface, PXE and WoL Supported","1x onboard Gigabit Ethernet controller, RJ-45 interface, PXE and WoL Supported","LAN1: Intel I219, LAN2: Intel I225","Optional 2x 10G RJ45 Ports with Intel X710 on Front Panel","Optional 4x 10/100/1000 RJ45 POE Ports with Intel I350 on Front Panel","Optional 802.11 b/g/n/ac Dual Band (2.4Ghz / 5Ghz) Wireless Networking and Bluetooth 4.0, Realtek® RTL8821AE via internal Mini-PCIe"],"Communications":["2x External SIM card sockets standard for 4G wireless connectivity","5x RS232 COM ports (standard)","Optional 4x USB 3.0 Ports on Front Panel","Single/Dual channel CAN Bus (optional)"],"Audio":["Integrated Realtek High Definition Audio CODEC ALC888S"]}},{"Expansion":{"Internal Expansion":["1x Internal full sized Mini-PCIe expansion slot","1x M.2 E-key, 2230"],"Expansion Slots":[]}},{"Operating Systems":{"Operating Systems":["Please contact us directly for any special requirements","Ubuntu Linux","Windows 10 (64-bit)","Windows 11 (64-bit)","Windows Server 2022"]}},{"Power":{"Power":["Includes External AC Adapter, Input 100–240V AC @ 1.4A 50-60Hz","Input: 9–48V DC","Power Mode: AT & ATX","Power Protection: OVP (Over Voltage Protection), OCP (Over Current Protection) & Reverse Protection","Rear Locking 3-Pin Power Jack (includes Ignition / Car PC function)"]}},{"Environmental":{"Environmental":["Humidity: 10% – 95%","Operating Temperature: 0C – +40C (+32F – +104F)","Shock: 50G, half sine, 11ms (with SSD)","Vibration: 5 – 500Hz, 5G RMS, 0.5 hr/axis"]}},{"Compliance":{"Approvals":["CE","FCC","RoHS"],"Compliance Certification":[]}},{"Physical":{"Chassis Description":["2U, 3.5\" High, 19\" EIA rackmount","Fanless Design","Locking / Latching Secure Front door","Solid Steel Chassis, Black Color"],"Housing":[],"Bezel Type":[],"Front Panel":["1x Removable SSD Bay","1x Universal Bay (various I/O Options)","2x RS232 COM ports","2x SIM Communications Slots (4G / LTE)","4x USB 3.2 Gen 2 Ports","AT / ATX Switch","Clear CMOS","Headphone/Audio Line-Out Jack","PC/Car Mode Select Switch","Power-on button","Remote Power Connector"],"Rear Panel":["1x 2.5Gb RJ45 Network connection","1x DP/HDMI video connector","1x Gigabit RJ45 Network connection","2x DisplayPort Video connectors","2x USB 3.2 Gen 2 Ports","3x RS232 COM ports","8x DIO (Digital input/output) with Isolation","9 – 48V DC Connector","Car Mode Delay Time Setting Switch"],"Cooling Fans":[],"Mounting":[],"Built-in Keyboard/Mouse":[],"Keyboard":"","Backlighting Illuminati":[],"Compliance-Certification":[],"Dimensions":["(W-D-H) 19.0\" x 13.94\" x 3.468\" (482.6 x 354 x 88 mm)"],"Weight":["35 lbs (15.88 kg), depending on configuration"]}},{"General":{"Compatibility":[],"Included with System":["100-240V AC Adapter","North American Power Cord"],"Options":["External USB DVD+-RW/CD-RW Drive","Optional 2x 10Gb Ports on Front Panel","Optional 4x 10/100/1000 RJ45 POE Ports on Front Panel","Optional 4x USB 3.0 Ports on Front Panel","Optional 802.11 b/g/n/ac Dual Band (2.4Ghz / 5Ghz) Wireless Networking and Bluetooth, Intel® AC7260 via internal Mini-PCIe"],"WatchDog Timer":["System Reset"],"Warranty":["1 Year Extended Warranty available (see Configurator/Price List)","2 Year limited Warranty, Standard"],"Disclaimer":"Note: Specifications are subject to change without notice."}}]
