SR-2501
* Product images are for illustration purposes only and may not be an exact representation of the item

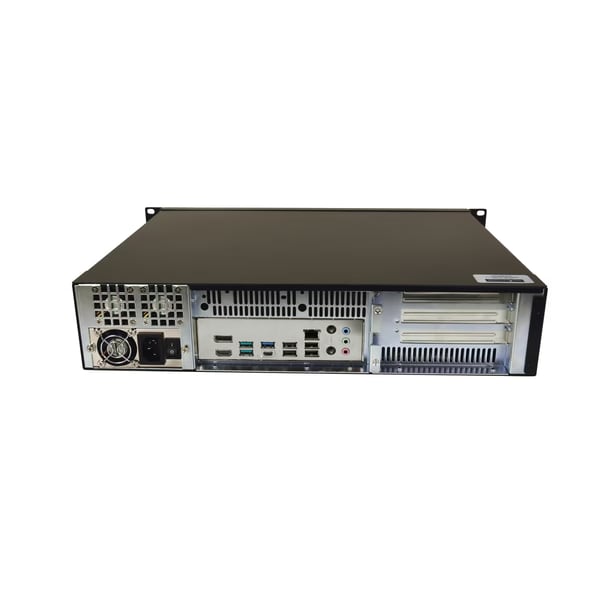

The Stealth 2U Rack Mount PC/Server, built on the ASUS PRIME B860-PLUS WIFI CSM, supports Intel® Core™ Ultra (Series 2) processors in a compact 13.9" deep chassis. Designed for performance, expansion, and reliability in industrial and enterprise environments.
Key Benefits:
- Intel® Core™ Ultra (Series 2) processor support
- Up to 192GB DDR5 memory, 28TB storage
- Wi-Fi 6E, 2.5GbE LAN, modern USB & display ports
- Up to 3x PCIe expansion slots
- Rugged 2U steel chassis, only 13.9" deep
Applications:
Industrial Automation • AI & Edge Computing • Data Acquisition • Security & Surveillance • Enterprise Server Solutions
[{"System":{"Processors":["Support Intel® Core™ Ultra Processors (Series 2) , LGA1851"],"Chipset":"Intel® B860","Memory":["4x DDR5 Memory Sockets supporting up to 256GB RAM / Memory"],"Hardware Monitor":[],"Key Switch":[],"Cable":[],"TPM Module":"Optional TPM 2.0 (Trusted Platform Module), provides increased hardware security."}},{"Display":{"Display":[],"Aspect Ratio":"","Contrast Ratio":[],"Frequency":[],"Native Resolution":"","Response Time":"","Pixel Pitch":"","Controls":[],"Touchscreen":"","Video":["Dual Display Support: 1x HDMI 2.1 (4k 60Hz), 1x DisplayPort 1.4 (4k 60Hz)"]}},{"Storage":{"Internal Storage":[],"Drive Bays":["1x 5.25\" Open Drive Bay","2x 3.5\" Internal Drive Bay","Onboard RAID Supported"],"Removable Storage":["Optional DVDRW/CDRW/Blu-Ray Burner Optical Drive (uses 1x 5.25\" Bay)","Optional Removable drive bay with Key locking (uses 5.25\" expansion bay)"],"Optical Drives":[]}},{"Input / Output":{"Ports":["1x DisplayPort","1x HDMI","1x RJ45 2.5Gb Ethernet port","1x USB 3.2 Gen 1 Port 5 Gbps (Type-A)","1x USB 3.2 Gen 2x2 Port 20 Gbps (Type-C with DP Alt mode)","2x USB 3.0 Ports (Front Mounted)","2x USB 3.2 Gen 2 Ports 10 Gbps (Type-A)","3x Audio Jacks (Input, Output and MIC)","4x USB 2.0 Ports (Rear Mounted)"],"Video Input":[],"Networking":["Onboard Realtek 2.5Gb Ethernet RJ-45","Optional support for Fiber, 10GB, Wireless and more"],"Communications":["Built-in Support for Dual Channel Wi-Fi 6E (2.4/5/6GHz)* and Bluetooth® v5.3**"],"Audio":["Realtek® 7.1 Surround Sound High Definition Audio CODEC"]}},{"Expansion":{"Internal Expansion":[],"Expansion Slots":["1x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)","1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 4.0 x 4 mode)","1x PCIe 3.0 x8 slot (Supports x1 mode)","1x PCIe 3.0 x8 slot (Supports x4 mode)","1x PCIe 4.0 x16 slot"]}},{"Operating Systems":{"Operating Systems":["Please contact us directly for any special requirements","Windows 10 (64-bit)","Windows 11 (64-bit)","Windows Server 2022"]}},{"Power":{"Power":["100–240V AC, 520W ATX Power Supply"]}},{"Environmental":{"Environmental":["Operating Temperature: 0C – +45C (+32F – +113F)"]}},{"Compliance":{"Approvals":[],"Compliance Certification":[]}},{"Physical":{"Chassis Description":[],"Housing":[],"Bezel Type":[],"Front Panel":[],"Rear Panel":[],"Cooling Fans":["1x Intake Cooling Fan","2x Exhaust fans, plus Power Supply Fan"],"Mounting":[],"Built-in Keyboard/Mouse":[],"Keyboard":"","Backlighting Illuminati":[],"Compliance-Certification":[],"Dimensions":["(W-D-H) 19.0\" x 13.9\" x 3.5\" (483mm x 355mm x 89mm)"],"Weight":["Approx. 35 lbs (15.9 kg), depending on configuration"]}},{"General":{"Compatibility":[],"Included with System":[],"Options":[],"WatchDog Timer":[],"Warranty":["1 Year Extended Warranty available (see Configurator/Price List)","2 Year Extended Warranty available (see Configurator/Price List)","3 Year Limited Warranty, Standard"],"Disclaimer":"Note: Specifications are subject to change without notice."}}]
