SAW-2400W-PCT-USB
* Product images are for illustration purposes only and may not be an exact representation of the item
Model: SAW-2400W-PCT-USB, 24” All Weather LCD Display (LCD DISPLAY)
- 24” Diagonal LCD Display with LED Backlighting
- Full HD 1920 x 1080 Native Resolution
- High brightness, 1000 Nits (Adjustable)
- NEMA 12, IP65 Front Panel
- Projected Capacitive Touch (Multi-Touch), with USB Interface

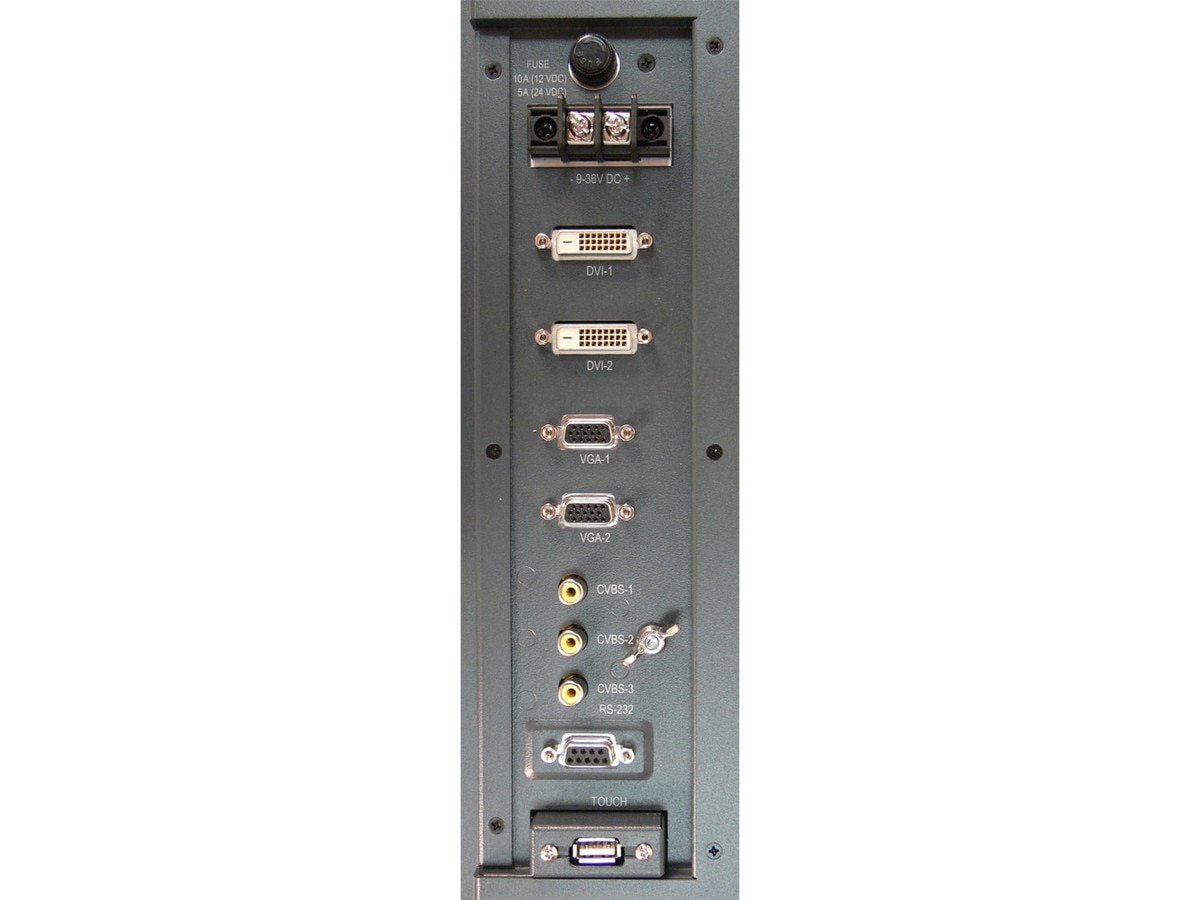

- Inputs: Analog VGA / HD-15 x (2), Digital DVI x (2), Composite x (3)
- Front-Mounted Control Buttons with On-Screen Display
- 9-36V DC Power Input to Monitor via Terminal Block
- Wide Temp Operation, -20C - +70C
- Supports Panel Mount (Flush Mount), VESA 100 or 75 mount
- Dimensions: 23.69" x 16.67" x 1.60" (601.68mm x 423.30mm x 40.6mm) [W x H x D]
- 1 Year Warranty
[{"System":{"Processors":[],"Chipset":"","Memory":[],"Hardware Monitor":[],"Key Switch":[],"Cable":[],"TPM Module":""}},{"Display":{"Display":["1000 cd/m2 typical at center (1000 Nits) (adjustable)","24.0\" (Diagonal)","Viewable Image Size - Horizontal: 20.91\" (531mm), Vertical: 11.76\" (299mm)"],"Aspect Ratio":"16:09","Contrast Ratio":["3000:1 (typical)"],"Frequency":[],"Native Resolution":"1920 x 1080 (Auto sync from 640 x 480 to 1920 x 1080)","Response Time":"25ms (Typical)","Pixel Pitch":"0.276mm x 0.276mm","Controls":["Brightness, Night Mode, Down, Menu, Up, Input, Power (Front mounted)"],"Touchscreen":"","Video":[]}},{"Storage":{"Internal Storage":[],"Drive Bays":[],"Removable Storage":[],"Optical Drives":[]}},{"Input / Output":{"Ports":[],"Video Input":["2x Analog VGA / HD-15","2x Digital DVI","3x Composite"],"Networking":[],"Communications":[],"Audio":[]}},{"Expansion":{"Internal Expansion":[],"Expansion Slots":[]}},{"Operating Systems":{"Operating Systems":[]}},{"Power":{"Power":["(Note: an AC/DC Power Adapter is optional)","9–36V DC Input via Terminal Block","Power Consumption: 50W typical"]}},{"Environmental":{"Environmental":["NEMA 4 / IP65 Front Panel","Storage Temperature: -20C – +60C (-4F – +140F)"]}},{"Compliance":{"Approvals":["Meets IEC 60945 BV Marine and IACS-E10","RoHS"],"Compliance Certification":[]}},{"Physical":{"Chassis Description":[],"Housing":[],"Bezel Type":[],"Front Panel":[],"Rear Panel":[],"Cooling Fans":[],"Mounting":["(Note: VESA mounting not available if external AC/DC power adapter is used)","Designed for Panel Mount (Flush Mount)","VESA Mount (75 x 75mm, 100 x 100mm)"],"Built-in Keyboard/Mouse":[],"Keyboard":"","Backlighting Illuminati":[],"Compliance-Certification":[],"Dimensions":["(W-D-H) 23.69\" x 1.60\" x 16.67\" (601.68mm x 40.6mm x 423.30mm)"],"Weight":["Unit Weight: 17.19 lbs (7.8 kg)"]}},{"General":{"Compatibility":[],"Included with System":[],"Options":[],"WatchDog Timer":[],"Warranty":["6 Months Parts & Labor"],"Disclaimer":""}}]
