LPC-970

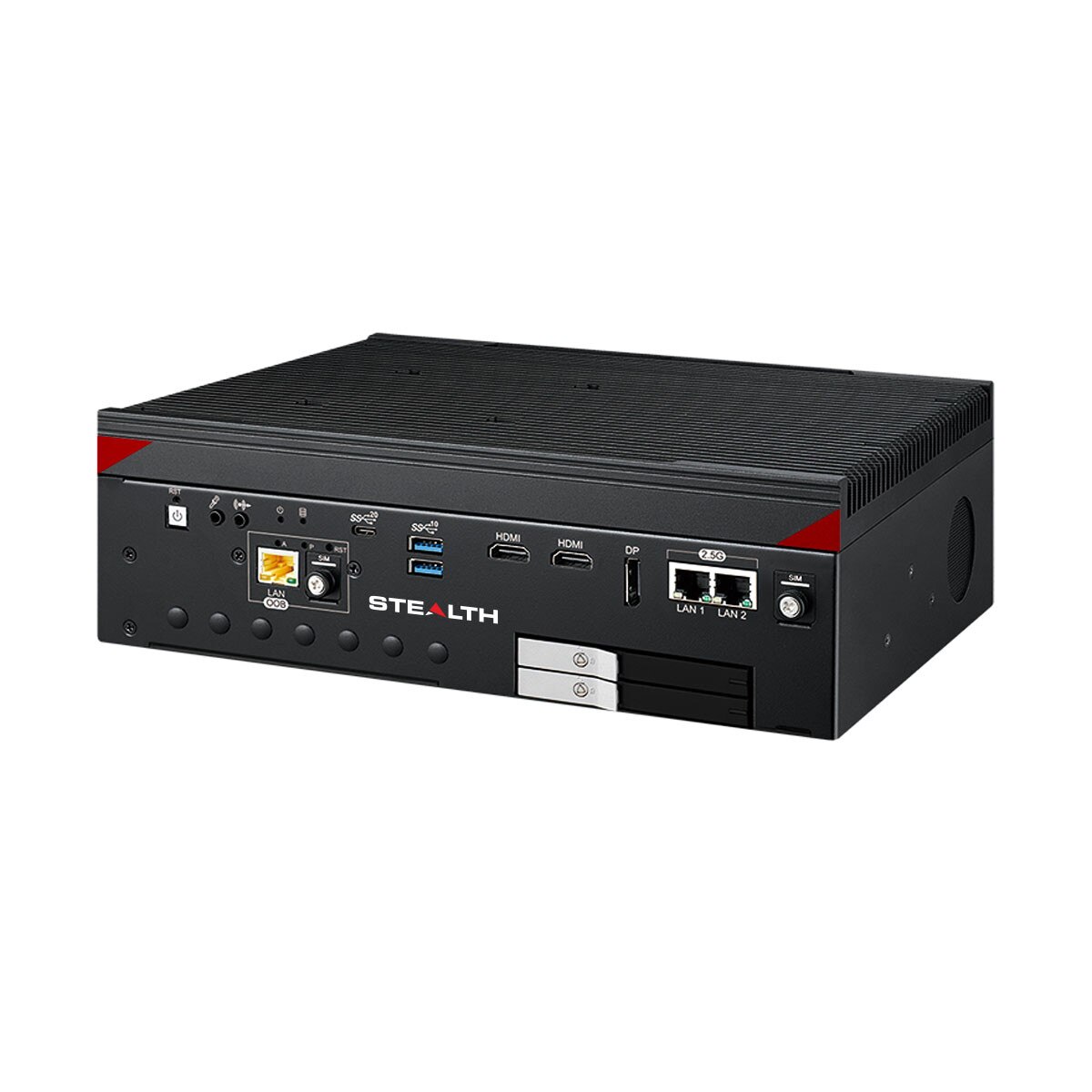

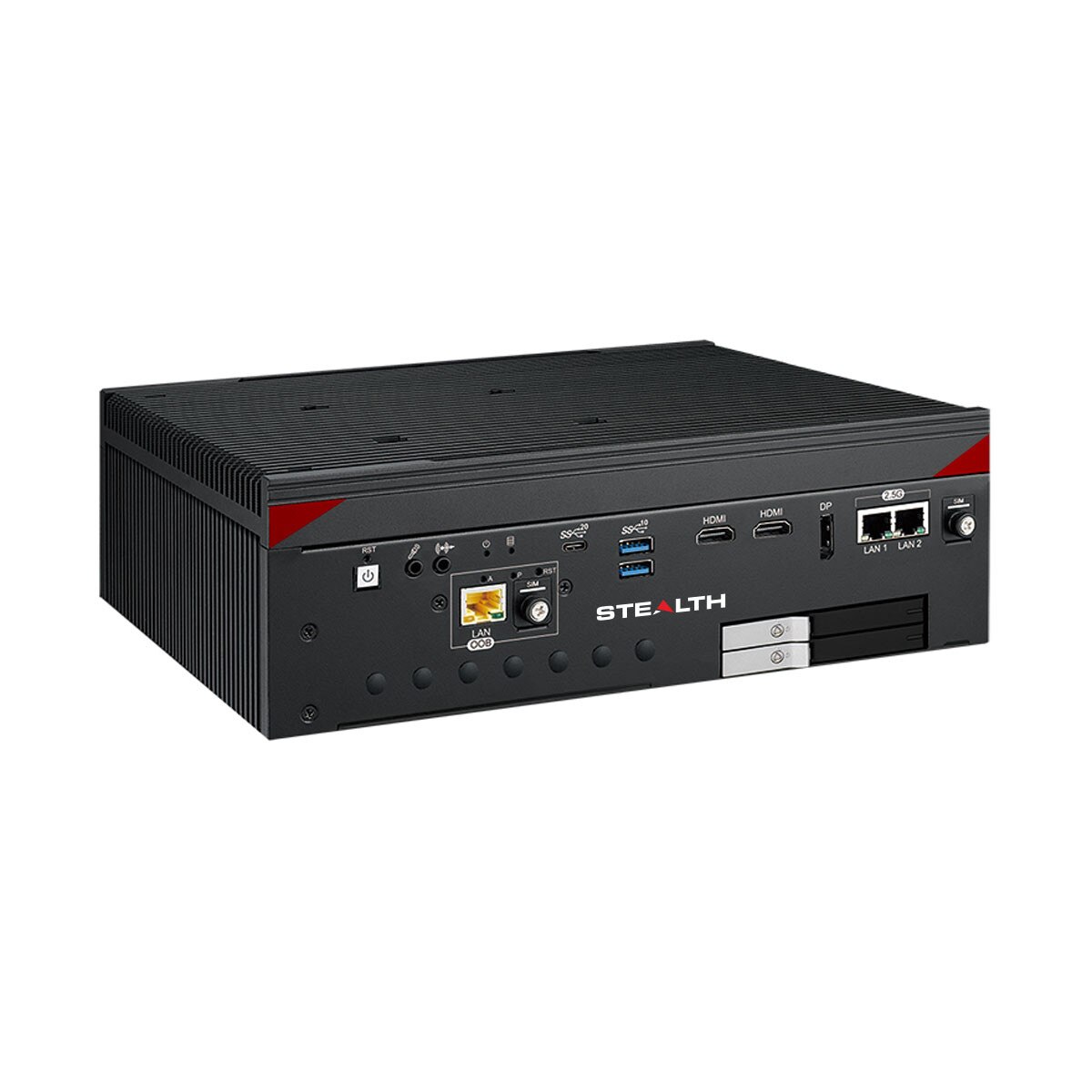

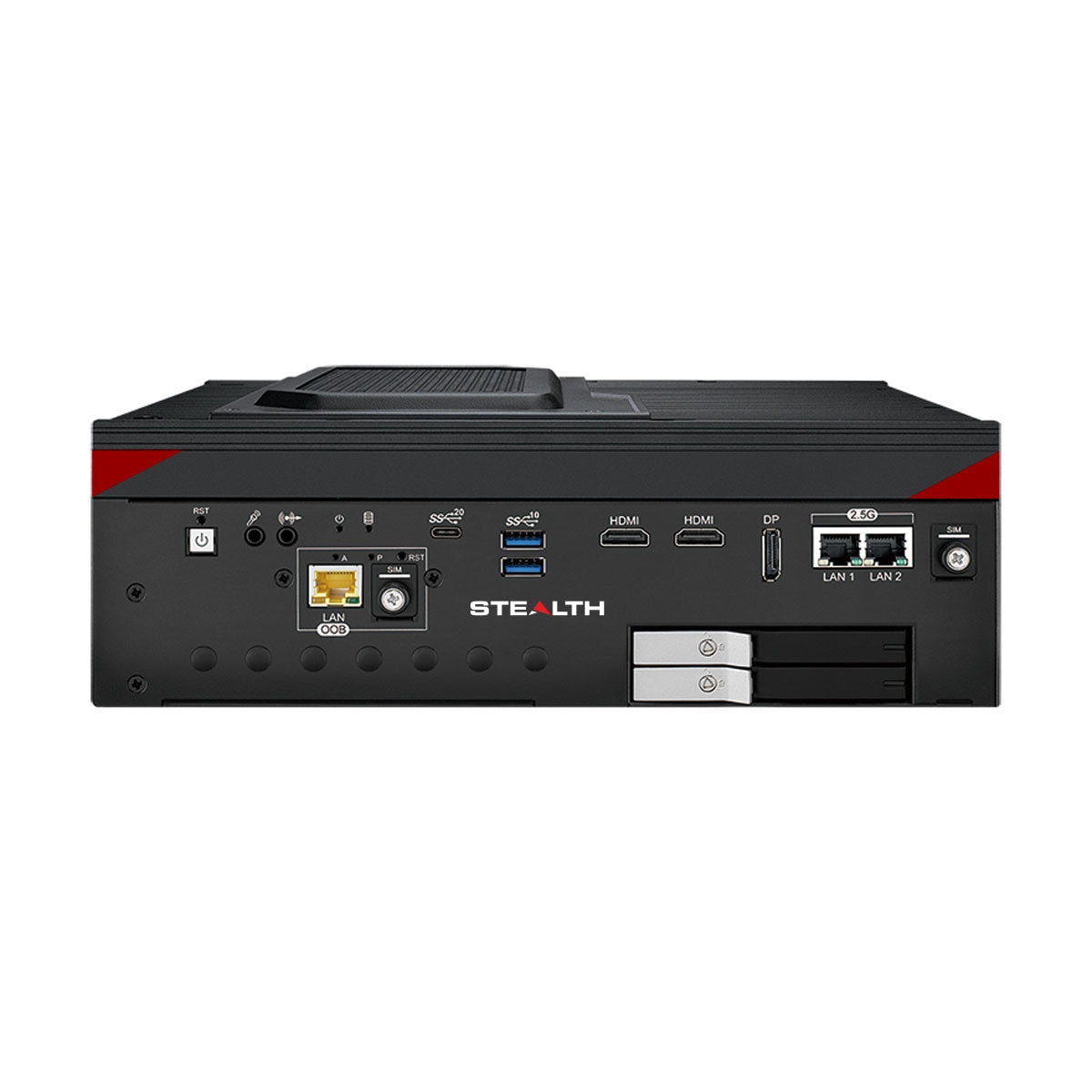

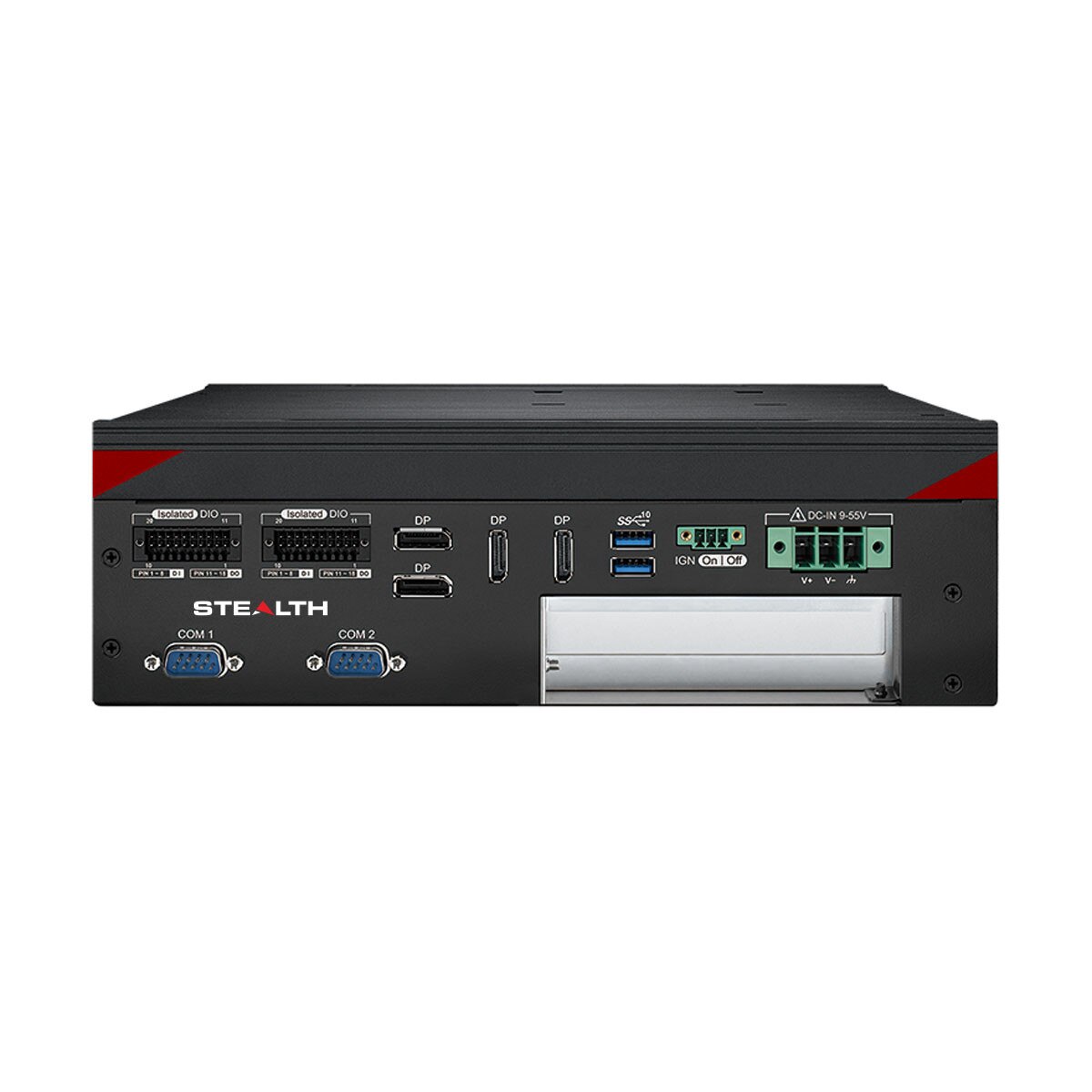

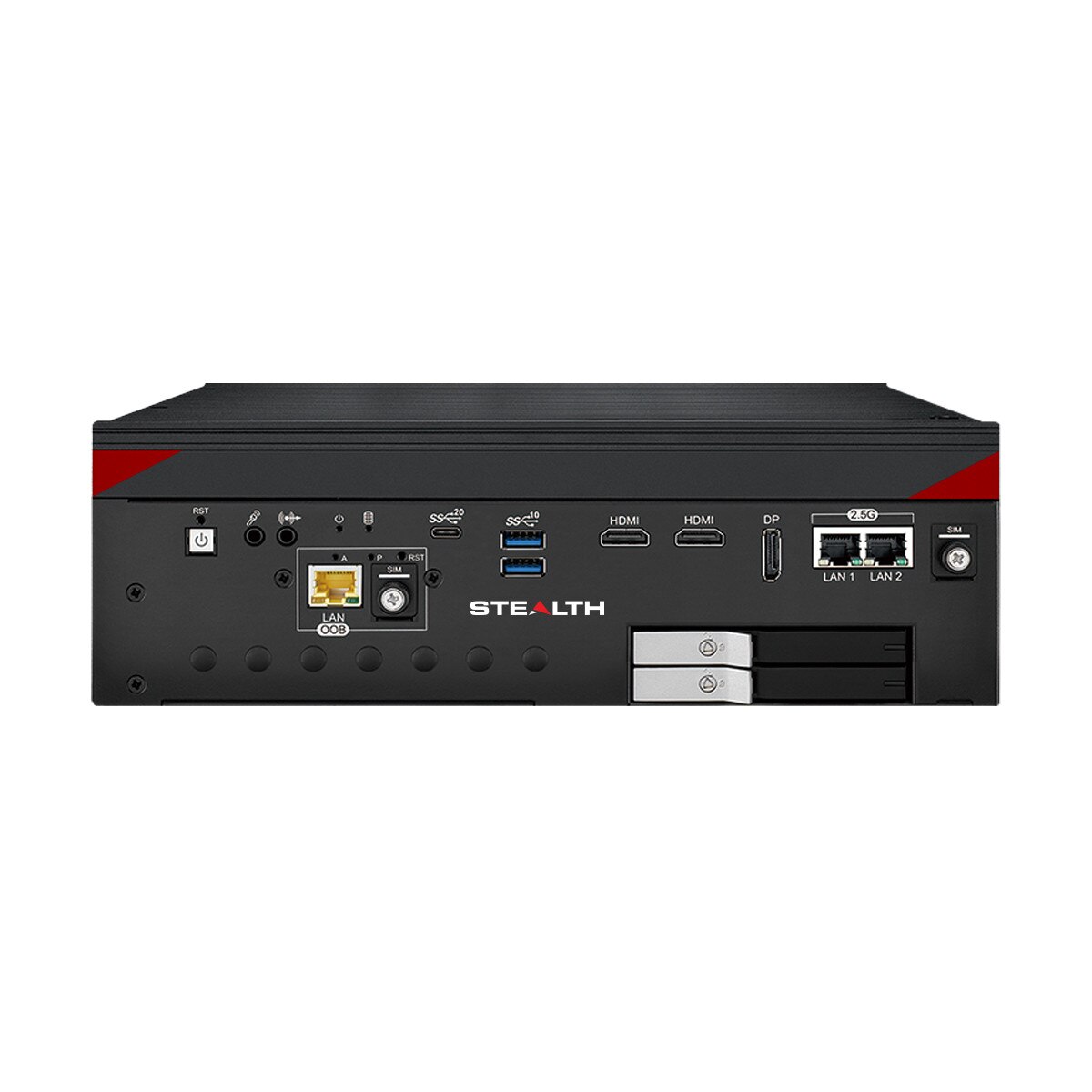

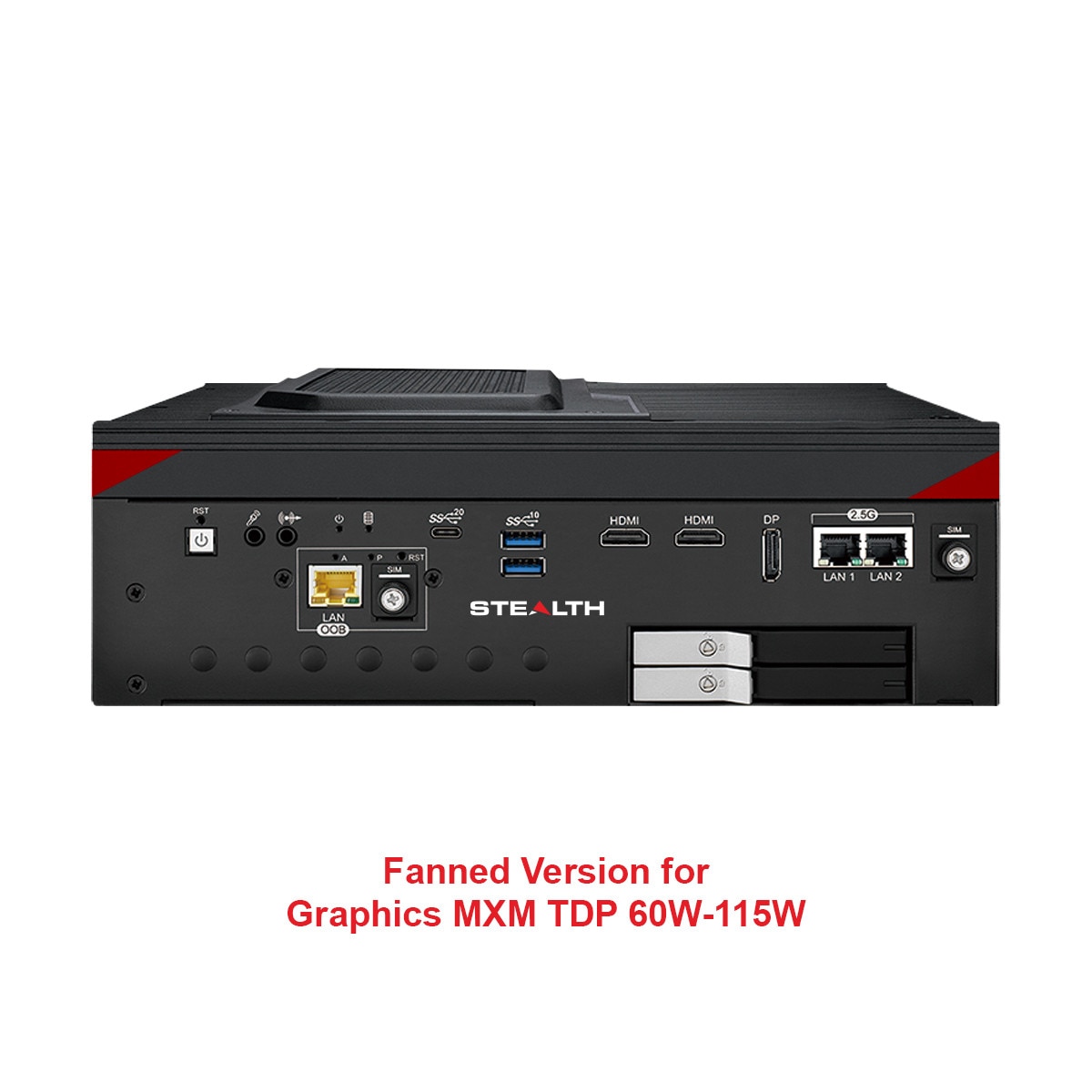

* Product images are for illustration purposes only and may not be an exact representation of the item
LPC-970 – High-Performance Fanless PC with Expandable Graphics
The LPC-970 delivers cutting-edge performance with Intel® 12th/14th Gen Core™ processors and DDR5 memory, paired with a rugged fanless design for reliable operation in demanding environments. Its exceptional multi-display capabilities (up to 7 displays), optional NVIDIA® Quadro T1000 graphics, and PCIe 4.0 expansion make it ideal for graphics-intensive and industrial computing applications.
Key Benefits:
-Advanced Intel® 12th/14th Gen Core™ i3/i5/i7/i9 processors with DDR5 memory (up to 64GB)
-Exceptional visual performance with up to 7 displays (8K/4K UHD support) and optional NVIDIA® Quadro T1000 graphics
-Wide 9–55V DC input with ignition control for versatile mobile and vehicle deployment
-Rugged fanless chassis with dual removable drive bays and PCIe 4.0 x16 expansion slot
-TPM 2.0 security, 32 DIO ports, and EN50155 railway compliance
Applications:
Digital signage, multi-display command centers, industrial automation, mobile computing, transportation systems, and graphics-intensive field applications.
[{"System":{"Processors":["Intel® Core™ i3-12100TE (4 Cores / 8 Threads, up to 4.3Ghz)","Intel® Core™ i5-12500TE (6 Cores / 12 Threads, up to 4.3Ghz)","Intel® Core™ i7-12700TE (12 Cores / 20 Threads, up to 4.6Ghz)","Intel® Core™ i9-12900TE (16 Cores / 24 Threads, up to 4.80GHz)","Supporting Intel®'s 14th Generation Core™ Processors"],"Chipset":"Intel® R680E","Memory":["2x DDR5 Memory Sockets supporting up to 64GB of RAM/Memory (Applicable with 12th Gen Processors)"],"Hardware Monitor":[],"Key Switch":[],"Cable":[],"TPM Module":"TPM 2.0 (Trusted Platform Module), provides increased hardware security."}},{"Display":{"Display":[],"Aspect Ratio":"","Contrast Ratio":[],"Frequency":[],"Native Resolution":"","Response Time":"","Pixel Pitch":"","Controls":[],"Touchscreen":"","Video":["Intel® UHD Graphics 770","NVIDIA® GeForce® Quadro T1000 providing 4x DisplayPorts","Supports 8K UHD and 4K UHD Resolution as well as 1080p HD Video","Up to 7 Display Support: 2x HDMI 2.1 (4096 x 2304, 60Hz), 5x DP (3840 x 2160, 60Hz)"]}},{"Storage":{"Internal Storage":["Options of up to 2TB SSD internal storage.","SATA III (6Gb/s and 3Gb/s) support","Up to 3x 2.5\" SSD supported total (1 x internal, 2 x removable)"],"Drive Bays":[],"Removable Storage":["2x Removable 2.5\" Drive Bays"],"Optical Drives":[]}},{"Input / Output":{"Ports":[],"Video Input":[],"Networking":["2x 2.5Gb LAN Ports, RJ45 (Intel I226)","OOB (Out-of Band) LAN, 10/100Mb Ethernet LAN, RJ45 Connector","Optional 801.11a/b/g/n/ac Dual Band (2.4GHz and 5GHz) + Bluetooth via M.2 2230 Slot (Realtek RTL8822CE)","PXE (Pre-Boot Execution Environment) Support","TSN (Time Sensitive Networking) Support","WoL (Wake On Lan) Support"],"Communications":["Optional M.2 4G/5G Modem with LTE antenna","Optional M.2 WiFi LAN 802.11 BT5.0"],"Audio":["Integrated Realtek® High Definition Audio CODEC ALC888S-VD","Realtek® 7.1 Surround Sound High Definition Audio CODEC"]}},{"Expansion":{"Internal Expansion":["1x M.2 Key B Socket Gen 4 (2280/3042/3052, PCIe/USB 3, default/SATA)","1x M.2 Key E Socket Gen 4 (2230, PCIe/USB)"],"Expansion Slots":["1x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode)","1x PCIe 4.0 x16 slot"]}},{"Operating Systems":{"Operating Systems":["Ubuntu Linux","Windows 10 (64-bit)","Windows 10 IoT Enterprise","Windows 11 (64-bit)","Windows 11 IoT Enterprise","Windows Server 2022"]}},{"Power":{"Power":["(Note: an AC/DC Power Adapter is optional)","16-mode Power Ignition Control","Input: 32V DC (9–55V DC)","Rear Locking 3-Pin Ignition Switch (12V or 24V)","Rear Locking 3-Pin power Jack ideal for mobile applications"]}},{"Environmental":{"Environmental":["Humidity: 5% – 95%","Non-Operating/Storage: 5% – 90%, non-condensing","Operating Temperature: -10C – +50C (+14F – +122F)","Shock: IEC 60068-2-27, SSD: 50G @ wallmount, Half-sine, 11ms","Vibration: IEC 60068-2-64: 5 – 500Hz, 5G RMS, 3 Axis"]}},{"Compliance":{"Approvals":["CE","EN50121-3-2","EN50155","FCC","RoHS"],"Compliance Certification":[]}},{"Physical":{"Chassis Description":["Fanless Rugged Aluminum Chassis"],"Housing":[],"Bezel Type":[],"Front Panel":["1x Display Port Video Connector","1x OOB LAN, 10/100Mb Ethernet LAN, RJ45 Connector","1x USB Type-C Port","2x Gigabit RJ45 Network connections","2x HDMI video Connector","2x SIM Communications Slots (5G, 4G/LTE)","2x USB 3.0 Port","Audio Line-Out Jack","Hard Drive indication LED","Microphone Input Jack","Power and Hard Drive notification LED","Power-on button with LED","Reset button"],"Rear Panel":["2x RS232 COM port","2x USB 3.0 Ports","32x DIO (16 In/16 Out Digital input/output)","4x DisplayPort Video connectors","Locking 3-Pin DC Power Input Jack","Rear Locking 3-Pin Ignition Switch (12V or 24V)"],"Cooling Fans":[],"Mounting":["Rack Mounting (optional)"],"Built-in Keyboard/Mouse":[],"Keyboard":"","Backlighting Illuminati":[],"Compliance-Certification":[],"Dimensions":["(W-D-H) 11.02\" x 8.46\" x 3.54\" (280mm x 215mm x 90mm)"],"Weight":[]}},{"General":{"Compatibility":[],"Included with System":["Wall Mount Bracket"],"Options":["1. Not included by default, need to be ordered separately","100-240V AC Adapter"],"WatchDog Timer":[],"Warranty":["1 Year Extended Warranty available (see Configurator/Price List)","2 Year Extended Warranty available (see Configurator/Price List)","3 Year Limited Warranty, Standard"],"Disclaimer":""}}]
