FR-1004-17W
* Product images are for illustration purposes only and may not be an exact representation of the item

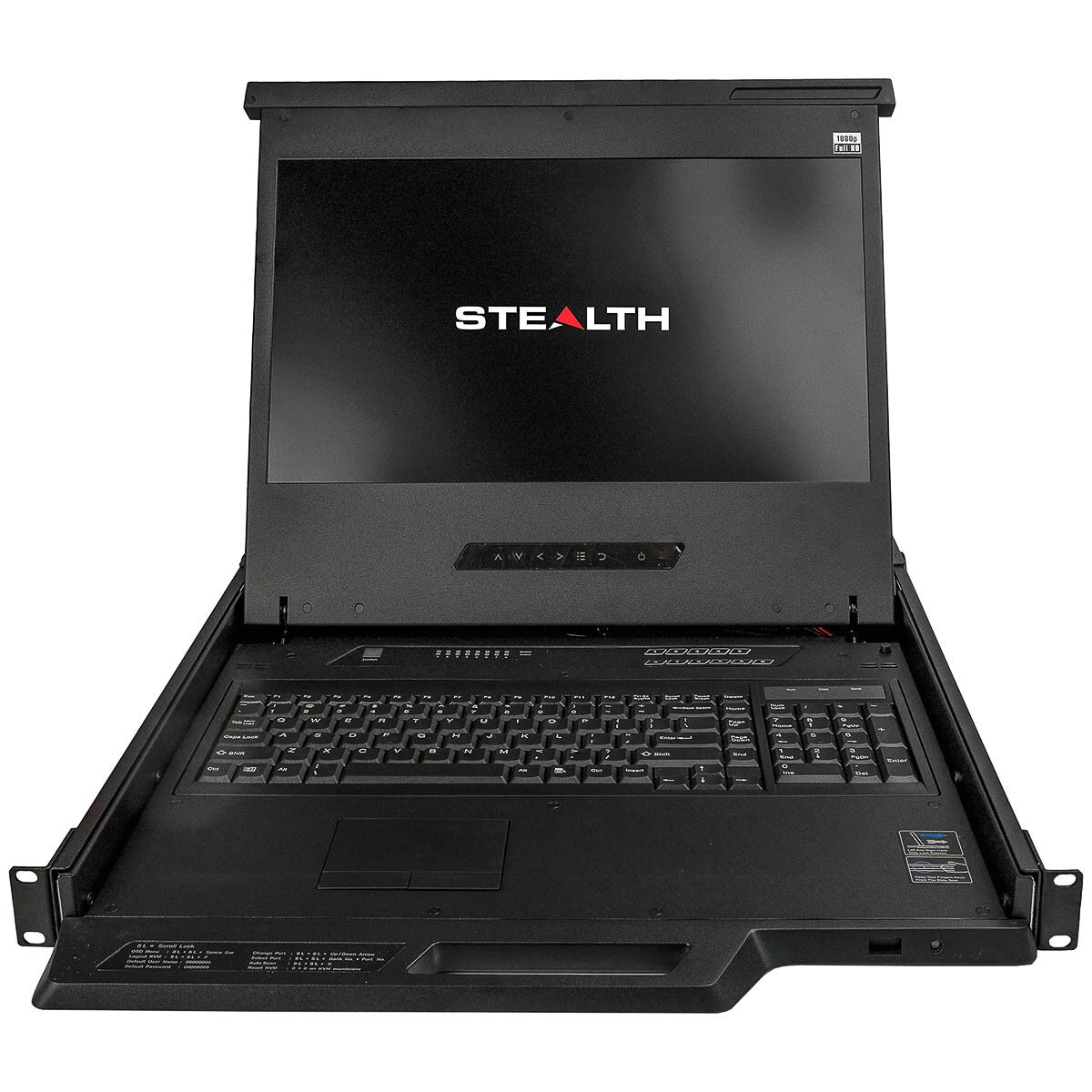

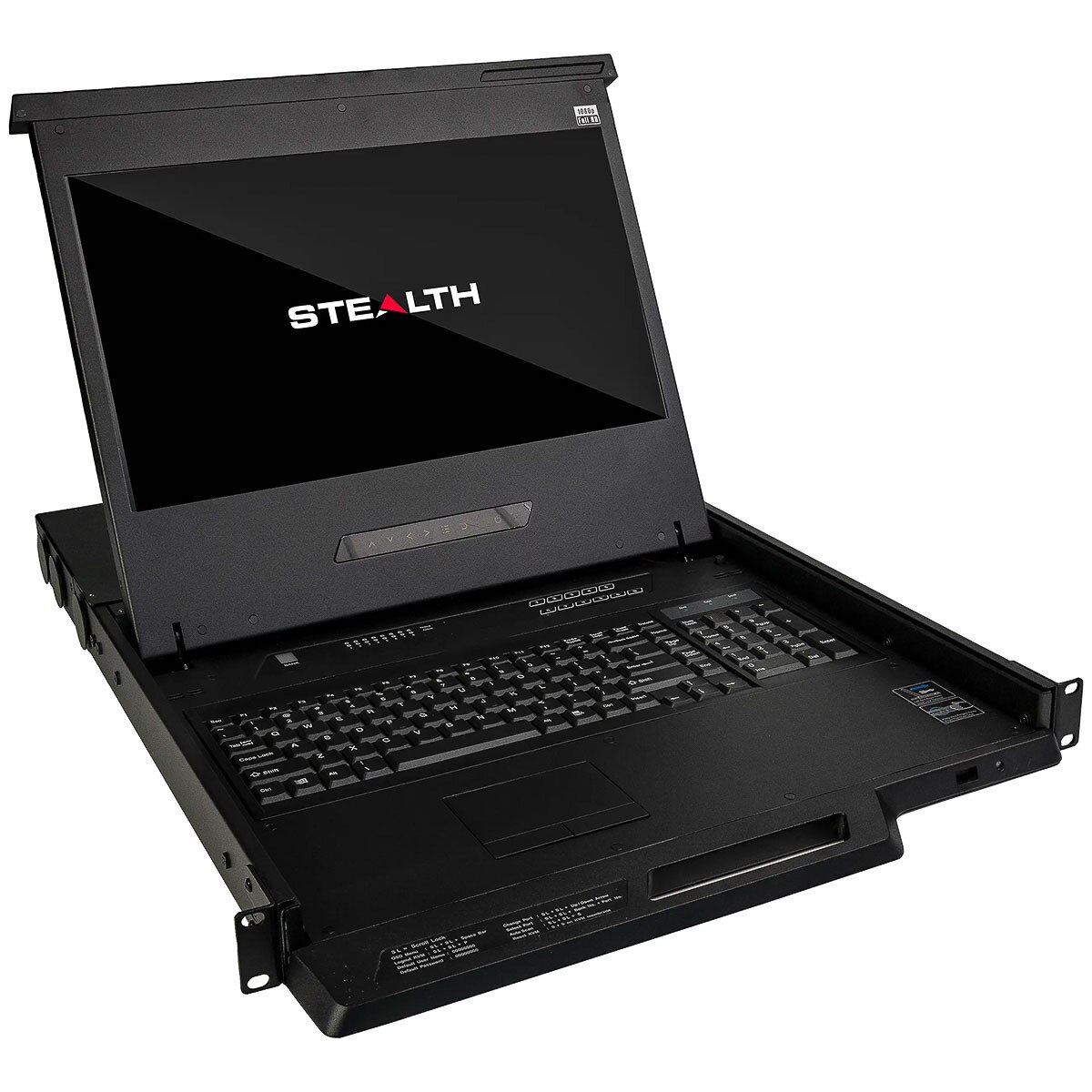

17.3" Full HD widescreen Rack Mount KVM Display.
- 17.3" diagonal Widescreen LCD Monitor c/w adjustable display angle
- 1920 x 1080 maximum resolution, 300 nit brightness
- 104-button Windows compatible keyboard c/w 2-button Touch Pad pointing device

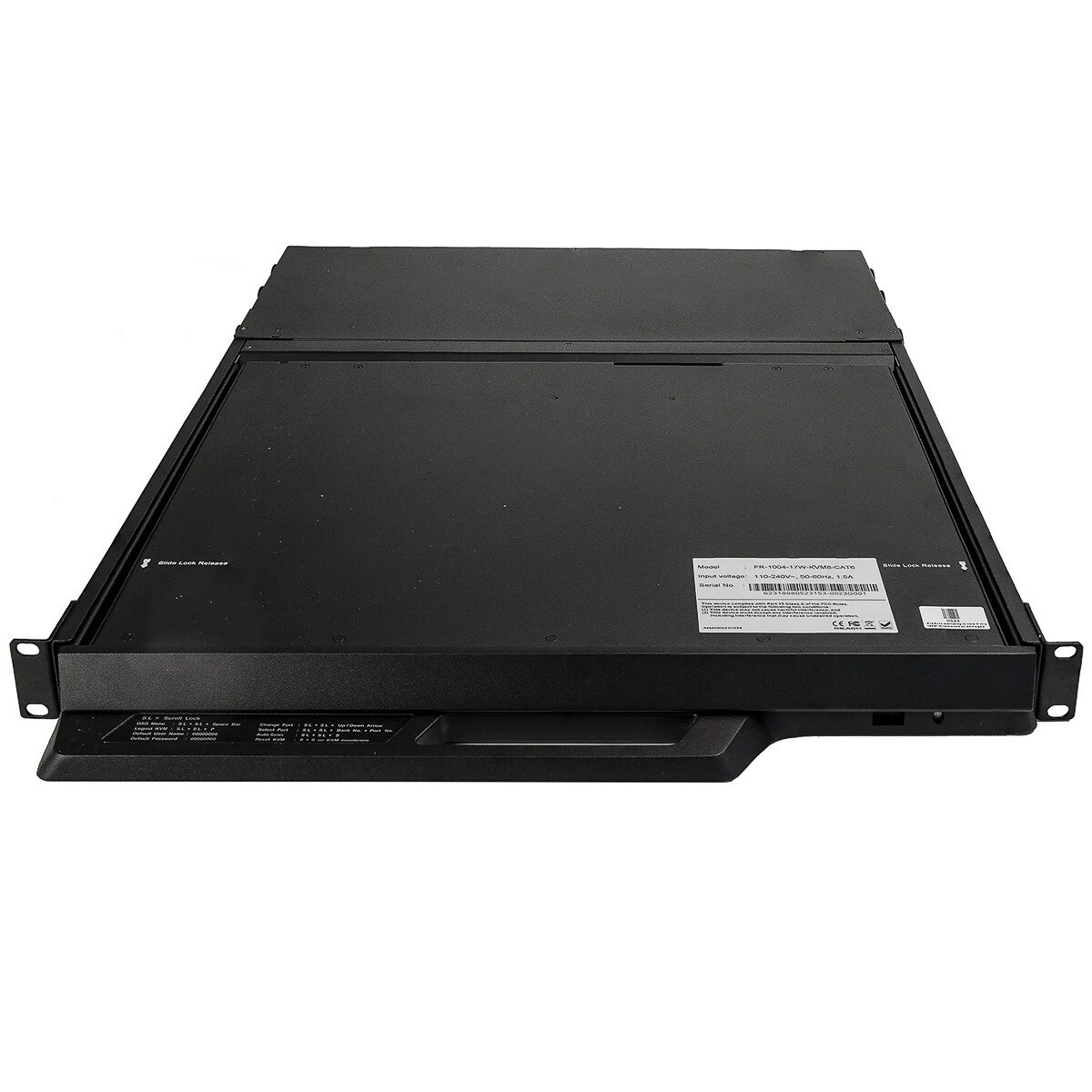

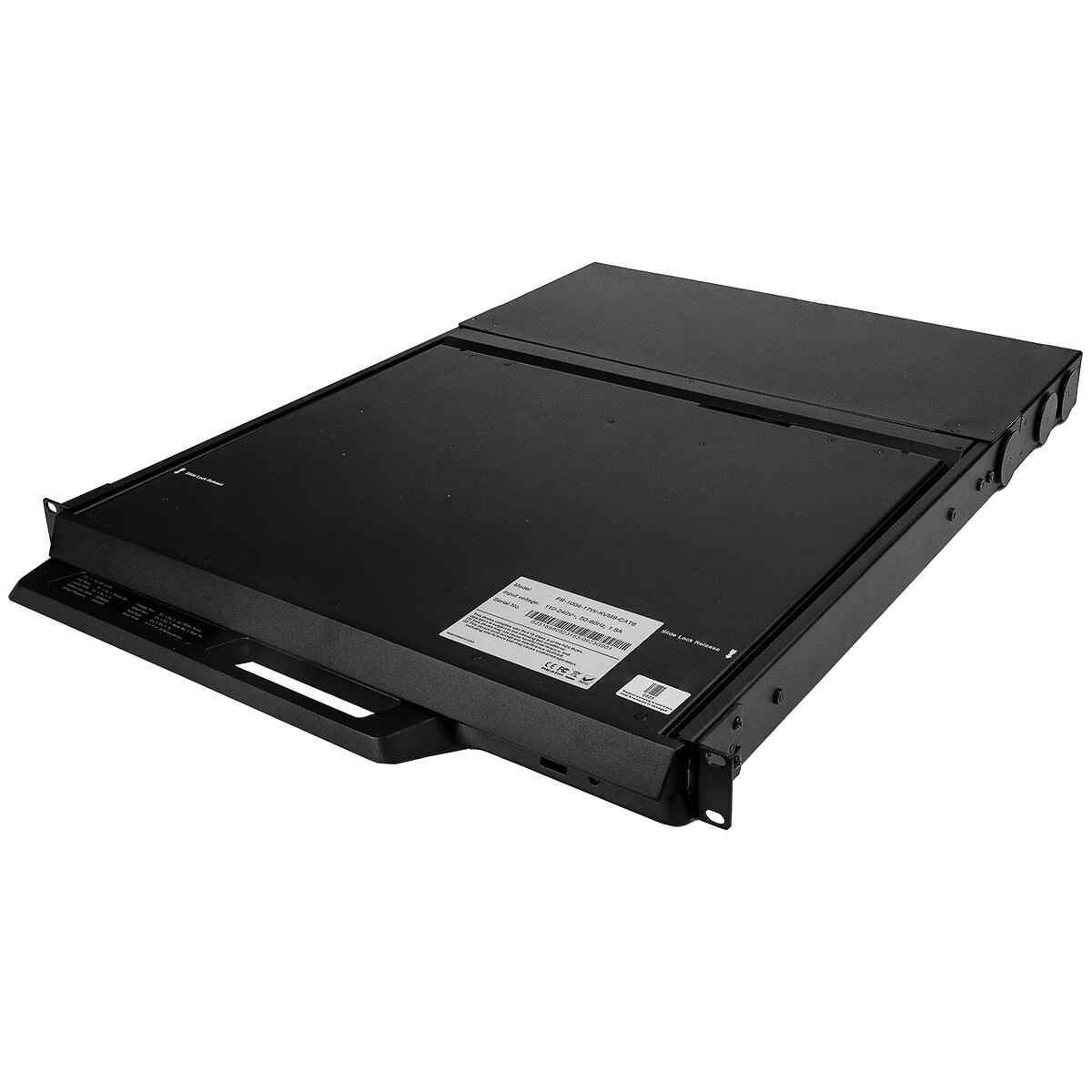

- Includes 19" black rack mount drawer c/w sliderails and aluminum front handle
- Options:
- Integrated 8-, 12-, or 16-port KVM switch

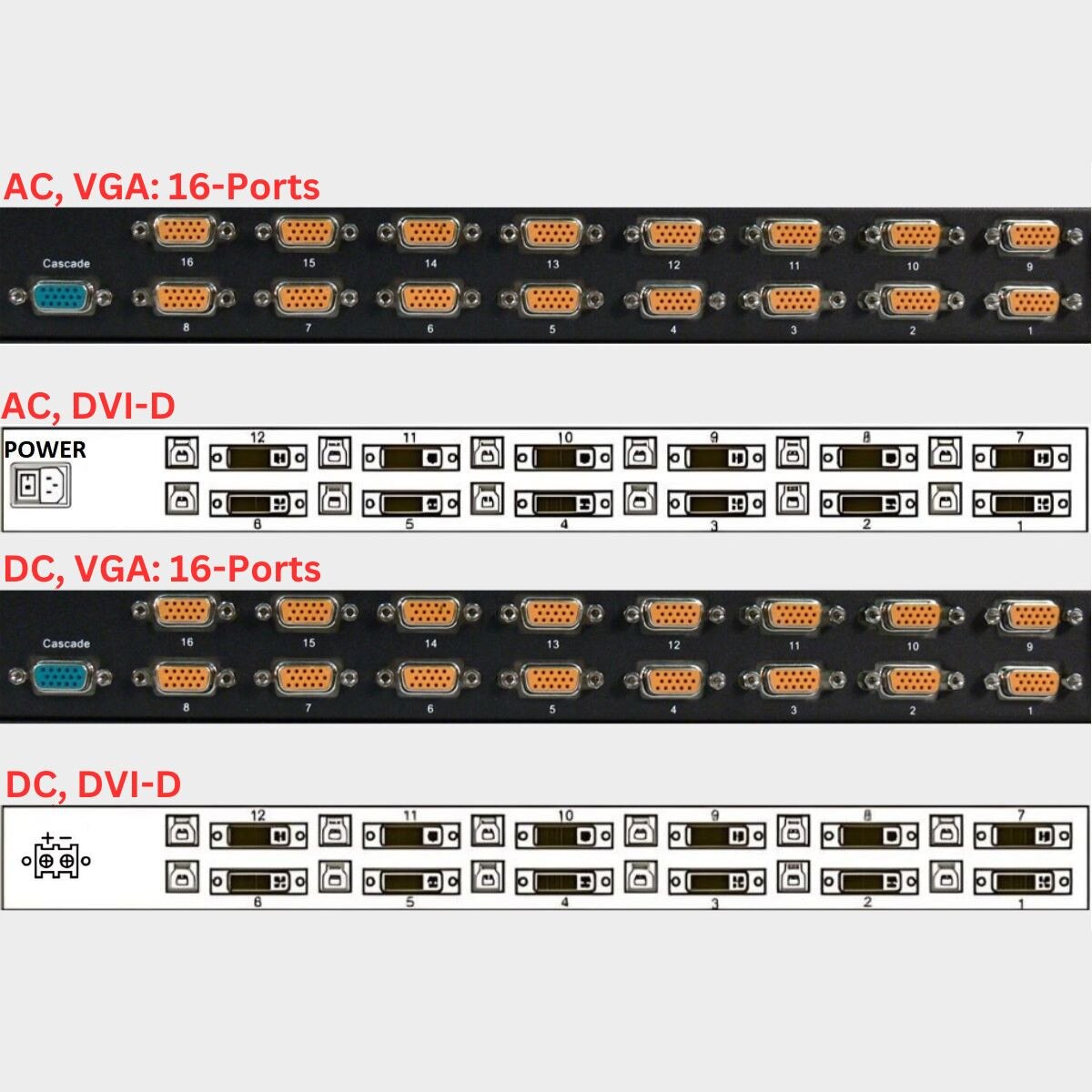

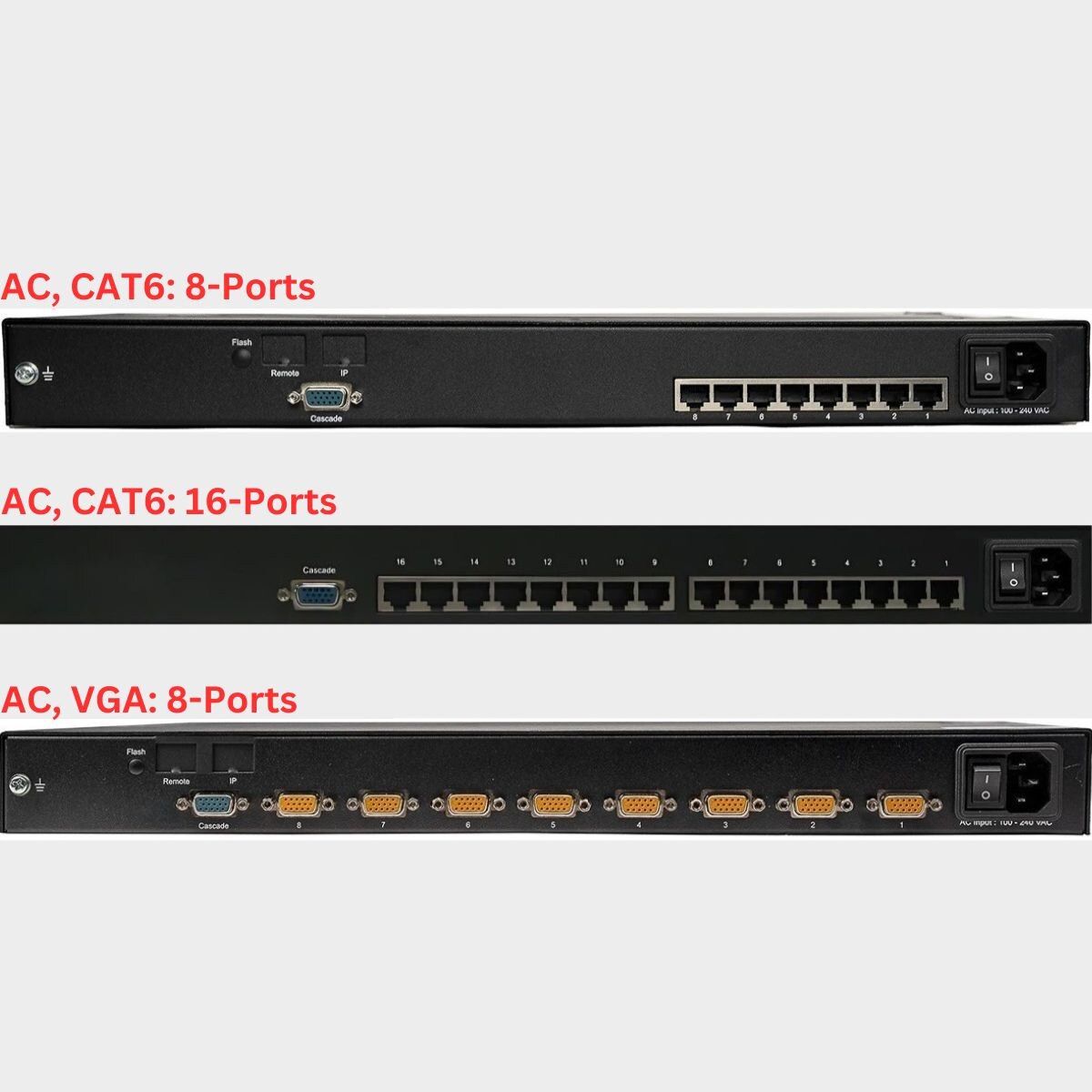

- 12x DVI-D, 8x or 16x VGA, 8x or 16x Cat 6 Ports
- 6' or 15' USB keyboard, Mouse and DVI-D cable sets
- 6', 10' or 15' USB keyboard, Mouse and VGA cable sets
- Cat 6 to VGA, HDMI, DVI-D, DP Video port with USB or Cat 6 to USB-C single interface for Video, Keyboard and Mouse

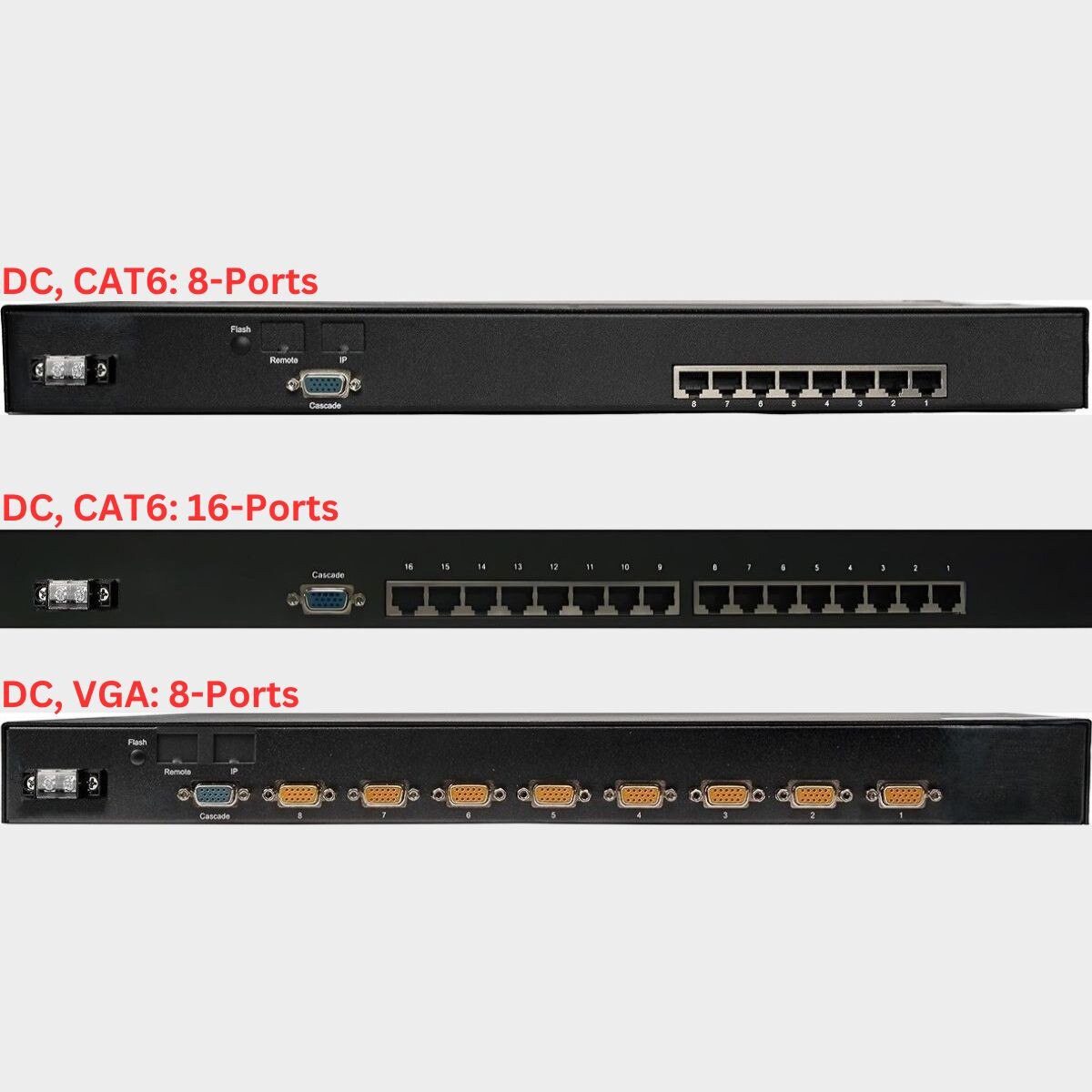

- Internal AC 100-240V or DC: 12V, 24V, 48V, 125V or 250V Power Supply
- Dimensions: 19.0"W x 1.75"H x 22.83"D
2 Year Warranty
[{"System":{"Processors":[],"Chipset":"","Memory":[],"Hardware Monitor":[],"Key Switch":[],"Cable":[],"TPM Module":""}},{"Display":{"Display":["17.3\" (Diagonal)","300 cd/m2 typical at center (300 Nits)","Viewable Image Size - Horizontal: 15.04\" (382mm), Vertical: 8.46\" (215mm)","Viewing Angle: 178° / 178° (H / V) – (Without Touchscreen)"],"Aspect Ratio":"16:09","Contrast Ratio":["1000:1 (typical)"],"Frequency":[],"Native Resolution":"1920 x 1080 (Auto sync from 640 x 480 to 1920 x 1080)","Response Time":"25ms (Typical)","Pixel Pitch":"0.199mm x 0.199mm","Controls":["Brightness, Contrast, H/V Position, Color, Phase, Clock, Language, etc. (OSD)"],"Touchscreen":"","Video":[]}},{"Storage":{"Internal Storage":[],"Drive Bays":[],"Removable Storage":[],"Optical Drives":[]}},{"Input / Output":{"Ports":[],"Video Input":["12x DVI-D connectors","16x VGA connectors","8x VGA connectors","CAT6: 16x RJ45 connectors","CAT6: 8x RJ45 connectors"],"Networking":[],"Communications":[],"Audio":[]}},{"Expansion":{"Internal Expansion":[],"Expansion Slots":[]}},{"Operating Systems":{"Operating Systems":[]}},{"Power":{"Power":["Internal 100–240V AC, 50/60Hz Power Supply","Internal 125V DC with Terminal Block","Internal 12V DC with Terminal Block","Internal 24V DC with Terminal Block","Internal 250V DC with Terminal Block","Internal 48V DC with Terminal Block","Power Consumption: Max. 45W, Standby 4W"]}},{"Environmental":{"Environmental":["Operating Humidity: 20% – 90%","Operating Temperature: 0C – +55C (+32F – +131F)","Shock: 10G acceleration (11ms duration)","Storage Humidity: 5% – 90%, non-condensing","Storage Temperature: -20C – +60C (-4F – +140F)","Vibration: 10 – 300Hz, 0.5G RMS, random vibration"]}},{"Compliance":{"Approvals":["UL"],"Compliance Certification":[]}},{"Physical":{"Chassis Description":["19\" Rackmount steel chassis","1U , 1.75\" or 44.5mm high"],"Housing":[],"Bezel Type":[],"Front Panel":[],"Rear Panel":[],"Cooling Fans":[],"Mounting":[],"Built-in Keyboard/Mouse":["104 Keys","2 Button Touch Pad"],"Keyboard":"","Backlighting Illuminati":[],"Compliance-Certification":[],"Dimensions":["(W-D-H) 19.0\" x 22.83\" x 1.75\" (482.6mm x 580.0mm x 44.5mm)"],"Weight":["Unit Weight: 25.5 lbs (11.6 kg)"]}},{"General":{"Compatibility":[],"Included with System":[],"Options":["12/24/48VDC Power supply","DVI-D + USB Interface Cables (for DVI Models)","KVM with 8-, 12- or 16- ports","VGA + USB Interface Cables (for VGA Models)","VGA, DVI-D, HDMI, DisplayPort or USB-C Dongles (for Cat 6 models)"],"WatchDog Timer":[],"Warranty":["2 Year Parts & Labor"],"Disclaimer":"Note: Specifications are subject to change without notice."}}]
