5000-OEM-FSR
* Product images are for illustration purposes only and may not be an exact representation of the item

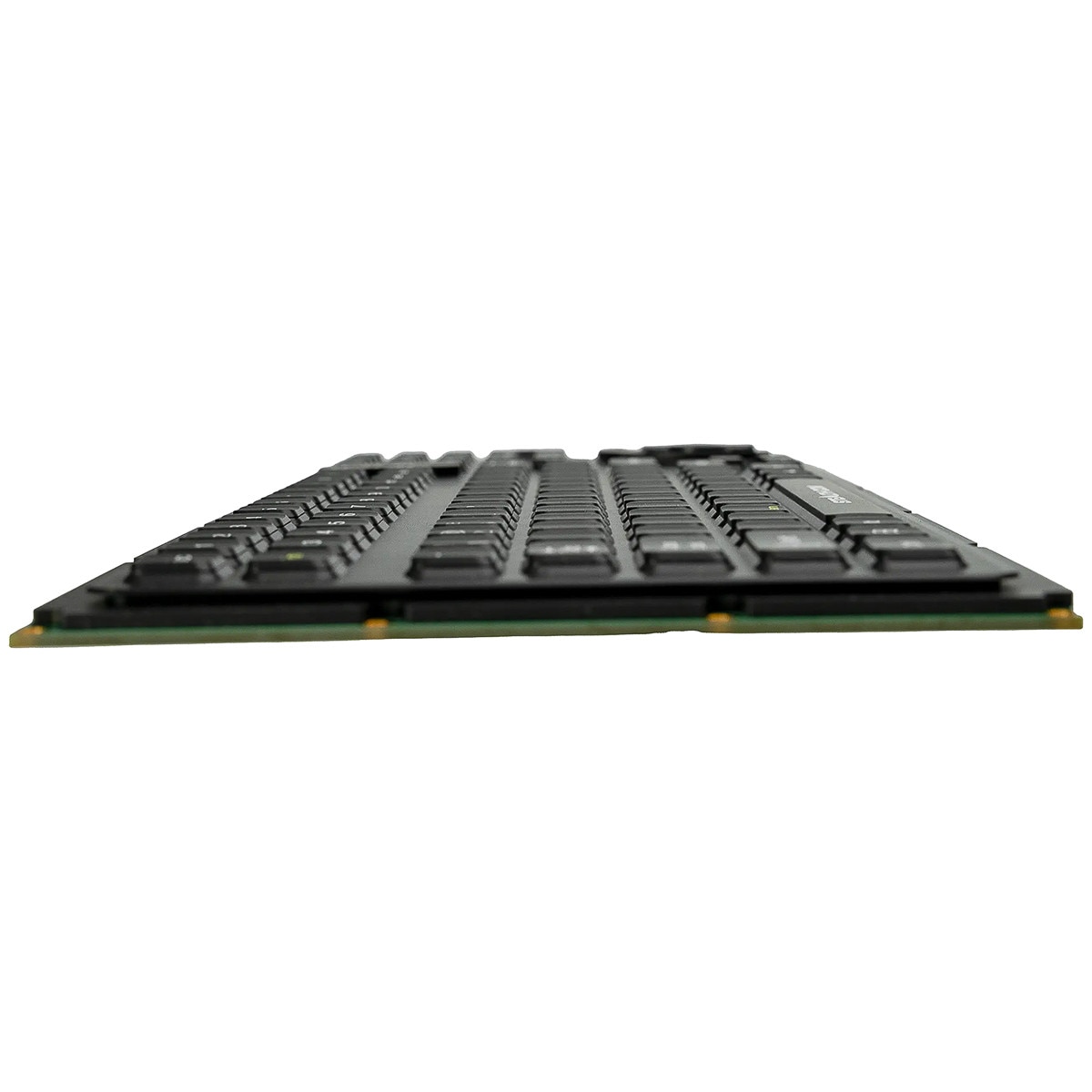

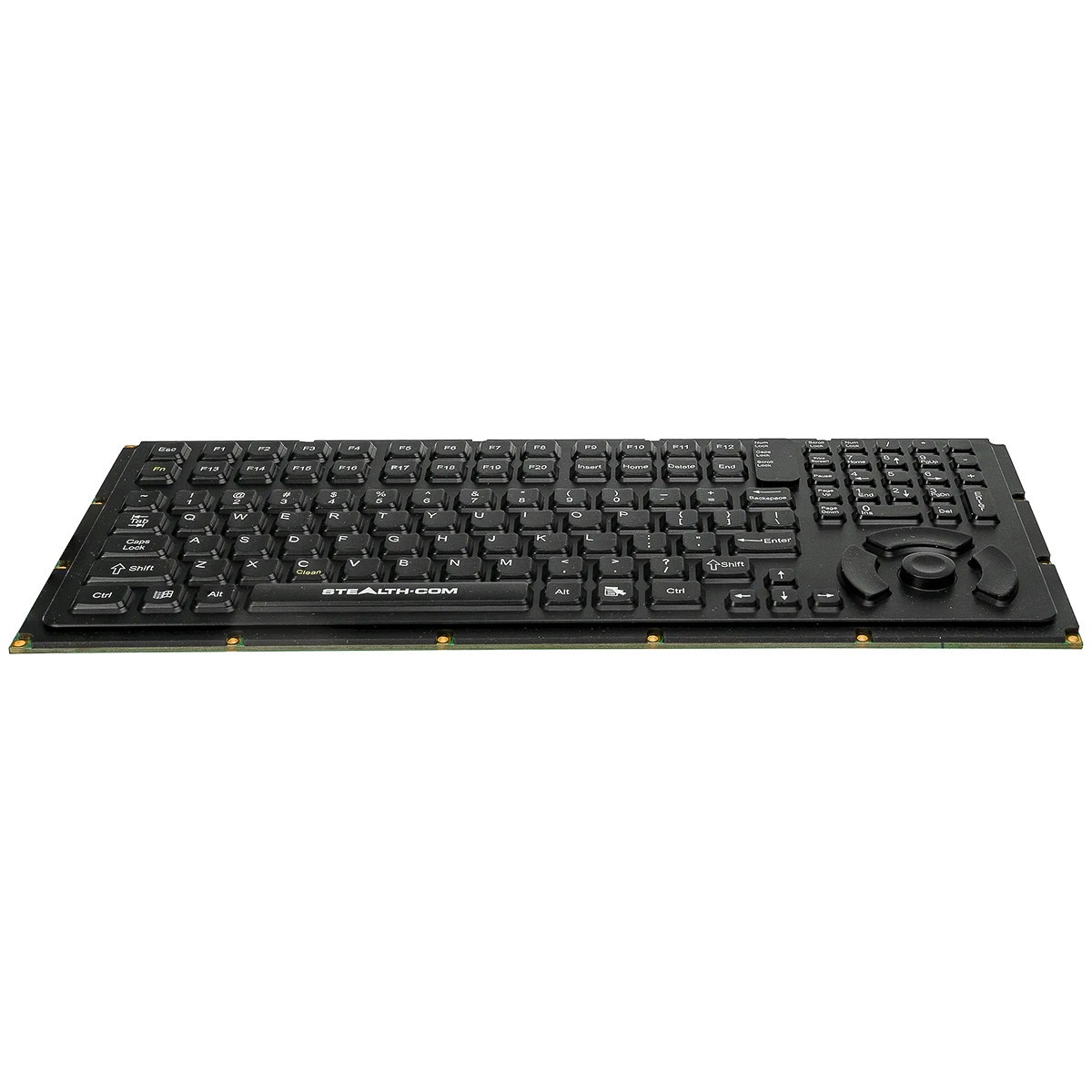

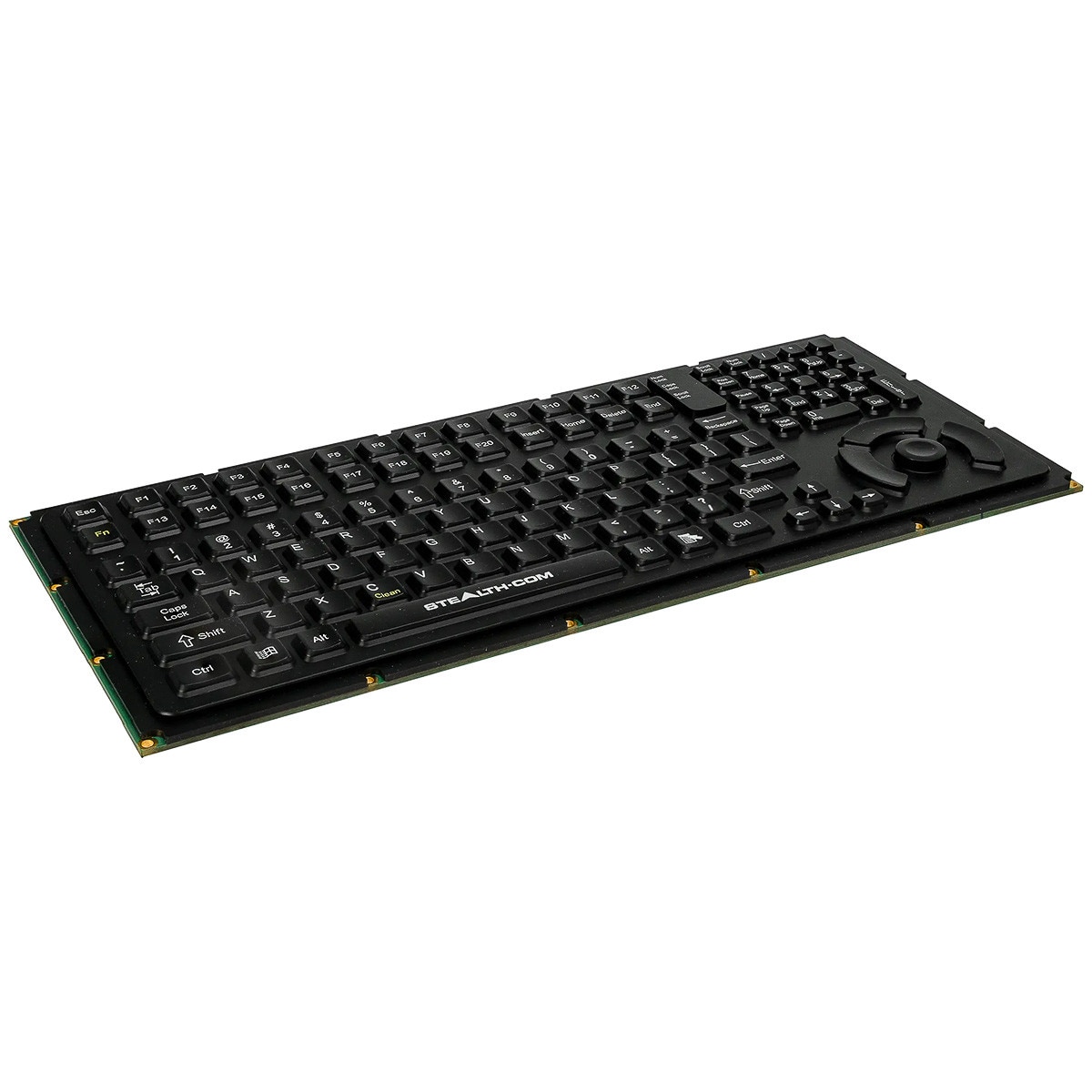

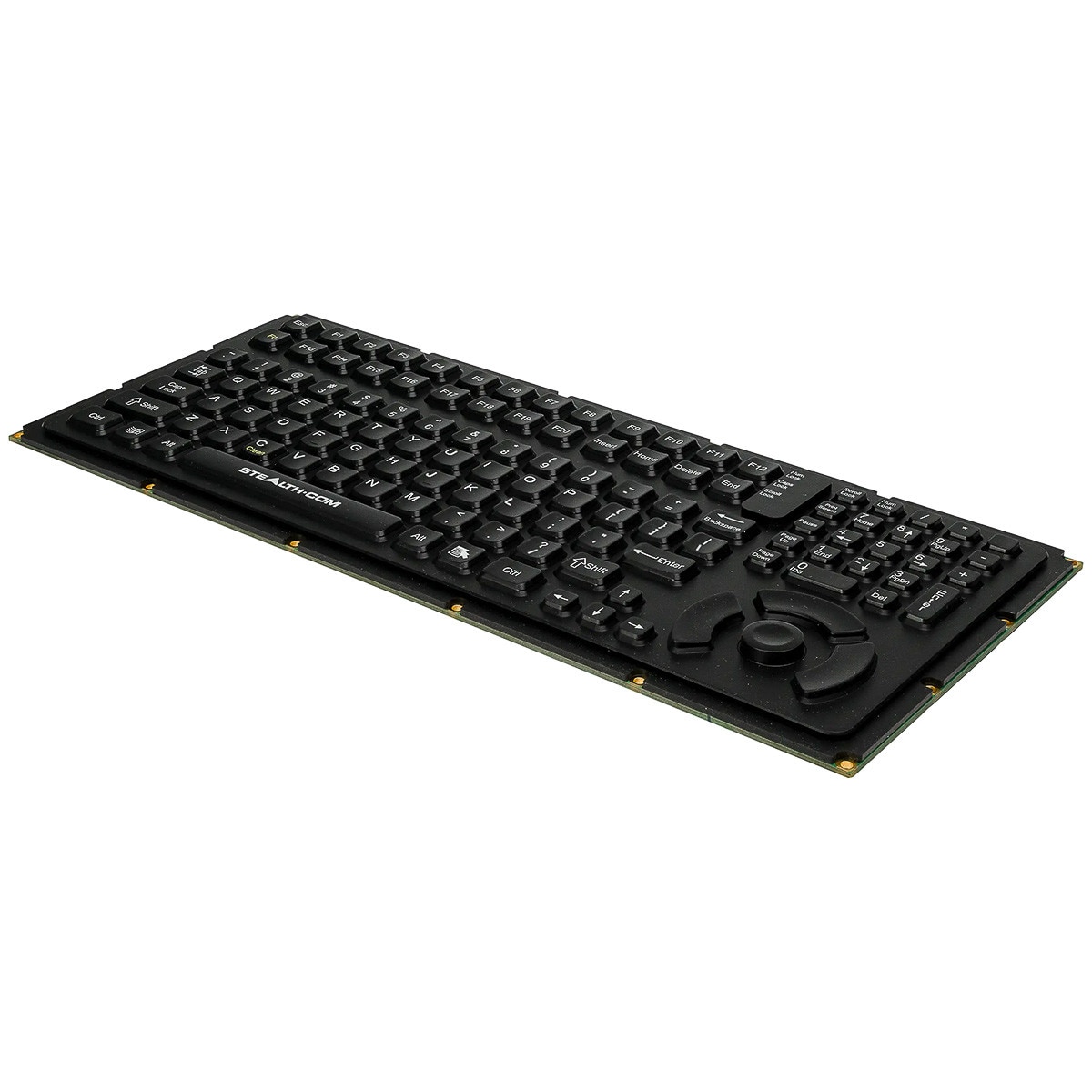

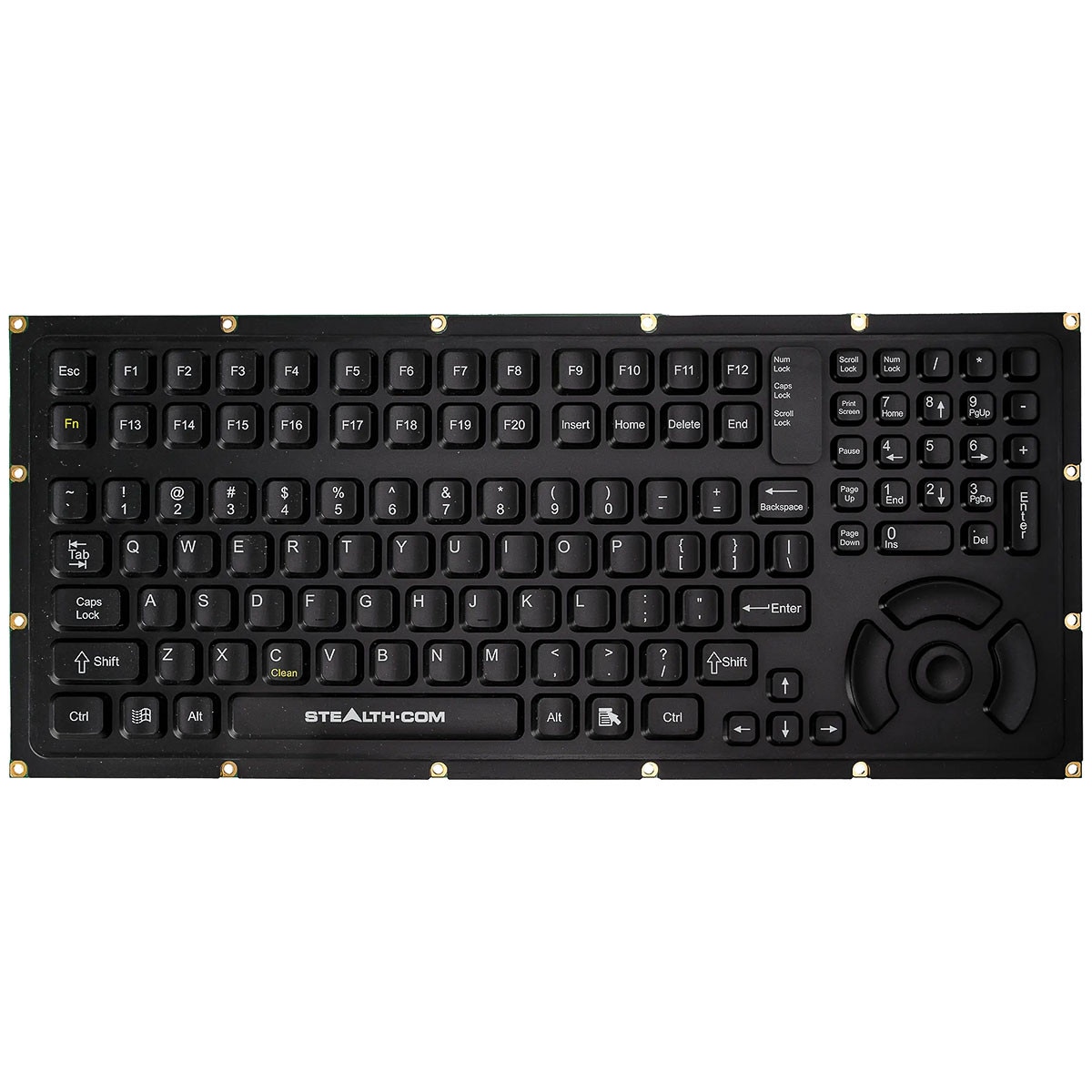

Model: 5000-OEM-FSR-USB, Industrial Keyboard Kit (KEYBOARD)
- 112-button QWERTY keypad including 20 Function Keys
- Industrial Silicone overlay with tactile mechanical snap
- "CLEAN Function" - allows for disabling of keyboard during cleaning or wipe down
- Integrated 3 button Force Sensing FingerTipMouse

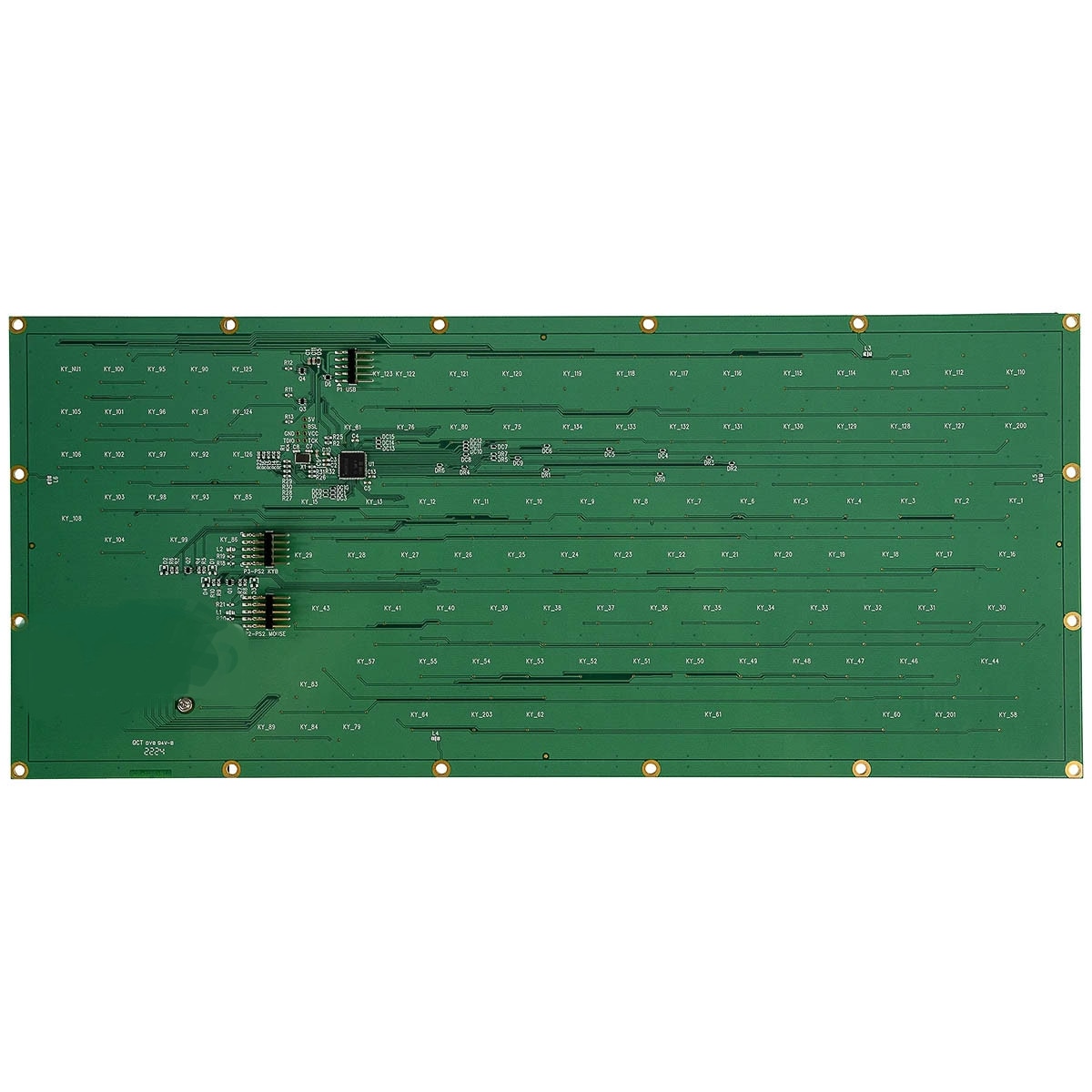

- OEM kit only, includes overlay, PCB and 10' USB interface cable, single mouse and keyboard connection or "Y" design PS/2 interface cable, separate mouse and keyboard connection
- Meets NEMA 4, 4X, IP65 when properly installed
- Includes UL, FCC Class 15 Part B and CE approvals
- Dimensions: 15.0"W x 6.5"H x 0.42"D
1 Year Warranty
[{"System":{"Processors":[],"Chipset":"","Memory":[],"Hardware Monitor":[],"Key Switch":["Actuation Force: 200g (+/- 40g) / 7.05oz (+/- 1.41oz)","Feedback: Tactile with mechanical snap","Life: Greater than 10 million cycles","Material: Industrial Silicone Rubber","Travel: 0.055\" (1.4mm)"],"Cable":["10 Feet (3.05m) Single \"Y-Split\" Cable with PS/2 Connectors","10 Feet (3.05m) Single USB Connector"],"TPM Module":""}},{"Display":{"Display":[],"Aspect Ratio":"","Contrast Ratio":[],"Frequency":[],"Native Resolution":"","Response Time":"","Pixel Pitch":"","Controls":[],"Touchscreen":"","Video":[]}},{"Storage":{"Internal Storage":[],"Drive Bays":[],"Removable Storage":[],"Optical Drives":[]}},{"Input / Output":{"Ports":[],"Video Input":[],"Networking":[],"Communications":[],"Audio":[]}},{"Expansion":{"Internal Expansion":[],"Expansion Slots":[]}},{"Operating Systems":{"Operating Systems":[]}},{"Power":{"Power":["* PS2 Current ratings valid only when both keyboard and mouse are connected","PS/2 Keyboard: 35mA @ 5V (from keyboard Port)","PS/2 Mouse: 5mA @ 5V (from mouse port)","USB Keyboard / Mouse: 40mA @ 5V from USB port"]}},{"Environmental":{"Environmental":["100% Humidity Resistant","Operating: -20C to +60C (-4F to +140F)","Storage: -40C to +70C (-40F to +158F)"]}},{"Compliance":{"Approvals":["NEMA 4, 4X / IP65, UL/ULc 60950, CE, FCC Class 15, Part B"],"Compliance Certification":["3×11 ms pulses of 50g on each of 3 axes","Power Spectral Density: 0.04g/Hz, Frequency Range: 20Hz-2kHz, Duration of Test per Axis: 3 hours"]}},{"Physical":{"Chassis Description":[],"Housing":[],"Bezel Type":[],"Front Panel":[],"Rear Panel":[],"Cooling Fans":[],"Mounting":[],"Built-in Keyboard/Mouse":[],"Keyboard":"","Backlighting Illuminati":[],"Compliance-Certification":["3×11 ms pulses of 50g on each of 3 axes","Power Spectral Density: 0.04g/Hz, Frequency Range: 20Hz-2kHz, Duration of Test per Axis: 3 hours"],"Dimensions":["(W-D-H) 15.0\" x 6.5\" x 0.42\" (381.0mm x 165.1mm x 10.7mm)"],"Weight":[]}},{"General":{"Compatibility":["PS/2: All windows operating systems most Linux/Unix Systems, USB: All windows operating systems, MAC OS and most Linux/Unix Systems"],"Included with System":[],"Options":[],"WatchDog Timer":[],"Warranty":["1 Year limited Warranty Standard"],"Disclaimer":"Note: Specifications are subject to change without notice."}}]
