2020-FTM-OEM
* Product images are for illustration purposes only and may not be an exact representation of the item

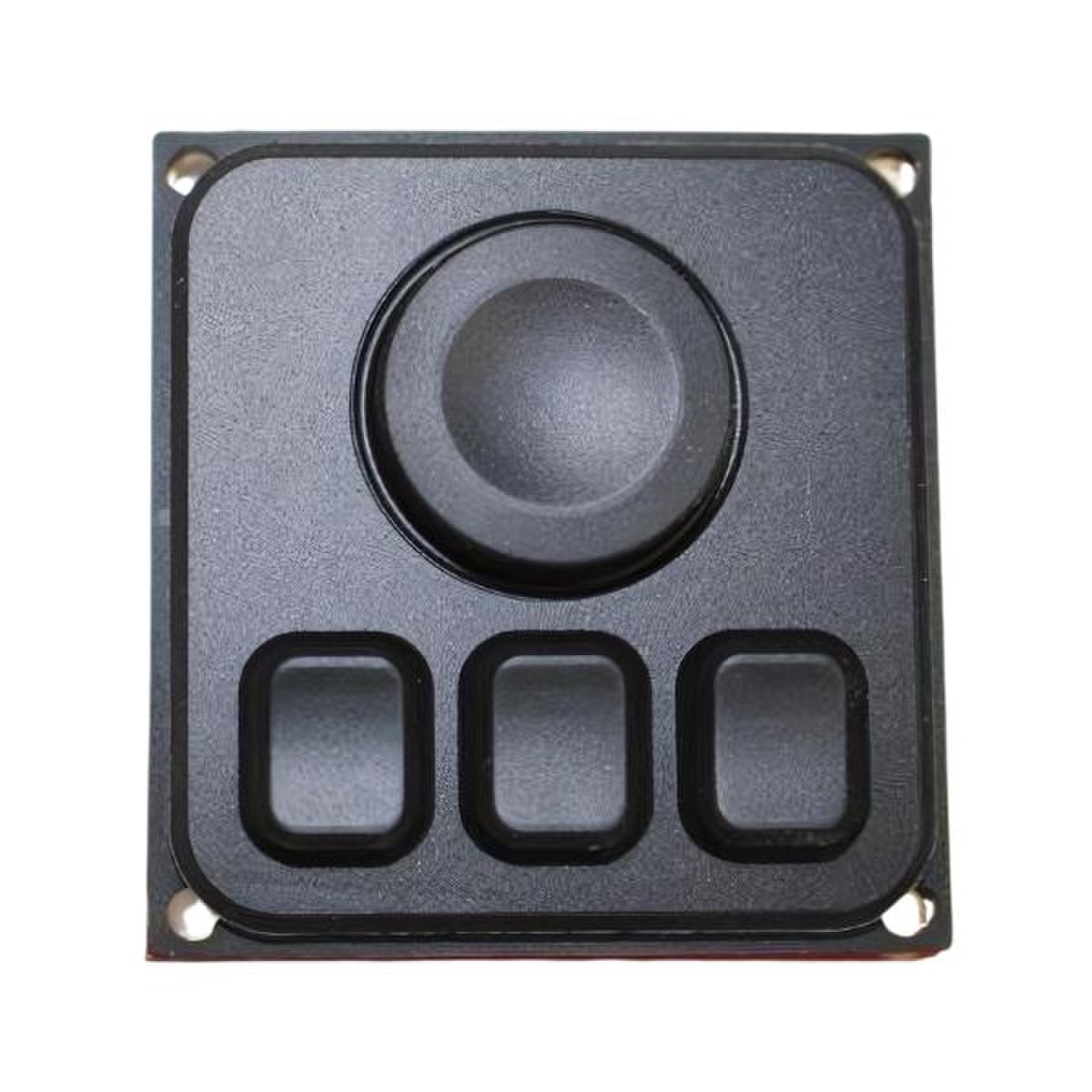

Model: 2020-FTM-OEM NEMA 4/4X Industrial Pointing Device.
- Industrial silicone overlay with tactile mechanical snap feedback
- 3-Button design, Right, Left & Center / Middle buttons
- OEM kit only, no enclosure included
- Dimensions: 1.8”W x 1.9”D x 0.45”H
- includes 6’ cable with USB connector
2 Year Warranty
[{"System":{"Processors":[],"Chipset":"","Memory":[],"Hardware Monitor":[],"Key Switch":["Actuation Force: 200g (+/- 40g) / 7.05oz (+/- 1.41oz)","Feedback: Tactile with mechanical snap","Life: Greater than 10 million cycles","Material: Industrial Silicone Rubber","Travel: 0.040\" (1.0mm)"],"Cable":["6 Feet (1.8m) Single PS/2","6 Feet (1.8m) USB Connector"],"TPM Module":""}},{"Display":{"Display":[],"Aspect Ratio":"","Contrast Ratio":[],"Frequency":[],"Native Resolution":"","Response Time":"","Pixel Pitch":"","Controls":[],"Touchscreen":"","Video":[]}},{"Storage":{"Internal Storage":[],"Drive Bays":[],"Removable Storage":[],"Optical Drives":[]}},{"Input / Output":{"Ports":[],"Video Input":[],"Networking":[],"Communications":[],"Audio":[]}},{"Expansion":{"Internal Expansion":[],"Expansion Slots":[]}},{"Operating Systems":{"Operating Systems":[]}},{"Power":{"Power":["PS/2: POINTER: 15mA@5V (from Mouse port)","STANDARD: POINTER: 15mA@5V (from Serial port)"]}},{"Environmental":{"Environmental":["100% Humidity Resistant","Operating: -40C to +70C (-40F to +158F)","Storage: -40C to +90C (-40F to +194F)"]}},{"Compliance":{"Approvals":["NEMA 4, 4X / IP65, UL/ULc 60950, CE, FCC Class 15, Part B"],"Compliance Certification":["3×11 ms pulses of 50g on each of 3 axes","Power Spectral Density: 0.04g/Hz, Frequency Range: 20Hz-2kHz, Duration of Test per Axis: 3 hours"]}},{"Physical":{"Chassis Description":[],"Housing":[],"Bezel Type":[],"Front Panel":[],"Rear Panel":[],"Cooling Fans":[],"Mounting":[],"Built-in Keyboard/Mouse":[],"Keyboard":"","Backlighting Illuminati":[],"Compliance-Certification":["3×11 ms pulses of 50g on each of 3 axes","Power Spectral Density: 0.04g/Hz, Frequency Range: 20Hz-2kHz, Duration of Test per Axis: 3 hours"],"Dimensions":["(W-D-H) 1.8\" x 1.9\" x 0.45\" (45.7mm x 48.3mm x 11.4mm)"],"Weight":[]}},{"General":{"Compatibility":["PS/2: All windows operating systems most Linux/Unix Systems, USB: All windows operating systems, MAC OS and most Linux/Unix Systems"],"Included with System":[],"Options":[],"WatchDog Timer":[],"Warranty":["1 Year limited Warranty Standard"],"Disclaimer":"Note: Specifications are subject to change without notice."}}]
