1000-PM
* Product images are for illustration purposes only and may not be an exact representation of the item

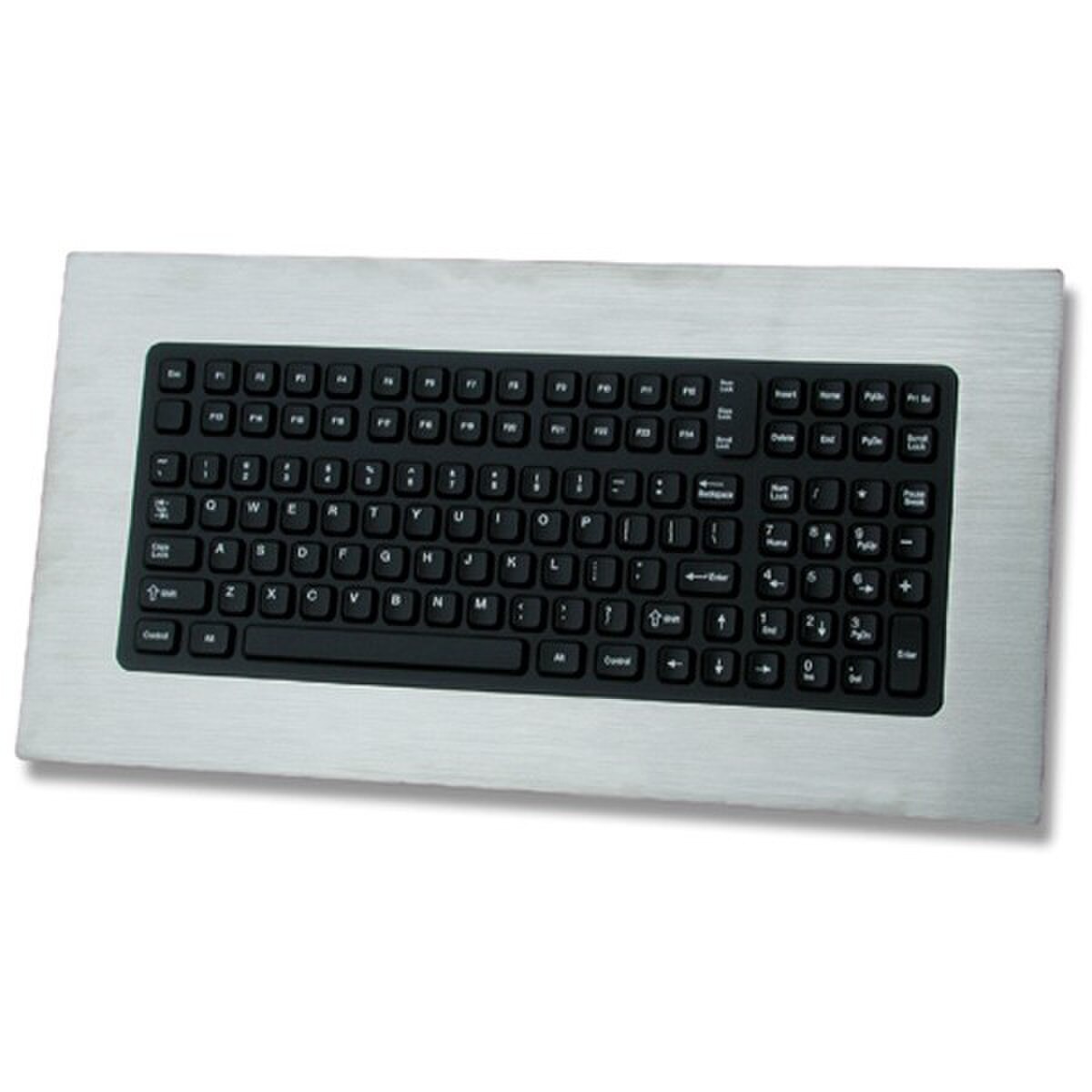

Model: 1000-PM NEMA 4/4X Panel Mount Keyboard
- 114-button molded silicone rubber QWERTY keypad c/w 24 Function Keys
- includes 10' keyboard cable c/w USB or PS/2 interface
- NEMA 4/4X Stainless Steel panel mount enclosure
- Dimensions: 17.7"W x 9.2"D x 2.0"H
1 Year Warranty
[{"System":{"Processors":[],"Chipset":"","Memory":[],"Hardware Monitor":[],"Key Switch":["Actuation Force: 6.35oz +/- 1.06oz (180g+/-30g)","Feedback: Tactile with mechanical snap","Life: Greater than 10 million cycles","Material: Industrial Silicone Rubber","Travel: 0.060\" (1.5mm)"],"Cable":["10 Feet (3.05m) Single \"Y-Split\" Cable with PS/2 Connectors","10 Feet (3.05m) Single USB Connector"],"TPM Module":""}},{"Display":{"Display":[],"Aspect Ratio":"","Contrast Ratio":[],"Frequency":[],"Native Resolution":"","Response Time":"","Pixel Pitch":"","Controls":[],"Touchscreen":"","Video":[]}},{"Storage":{"Internal Storage":[],"Drive Bays":[],"Removable Storage":[],"Optical Drives":[]}},{"Input / Output":{"Ports":[],"Video Input":[],"Networking":[],"Communications":[],"Audio":[]}},{"Expansion":{"Internal Expansion":[],"Expansion Slots":[]}},{"Operating Systems":{"Operating Systems":[]}},{"Power":{"Power":["Keyboard: 5V@50ma (from CPU Port)"]}},{"Environmental":{"Environmental":["100% Humidity Resistant","Operating: -40C to +70C (-40F to +158F)","Storage: -40C to +90C (-40F to +194F)"]}},{"Compliance":{"Approvals":["NEMA 4, 4X / IP65 UL 60950, CE, FCC Class B"],"Compliance Certification":["3×11 ms pulses of 50g on each of 3 axes","Power Spectral Density: 0.04g/Hz, Frequency Range: 20Hz-2kHz, Duration of Test per Axis: 3 hours"]}},{"Physical":{"Chassis Description":[],"Housing":[],"Bezel Type":[],"Front Panel":[],"Rear Panel":[],"Cooling Fans":[],"Mounting":[],"Built-in Keyboard/Mouse":[],"Keyboard":"","Backlighting Illuminati":[],"Compliance-Certification":["3×11 ms pulses of 50g on each of 3 axes","Power Spectral Density: 0.04g/Hz, Frequency Range: 20Hz-2kHz, Duration of Test per Axis: 3 hours"],"Dimensions":["(W-D-H) 17.7\" x 9.2\" x 2.0\" (449.6mm x 233.7mm x 50.8mm)"],"Weight":[]}},{"General":{"Compatibility":["PS/2: All windows operating systems most Linux/Unix Systems, USB: All windows operating systems, MAC OS and most Linux/Unix Systems"],"Included with System":[],"Options":["Custom cable lengths, special connectors, custom enclosures etc","Other Languages Available – Contact us for more details, Minimum quantities may apply."],"WatchDog Timer":[],"Warranty":["1 Year limited Warranty Standard"],"Disclaimer":"Note: Specifications are subject to change without notice."}}]
