SV-1905-OEM
* Product images are for illustration purposes only and may not be an exact representation of the item

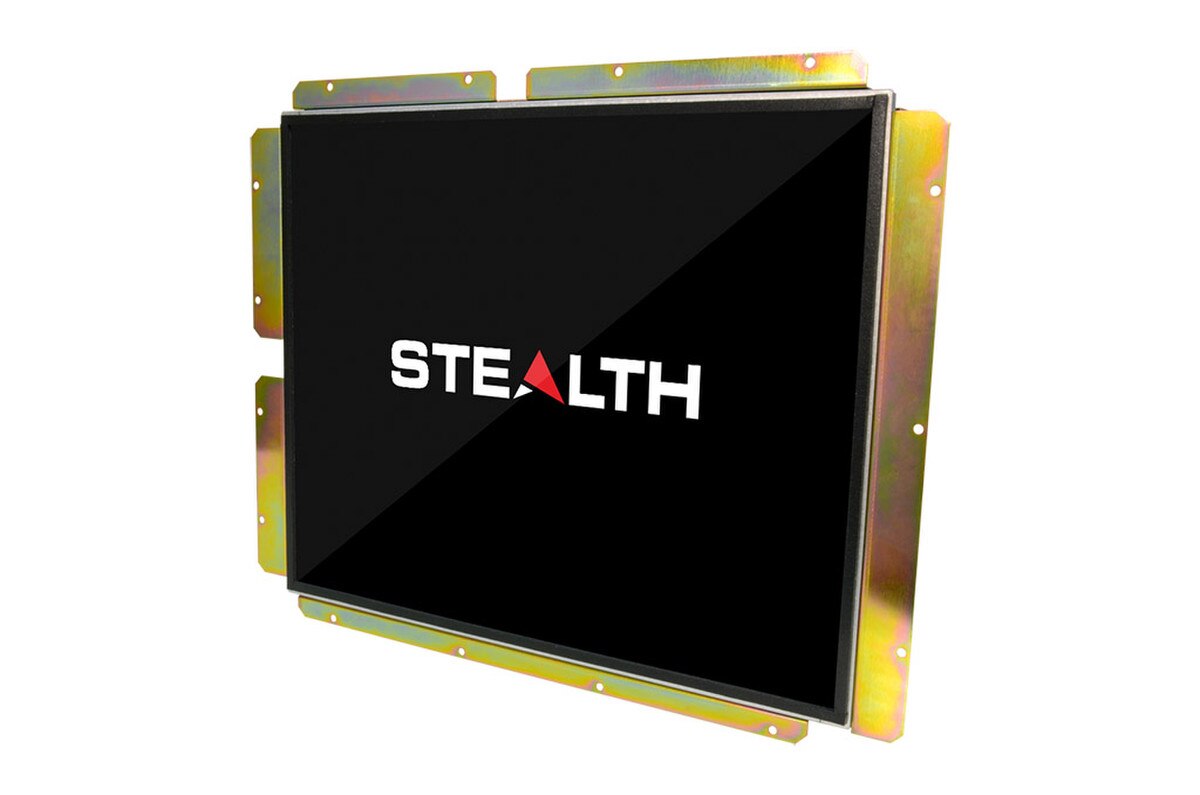

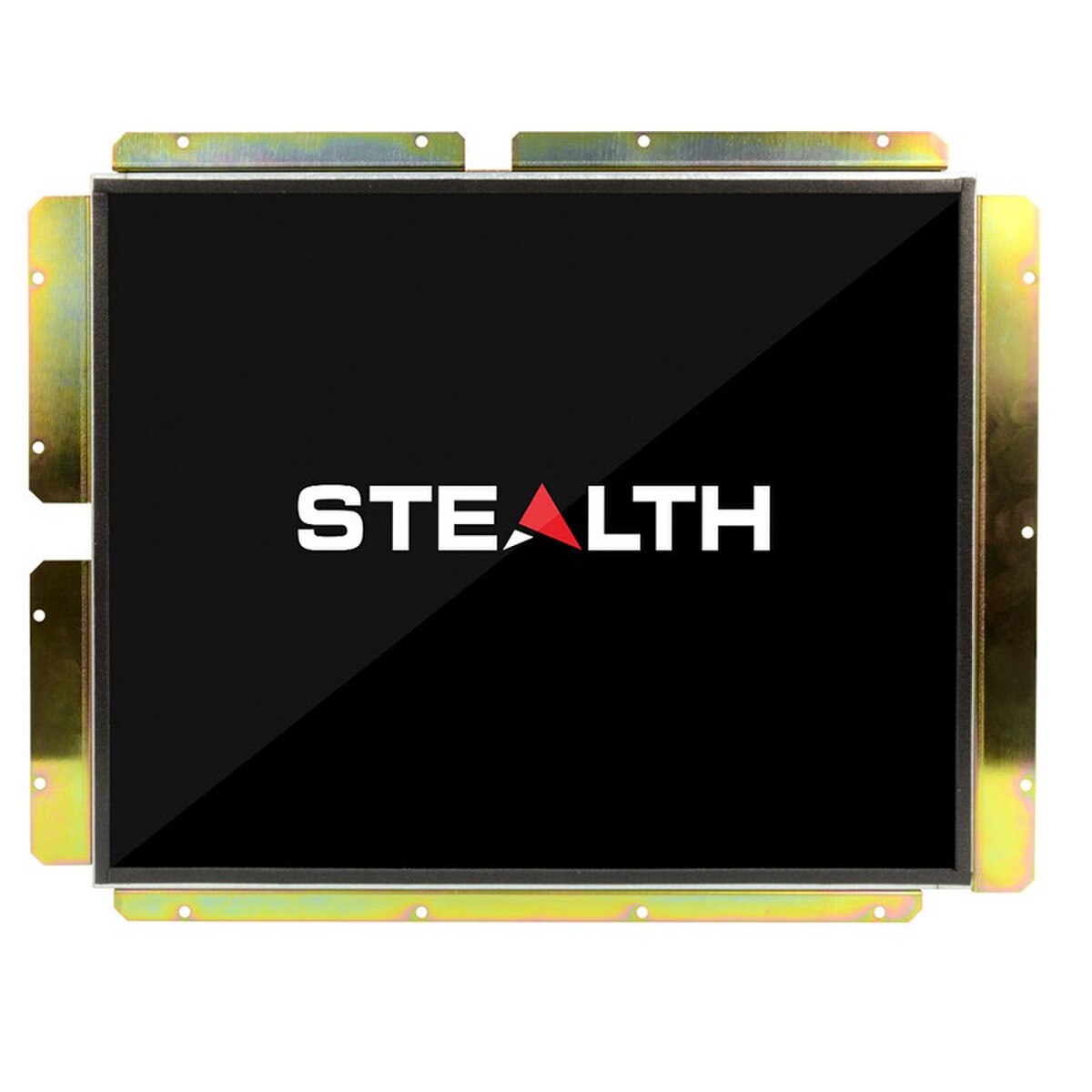

Model: SV-1905-OEM, 19" Flat Panel LCD Display.
- 19" diagonal TFT Active Matrix Display c/w LED Backlighting, 1280 x 1024 resolution
- Open-Frame style of enclosure

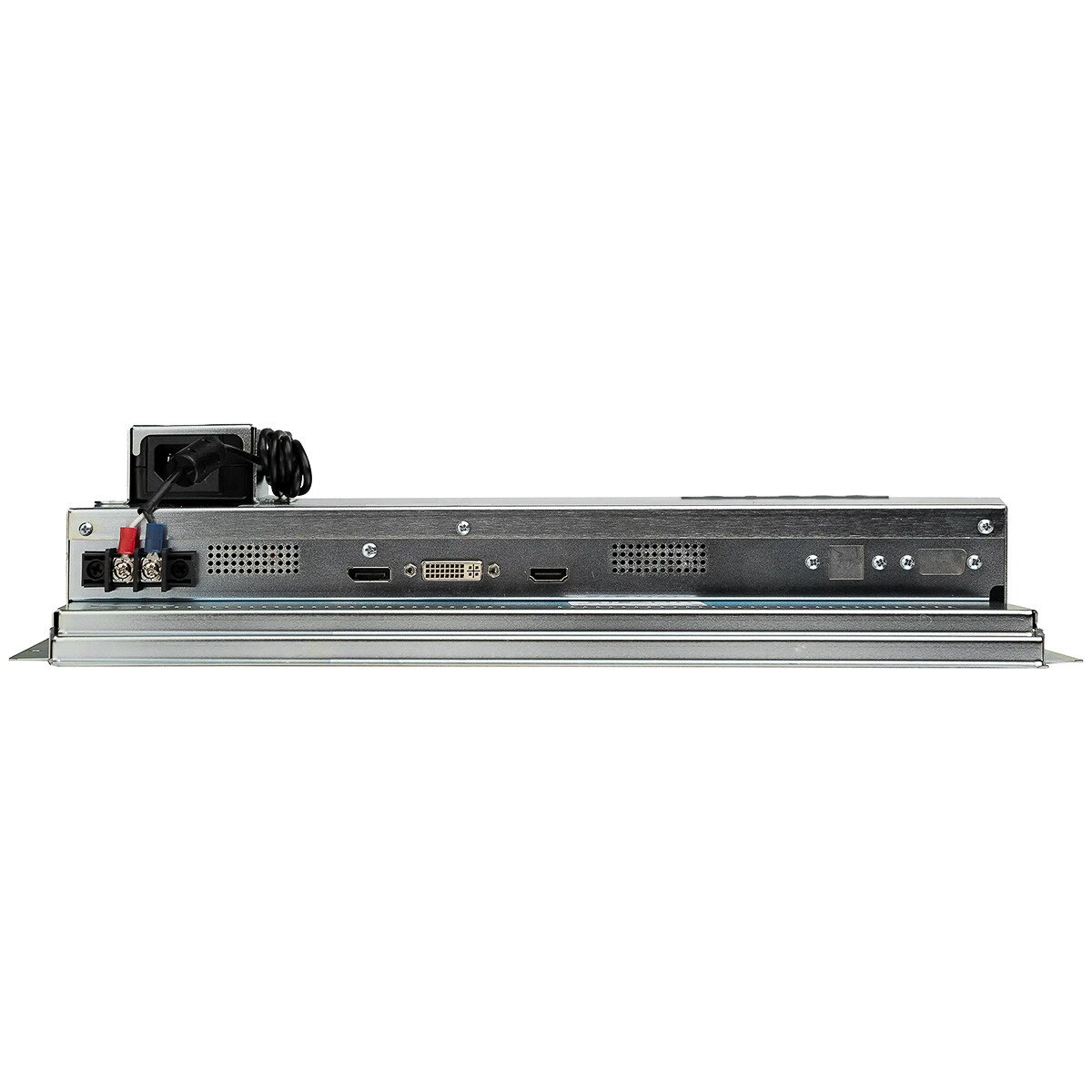

- DVI-I, HDMI and DisplayPort inputs
- Includes DVI to VGA Adapter
- Rear-mounted touch control panel with On-screen Display
- Dimensions: 17.8"W x 14.05"H x 2.11"D (add 1.34" with AC Adapter)
Power Options:
- (9-36)V DC input with rear-mounted (removable) 100-240V AC Power Supply
- 43-160V DC input
- 180-300V DC input
Touchscreen Options:
- No Touch - no protective glass included
- Resistive Touchscreen, serial and USB interfaces
5 Year Warranty
[{"System":{"Processors":[],"Chipset":"","Memory":[],"Hardware Monitor":[],"Key Switch":[],"Cable":[],"TPM Module":""}},{"Display":{"Display":["19.0\" (Diagonal)","350 cd/m2 typical at center (350 Nits)","Viewable Image Size - Horizontal: 14.81\" (376mm), Vertical: 11.85\" (301mm)","Viewing Angle: 170° / 160° (H / V) – (Without Touchscreen)"],"Aspect Ratio":"5:04","Contrast Ratio":["1000:1 (typical)"],"Frequency":[],"Native Resolution":"1280 x 1024 (Auto sync from 640 x 480 to 1280 x 1024)","Response Time":"10ms (Typical)","Pixel Pitch":"0.294mm x 0.294mm","Controls":["Brightness, Contrast, Input Source, Color, Image Adjust, OSD Lockout (OSD)","Power, Left, Right, Menu (Rear mounted)"],"Touchscreen":"","Video":[]}},{"Storage":{"Internal Storage":[],"Drive Bays":[],"Removable Storage":[],"Optical Drives":[]}},{"Input / Output":{"Ports":[],"Video Input":["1x DisplayPort","1x DVI-I, c/w DVI to VGA Adapter","1x HDMI"],"Networking":[],"Communications":[],"Audio":[]}},{"Expansion":{"Internal Expansion":[],"Expansion Slots":[]}},{"Operating Systems":{"Operating Systems":[]}},{"Power":{"Power":["90–264V AC, 47–63Hz External Power Supply (Rear Mounted)","9–36V DC Input, Includes External AC Adapter","AC Adapter is Removable","DC Input: 180V – 300V DC","DC Input: 43V – 160V DC"]}},{"Environmental":{"Environmental":["N/A – Not Rated","Operating Humidity: 20% – 80%","Operating Temperature: -10C – +60C (+14F – +140F)","Storage Humidity: 20% – 80%, non-condensing","Storage Temperature: -30C – +85C (-22F – +185F)"]}},{"Compliance":{"Approvals":["CE","CSA C22.2#62368-1:2019 Ed.3","FCC","RoHS","UL 62368-1:2019 Ed.3"],"Compliance Certification":[]}},{"Physical":{"Chassis Description":[],"Housing":[],"Bezel Type":["N/A – Open-Frame","Open-Frame"],"Front Panel":[],"Rear Panel":[],"Cooling Fans":[],"Mounting":[],"Built-in Keyboard/Mouse":[],"Keyboard":"","Backlighting Illuminati":[],"Compliance-Certification":[],"Dimensions":["(W-D-H) 17.8\" x 3.45\" x 14.05\" (452.12mm x 87.64mm x 356.74mm)","NOTE: The depth does not include touch glass, add 12mm to depth for any touch option","Without Mounted Power Supply: (W-D-H) 17.8\" x 2.11\" x 14.05\" (452.12mm x 53.72mm x 356.74mm)"],"Weight":["* Weight may vary depending on configuration","Unit Weight: 9.15 lbs (4.14 kg)*"]}},{"General":{"Compatibility":[],"Included with System":[],"Options":[],"WatchDog Timer":[],"Warranty":["3 Year Parts and Labor"],"Disclaimer":"Note: Specifications are subject to change without notice."}}]
