SV-1705-RM

SKU SV-1705-RM
$2,050.00 to $2,665.00
(0)No Reviews yet
* Product images are for illustration purposes only and may not be an exact representation of the item

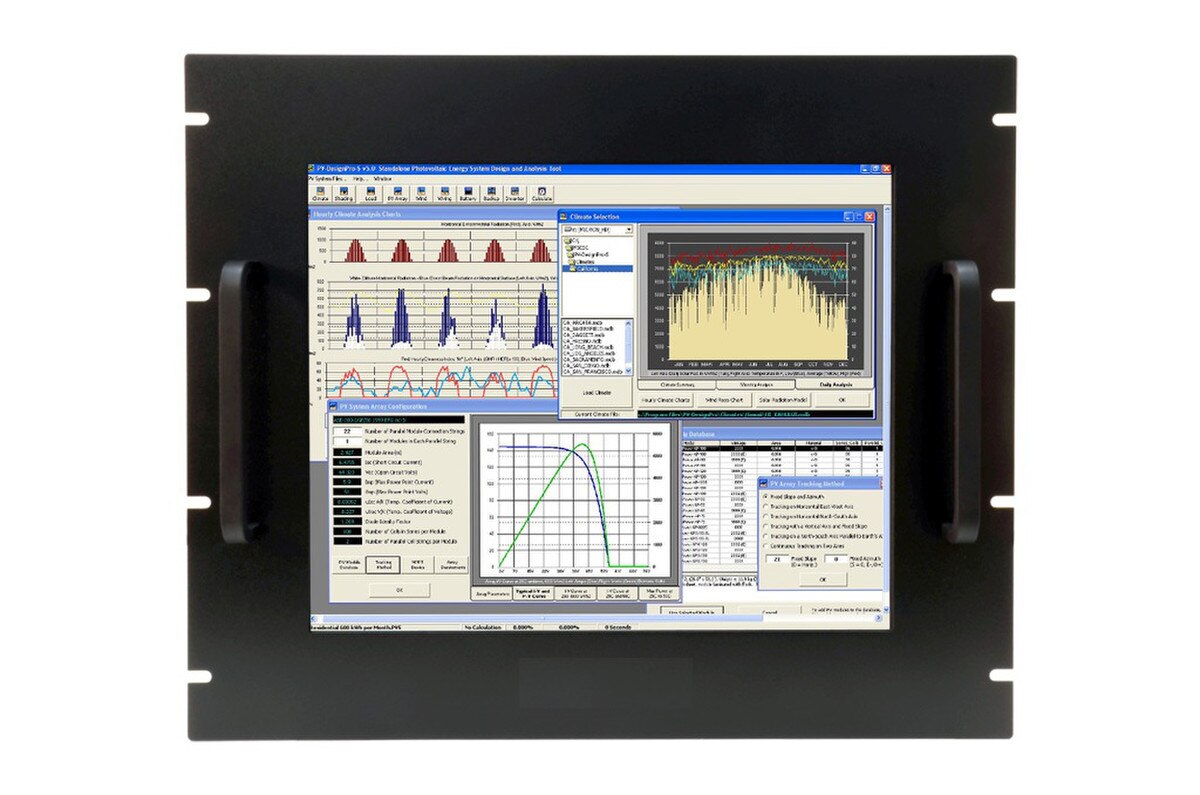

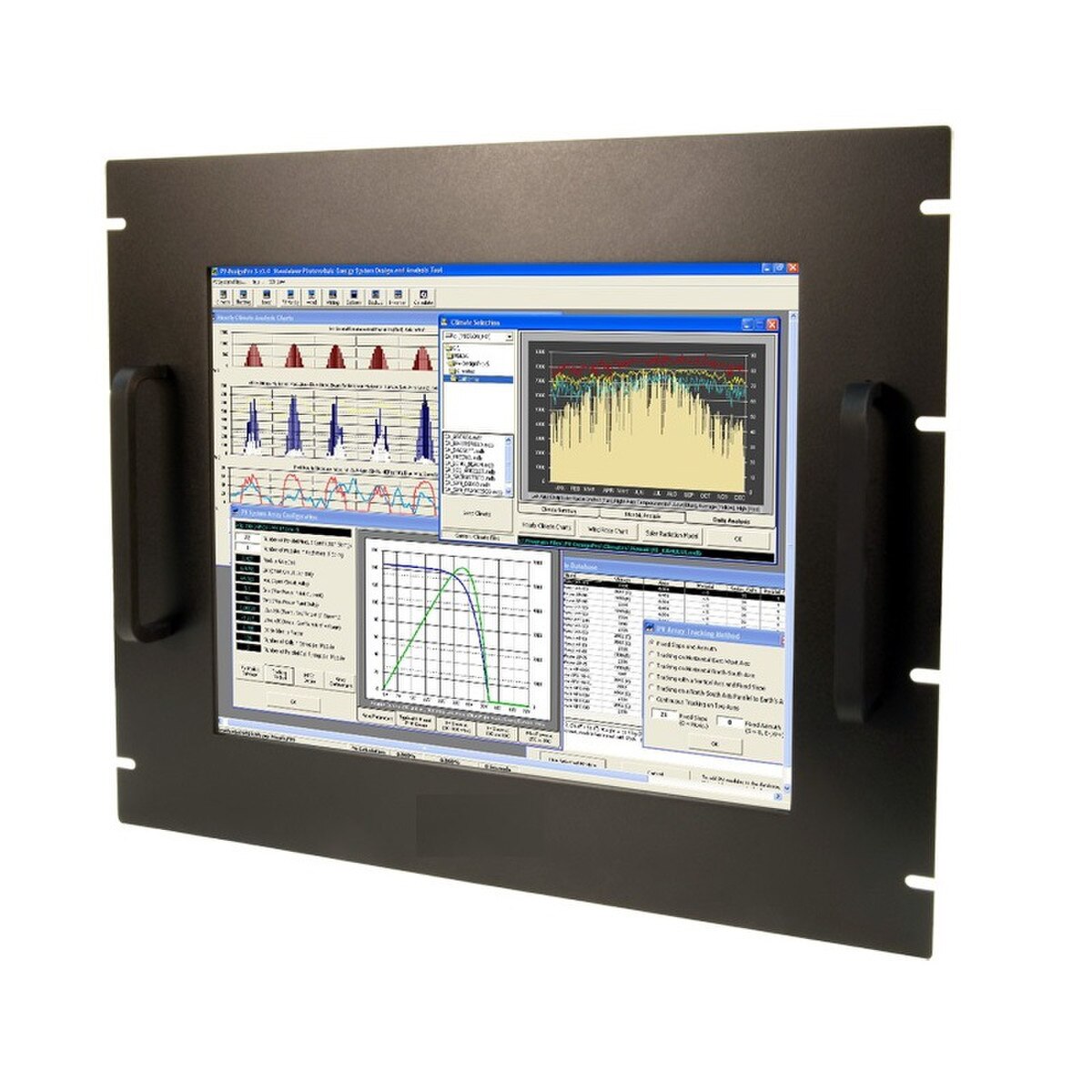

Model: SV-1705-PM-RT-SS, 17" Panel Mount Touchscreen LCD Display.
- 17" diagonal TFT Active Matrix Display c/w LED Backlighting, 1280 x 1024 resolution
- Rack Mount front bezel - DVI-I, HDMI and DisplayPort inputs
- Includes DVI to VGA Adapter
- Rear-mounted touch control panel with On-screen Display
- Dimensions: 19.0"W x 15.72"H x 2.46"D (add 1.34" with AC Adapter)
Power Options:

- (9-36)V DC input with rear-mounted (removable) 100-240V AC Power Supply
- 110V DC (43-160V) input
- 300V DC (180-425V) input

Touchscreen Options:

- No Touch - no protective glass included
- Resistive Touchscreen, serial and USB interfaces

3 Year Warranty

[{"System":{"Processors":[],"Chipset":"","Memory":[],"Hardware Monitor":[],"Key Switch":[],"Cable":[],"TPM Module":""}},{"Display":{"Display":["17.0\" (Diagonal)","350 cd/m2 typical at center (350 Nits)","Viewable Image Size - Horizontal: 13.3\" (338mm), Vertical: 10.64\" (270mm)"],"Aspect Ratio":"5:04","Contrast Ratio":["800:1 (typical)"],"Frequency":["Horizontal: 42.9 – 58.8 kHz (48.363 kHz typical)","Vertical: 55 Hz – 70 Hz (60 Hz typical)"],"Native Resolution":"1280 x 1024 (Auto sync from 640 x 480 to 1280 x 1024)","Response Time":"20ms Rise (Typical), 10ms Fall (Typical)","Pixel Pitch":"0.264mm x 0.264mm","Controls":["Brightness","Color","Image Adjust","Input Source","OSD Lockout","Power, Left, Right, Menu (Rear mounted)","Sound (not applicable)","Tools"],"Touchscreen":"Resistive Touch Screen with USB 2.0 and RS232 Interface","Video":[]}},{"Storage":{"Internal Storage":[],"Drive Bays":[],"Removable Storage":[],"Optical Drives":[]}},{"Input / Output":{"Ports":[],"Video Input":["1x DisplayPort","1x DVI-I, c/w DVI to VGA Adapter","1x HDMI"],"Networking":[],"Communications":[],"Audio":[]}},{"Expansion":{"Internal Expansion":[],"Expansion Slots":[]}},{"Operating Systems":{"Operating Systems":[]}},{"Power":{"Power":["90–264V AC, 47–63Hz External Power Supply (Rear Mounted)","9–36V DC Input, Includes External AC Adapter","AC Adapter is Removable","DC Input: 180V – 300V DC","DC Input: 43V – 160V DC"]}},{"Environmental":{"Environmental":["N/A – Not Rated","Operating Humidity: 20% – 80%","Operating Temperature: -10C – +60C (+14F – +140F)","Storage Humidity: 20% – 80%, non-condensing","Storage Temperature: -30C – +85C (-22F – +185F)"]}},{"Compliance":{"Approvals":["CE","CSA C22.2#62368-1:2019 Ed.3","FCC","RoHS","UL 62368-1:2019 Ed.3"],"Compliance Certification":[]}},{"Physical":{"Chassis Description":[],"Housing":[],"Bezel Type":["Black Baked Enamel (Standard)","Rack Mount"],"Front Panel":[],"Rear Panel":[],"Cooling Fans":[],"Mounting":[],"Built-in Keyboard/Mouse":[],"Keyboard":"","Backlighting Illuminati":[],"Compliance-Certification":[],"Dimensions":["Rack Mount: (W-D-H) 19.0\" x 2.5\"x 15.72\" (482.6mm x 63.68mm x 399.28mm)"],"Weight":["* Weight may vary depending on configuration","Unit Weight: 14.9 lbs (6.76 kg)*"]}},{"General":{"Compatibility":[],"Included with System":[],"Options":[],"WatchDog Timer":[],"Warranty":["3 Year Parts and Labor"],"Disclaimer":"Note: Specifications are subject to change without notice."}}]
