SV-1505L-PM-PCT-HB-SS-USB

SKU SV-1505L-PM-PCT-HB-SS-USB
$2,720.00
(0)No Reviews yet
* Product images are for illustration purposes only and may not be an exact representation of the item
Back

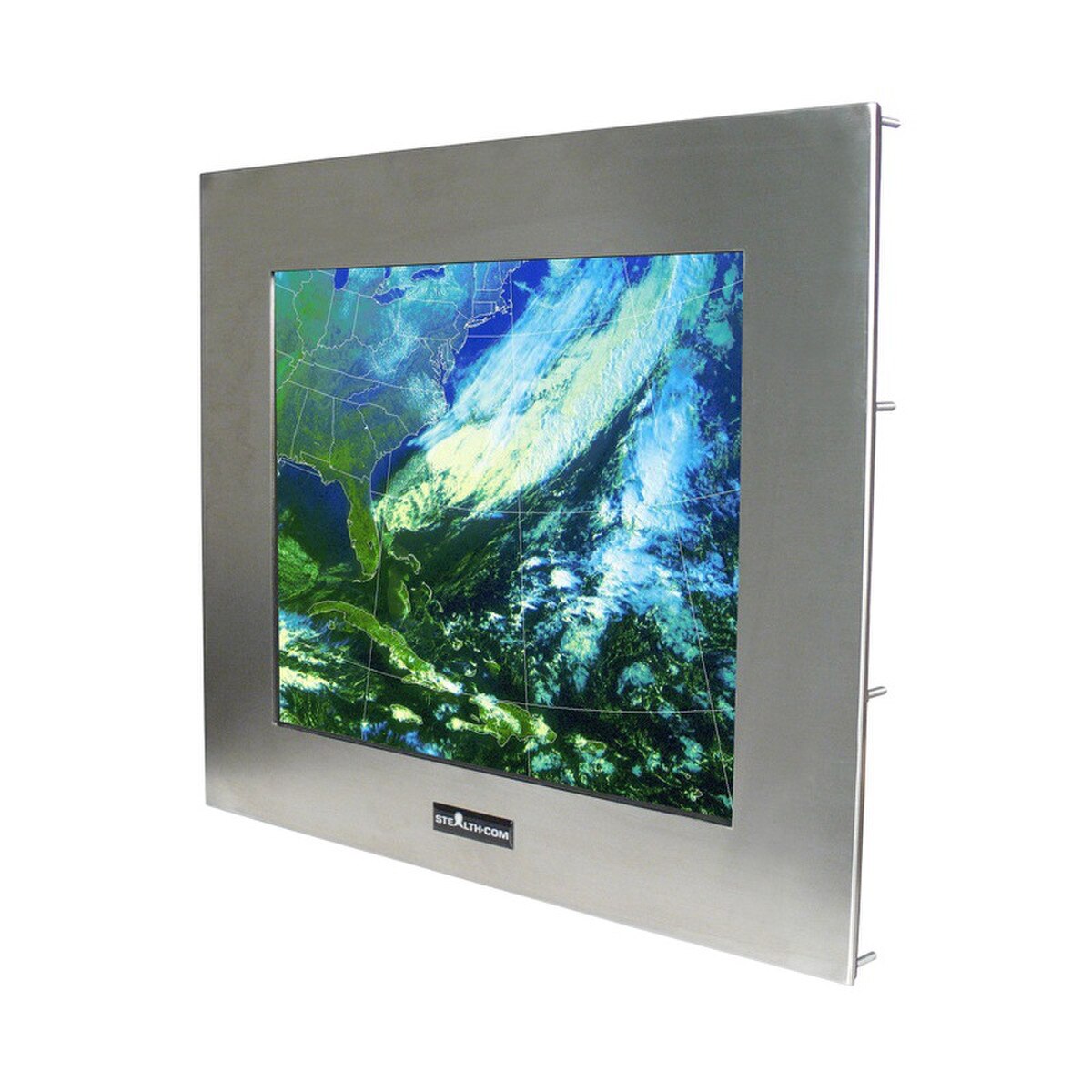

SV-1505L-PM-PCT-HB-SS-USB – 15" Sunlight Readable Panel Mount Display

The SV-1505L-PM-PCT-HB-SS-USB delivers exceptional 1600-nit brightness with automatic light sensor adjustment in a NEMA 4X stainless steel design. With 10-point projected capacitive touchscreen and extended temperature operation (-20°C to +70°C), this display excels in outdoor and high-ambient-light environments.


Key Benefits:

-Exceptional 1600-nit sunlight-readable brightness with external light sensor for automatic adjustment

-10-point projected capacitive (PCAP) multi-touch with USB interface for modern touch interaction

-NEMA 4X stainless steel bezel with extended temperature operation (-20°C to +70°C)

-LED-backlit display with 1024x768 resolution and multiple video inputs (HDMI, DVI-I, DisplayPort)

-Ultra-slim profile (1.5"D without adapter) with 2-year warranty


Applications:

Outdoor kiosks, marine bridge displays, vehicle-mounted displays, direct-sunlight installations, food processing with sunlight exposure, and high-ambient-light industrial control.

Back
[{"System":{"Processors":[],"Chipset":"","Memory":[],"Hardware Monitor":[],"Key Switch":[],"Cable":[],"TPM Module":""}},{"Display":{"Display":["Viewable Image Size - Horizontal: 11.97\" (304mm), Vertical: 8.98\" (228mm)"],"Aspect Ratio":"4:03","Contrast Ratio":["3800:1 (typical)"],"Frequency":[],"Native Resolution":"1024 x 768","Response Time":"23ms (Typical)","Pixel Pitch":"0.297mm x 0.297mm","Controls":["Brightness, Contrast, H/V Position, Color, Phase, Clock, Language, etc. (OSD)","Power Switch, Menu, +, – (Rear mounted)"],"Touchscreen":"","Video":[]}},{"Storage":{"Internal Storage":[],"Drive Bays":[],"Removable Storage":[],"Optical Drives":[]}},{"Input / Output":{"Ports":[],"Video Input":["1x DisplayPort","1x DVI-I","1x HDMI"],"Networking":[],"Communications":[],"Audio":[]}},{"Expansion":{"Internal Expansion":[],"Expansion Slots":[]}},{"Operating Systems":{"Operating Systems":[]}},{"Power":{"Power":["100-240V AC, 50/60Hz, 60W Rear-Mounted (Removable) Power Supply","12V DC Power Jack at LCD"]}},{"Environmental":{"Environmental":["NEMA 4X / IP66 Front Panel","Operating Humidity: 20% – 90%","Operating Temperature: -20C – +70C (-4F – +158F)","Storage Temperature: -20C – +60C (-4F – +140F)"]}},{"Compliance":{"Approvals":[],"Compliance Certification":[]}},{"Physical":{"Chassis Description":[],"Housing":[],"Bezel Type":["Panel Mount","Stainless Steel – Brushed #304 (Standard)"],"Front Panel":[],"Rear Panel":[],"Cooling Fans":[],"Mounting":[],"Built-in Keyboard/Mouse":[],"Keyboard":"","Backlighting Illuminati":[],"Compliance-Certification":[],"Dimensions":["(W-D-H) 16.38\" x 1.46\" x 14.00\" (415.93mm x 37.08mm x 355.60mm)","Add 1.49” (38.0mm) to depth with rear mounted AC Adapter"],"Weight":["Add 0.75 lbs (0.34 kg) for rear-mounted (removable) AC Power Adapter","Unit Weight: 9.35 lbs (4.24 kg)"]}},{"General":{"Compatibility":[],"Included with System":[],"Options":[],"WatchDog Timer":[],"Warranty":["2 Year Parts & Labor"],"Disclaimer":"Note: Specifications are subject to change without notice."}}]
