SV-1505-RM

SKU SV-1505-RM
STORE DESCRIPTION:

- 15" diagonal TFT Active Matrix Display, 1024 x 768 resolution
- DVI-I, HDMI and DisplayPort inputs, DVI to VGA Adapter
- Dimensions (No Touch): 19.00"W x 12.22"H x 2.06"D (Add 1.33" to depth with rear mounted AC Adapter)
- Dimensions (With Touch): 19.00"W x 12.22"H x 2.30"D (Add 1.33" to depth with rear mounted AC Adapter)
Power Options:

- (9-36)V DC input with rear-mounted (removable) 100-240V AC Power Supply
- 43-160V DC input
- 180-300V DC input

Touchscreen Options:

- No Touch - no protective glass included
- Resistive Touchscreen, serial and USB interfaces

5 Year Warranty

$2,870.00 to $3,735.00
(0)No Reviews yet
* Product images are for illustration purposes only and may not be an exact representation of the item
Back

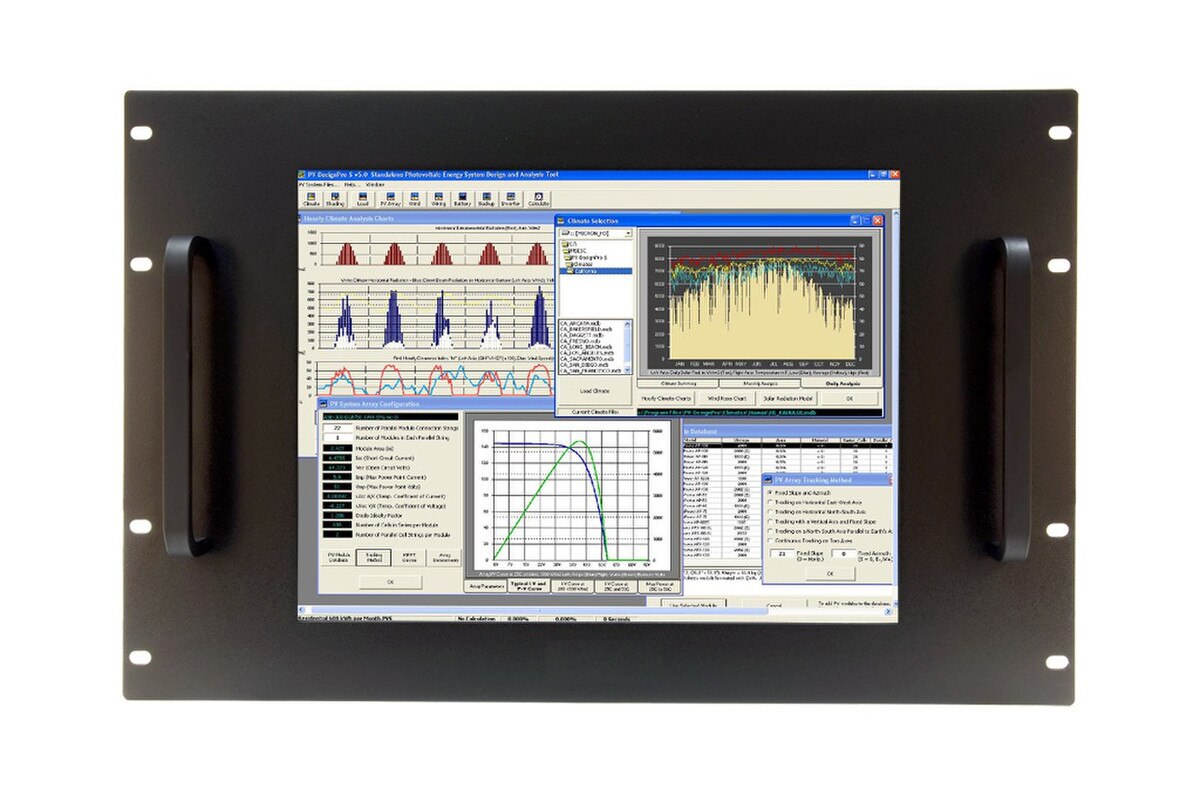

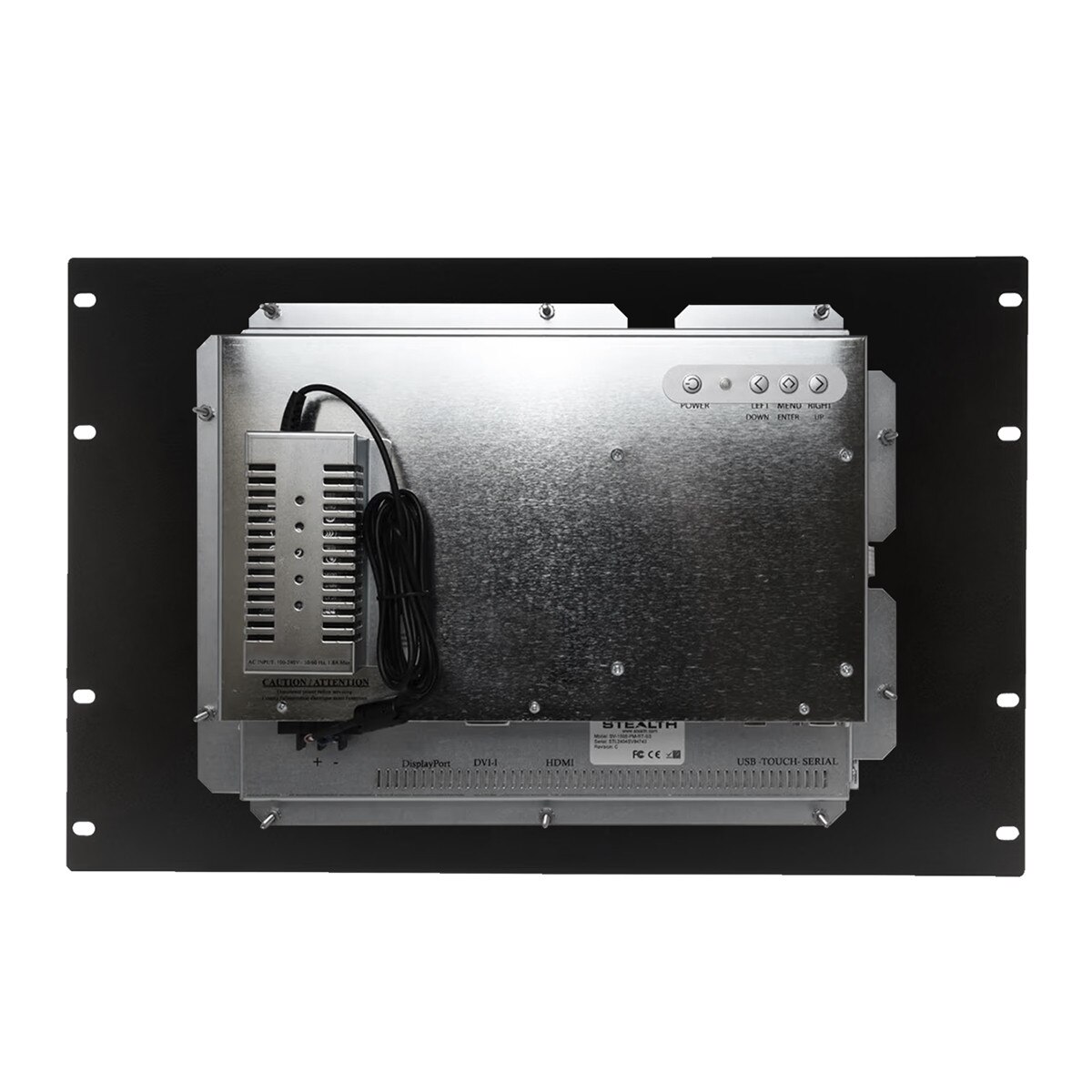

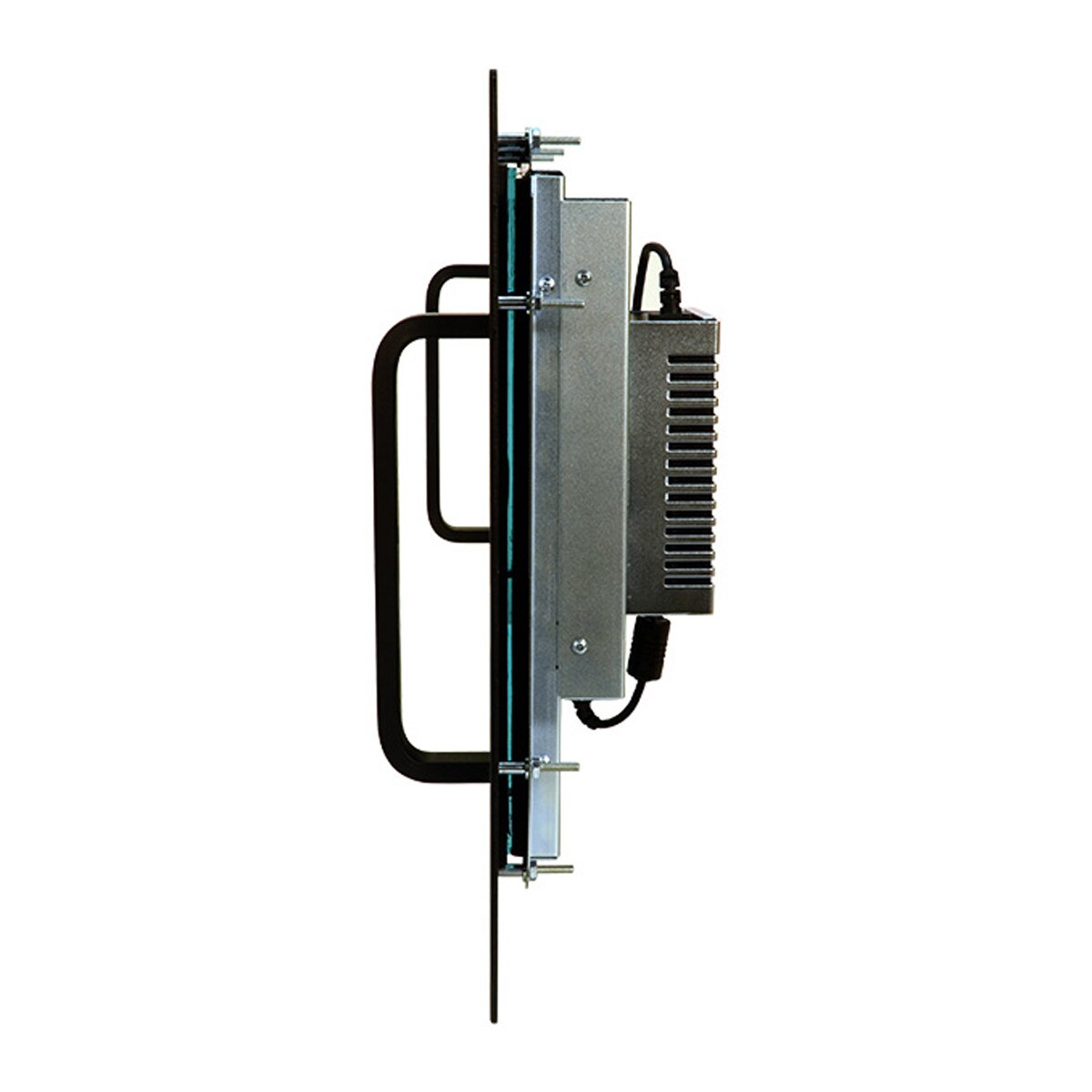

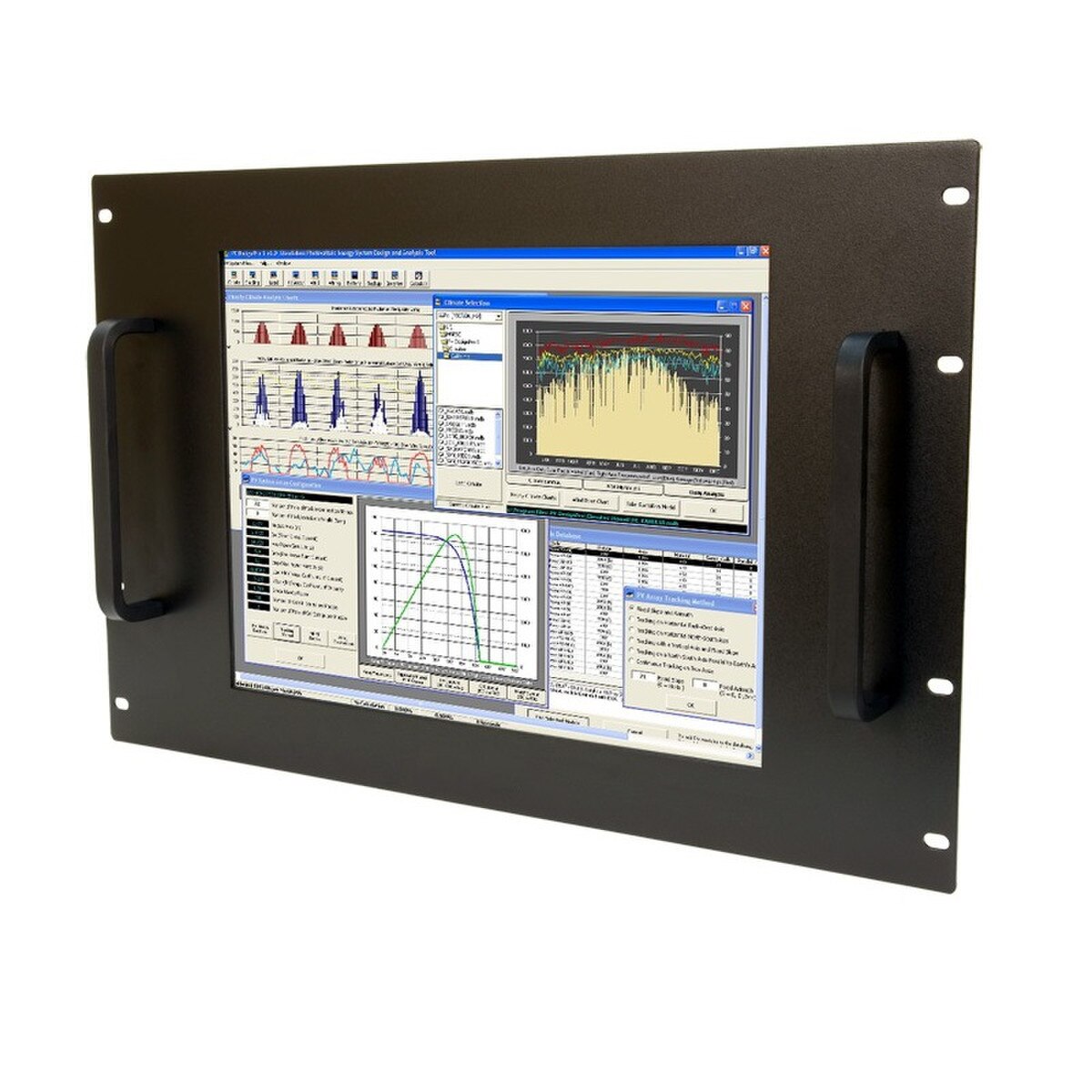

SV-1505-RM – 15" Rack Mount Industrial Display

The SV-1505-RM provides standard 19" rack mounting with 1024x768 resolution and optional resistive touchscreen. Its flexible power options and extended temperature capability make it ideal for rack-based industrial control systems and data center applications.


Key Benefits:

-Standard 19" rack-mount design for easy integration into equipment racks and control rooms

-Optional resistive touchscreen with serial and USB interfaces for interactive applications

-Flexible power options: AC adapter, 43-160V DC, or 180-300V DC for industrial rack installations

-Multiple video inputs (DVI-I, HDMI, DisplayPort) with included VGA adapter

-Extended temperature operation (-10°C to +60°C) with compact 2U-compatible depth


Applications:

Rack-mounted control systems, data center KVM displays, industrial automation racks, telecommunications equipment monitoring, and server room visualization.
