SV-1505-PM-RT

SKU SV-1505-PM-RT
$2,235.00 to $2,595.00
(0)No Reviews yet
* Product images are for illustration purposes only and may not be an exact representation of the item

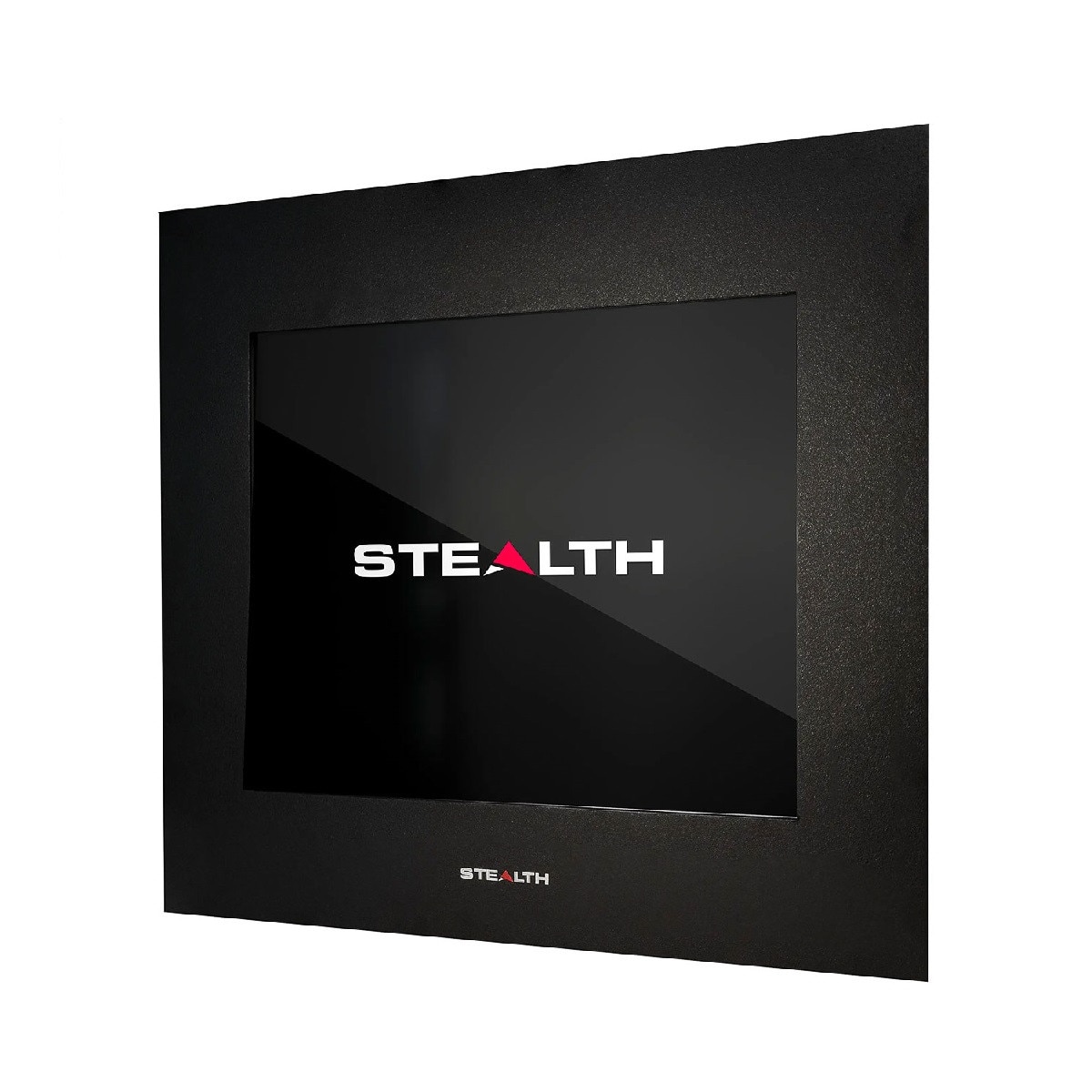

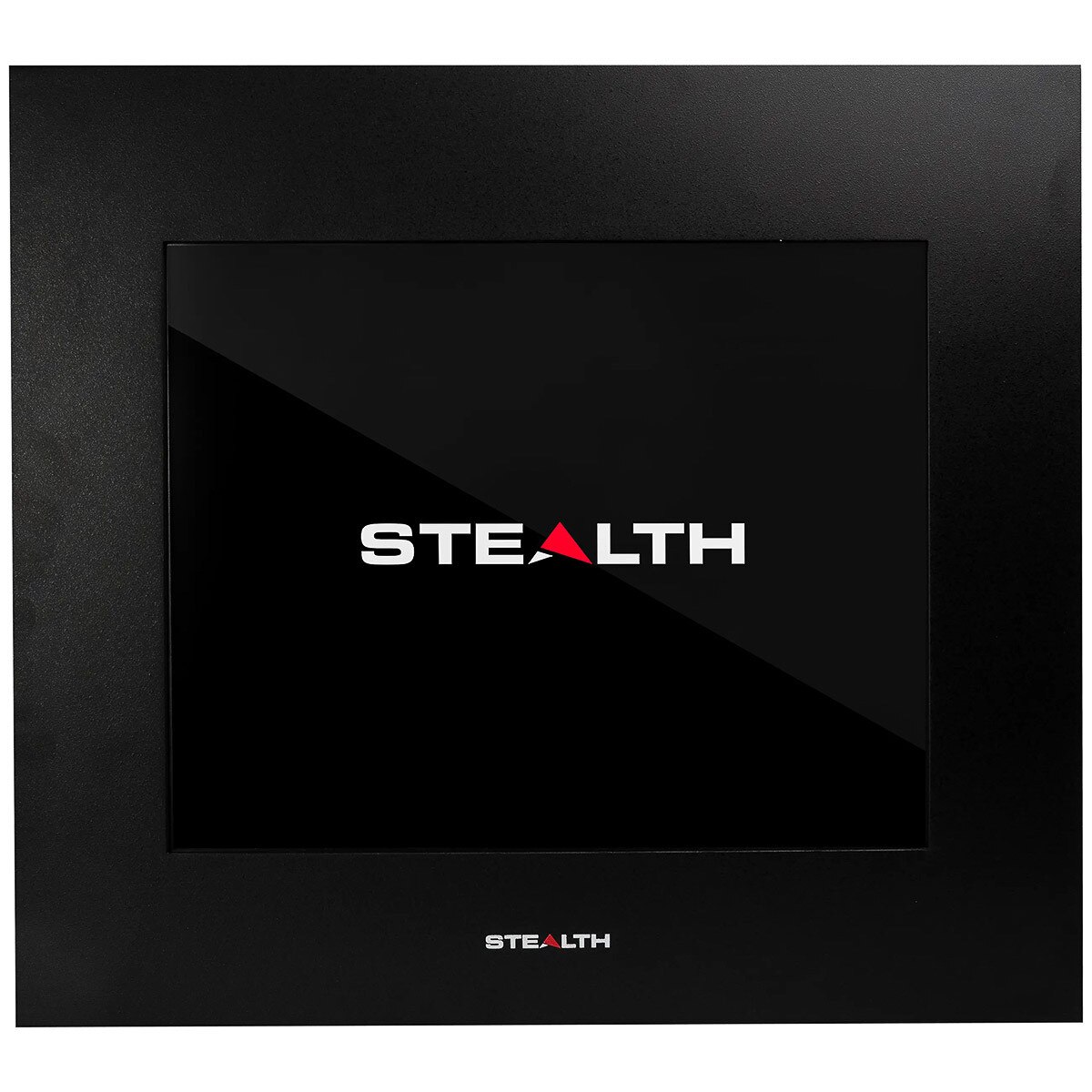

Model: SV-1505-PM-RT, 15" Panel Mount Touchscreen LCD Display.
- 15" diagonal TFT Active Matrix Display, 1024 x 768 resolution
- NEMA 4 Panel Mount front bezel
- Resistive Touchscreen, serial and USB interfaces

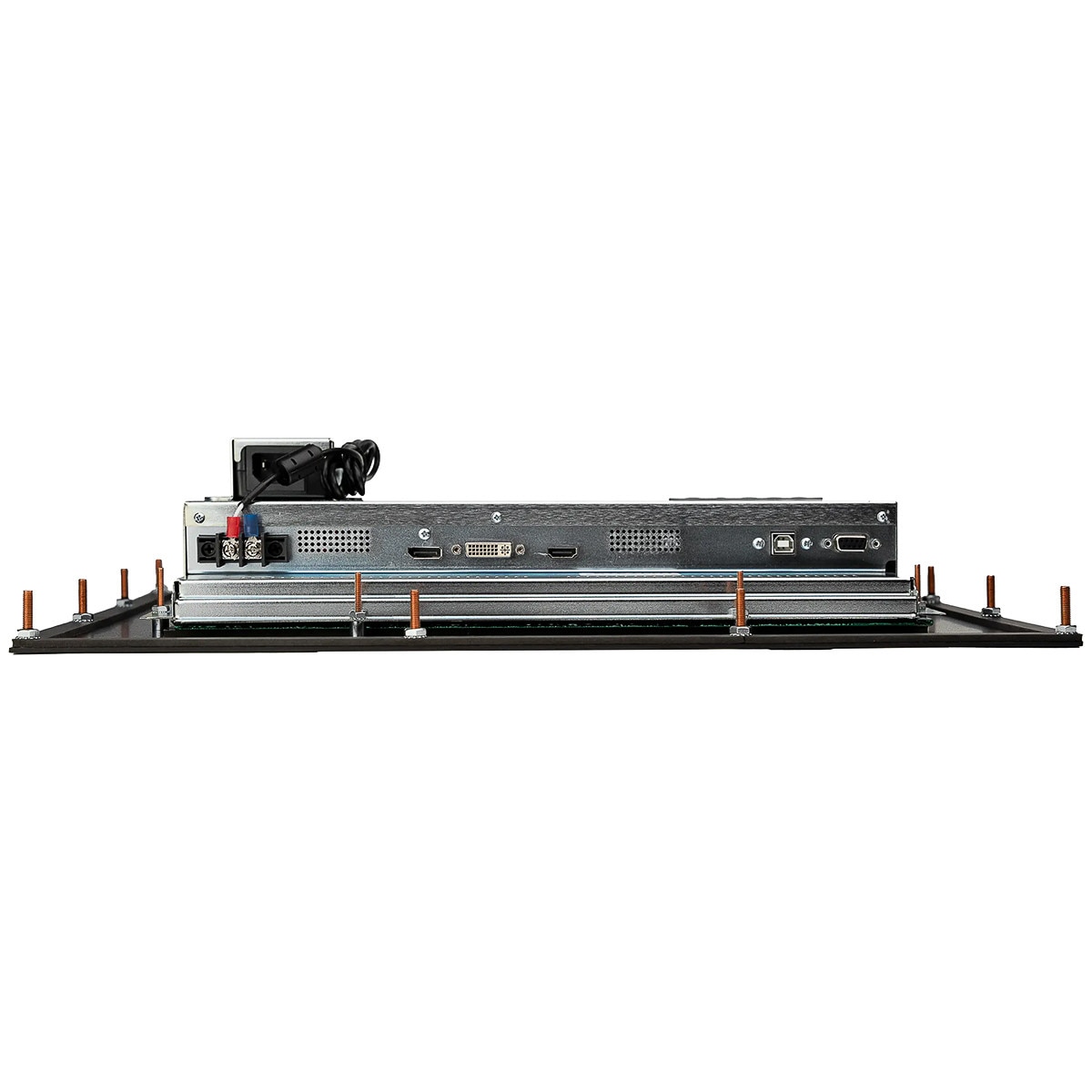

- DVI-I, HDMI and DisplayPort inputs
- Includes DVI to VGA Adapter

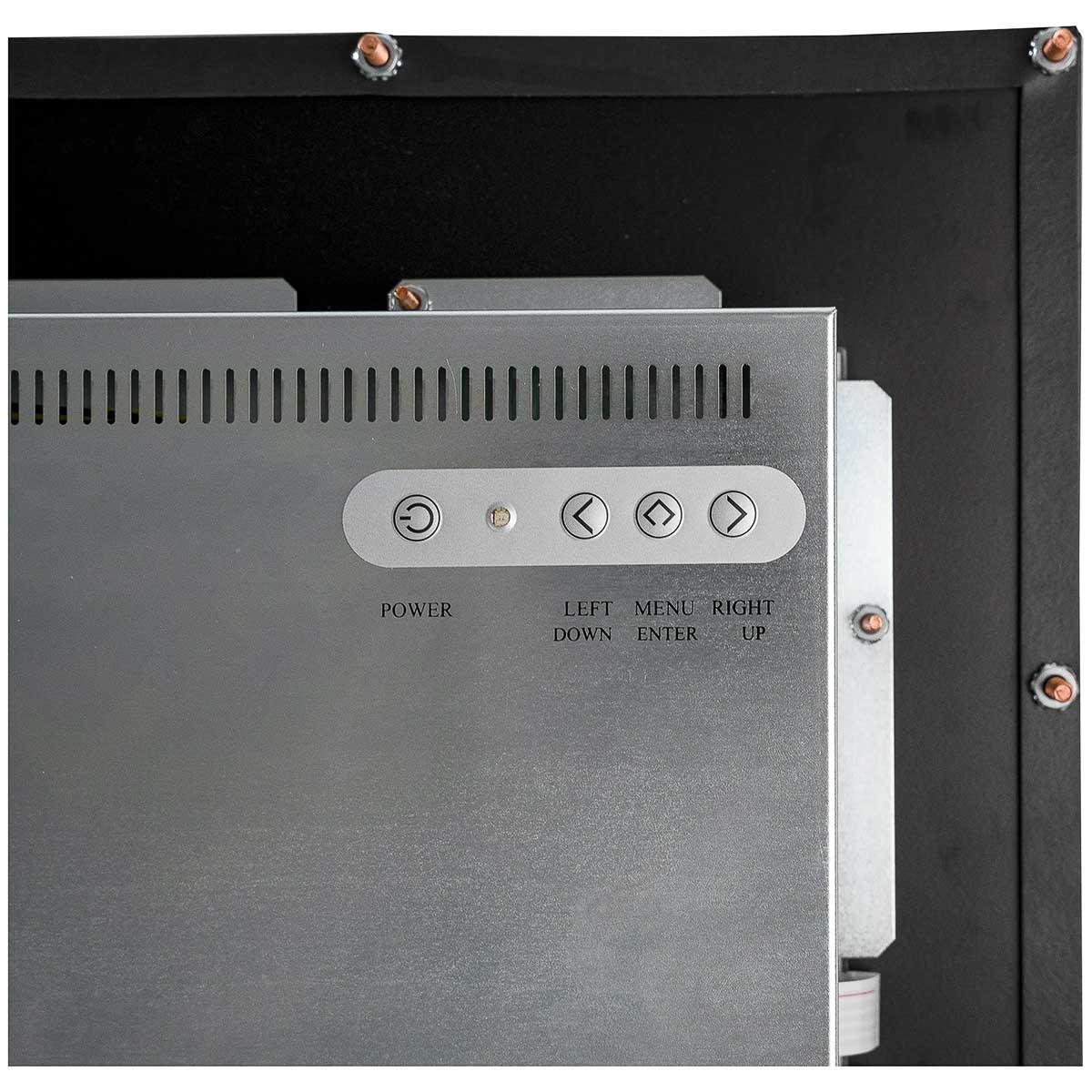

- Rear-mounted control panel with On-screen Display
- Dimensions: 16.38"W x 14.0"H x 2.31"D (Add 1.33" to depth with rear mounted AC Adapter)
Power Options:

- (9-36)V DC input with rear-mounted (removable) 100-240V AC Power Supply
- 43-160V DC input
- 180-300V DC input

3 Year Warranty

[{"System":{"Processors":[],"Chipset":"","Memory":[],"Hardware Monitor":[],"Key Switch":[],"Cable":[],"TPM Module":""}},{"Display":{"Display":["15.0\" (Diagonal)","300 cd/m2 typical at center (300 Nits)","Viewable Image Size - Horizontal: 11.97\" (304mm), Vertical: 8.98\" (228mm)"],"Aspect Ratio":"4:03","Contrast Ratio":["2000:1 (typical)"],"Frequency":["Horizontal: 42.9 – 58.8 kHz (48.363 kHz typical)","Vertical: 55 Hz – 70 Hz (60 Hz typical)"],"Native Resolution":"1024 x 768 (Auto sync from 800 x 600 to 1024 x 768)","Response Time":"16ms Rise (Typical), 7ms Fall (Typical)","Pixel Pitch":"0.297mm x 0.297mm","Controls":["Brightness","Color","Image Adjust","Input Source","OSD Lockout","Power, Left, Right, Menu (Rear mounted)","Sound (not applicable)","Tools"],"Touchscreen":"Resistive Touch Screen with USB 2.0 and RS232 Interface","Video":[]}},{"Storage":{"Internal Storage":[],"Drive Bays":[],"Removable Storage":[],"Optical Drives":[]}},{"Input / Output":{"Ports":[],"Video Input":["1x DisplayPort","1x DVI-I","1x HDMI","VGA via DVI-VGA Adapter (Included)"],"Networking":[],"Communications":[],"Audio":[]}},{"Expansion":{"Internal Expansion":[],"Expansion Slots":[]}},{"Operating Systems":{"Operating Systems":[]}},{"Power":{"Power":["90–264V AC, 47–63Hz External Power Supply (Rear Mounted)","AC Adapter is Removable","DC Input: 180V – 300V DC","DC Input: 43V – 160V DC"]}},{"Environmental":{"Environmental":["NEMA 4 / IP65 Front Panel","Operating Humidity: 20% – 80%","Operating Temperature: -10C – +60C (+14F – +140F)","Storage Humidity: 20% – 80%, non-condensing","Storage Temperature: -30C – +85C (-22F – +185F)"]}},{"Compliance":{"Approvals":["CE","CSA C22.2#62368-1:2019 Ed.3","FCC","RoHS","UL 62368-1:2019 Ed.3"],"Compliance Certification":[]}},{"Physical":{"Chassis Description":[],"Housing":[],"Bezel Type":["Black Baked Enamel (Standard)","Panel Mount"],"Front Panel":[],"Rear Panel":[],"Cooling Fans":[],"Mounting":[],"Built-in Keyboard/Mouse":[],"Keyboard":"","Backlighting Illuminati":[],"Compliance-Certification":[],"Dimensions":["(W-D-H) 16.38\" x 2.31\" x 14.00\" (415.93mm x 58.68mm x 355.60mm)","Add 1.33” (33.78mm) to depth with rear mounted AC Adapter"],"Weight":["Unit Weight: 12 lbs (5.4 kg)"]}},{"General":{"Compatibility":[],"Included with System":[],"Options":[],"WatchDog Timer":[],"Warranty":["3 Year Parts and Labor"],"Disclaimer":"Note: Specifications are subject to change without notice."}}]
