FR-2002-17

SKU FR-2002-17
$4,075.00 to $6,700.00
(0)No Reviews yet
$4,075.00 to $6,700.00
* Product images are for illustration purposes only and may not be an exact representation of the item

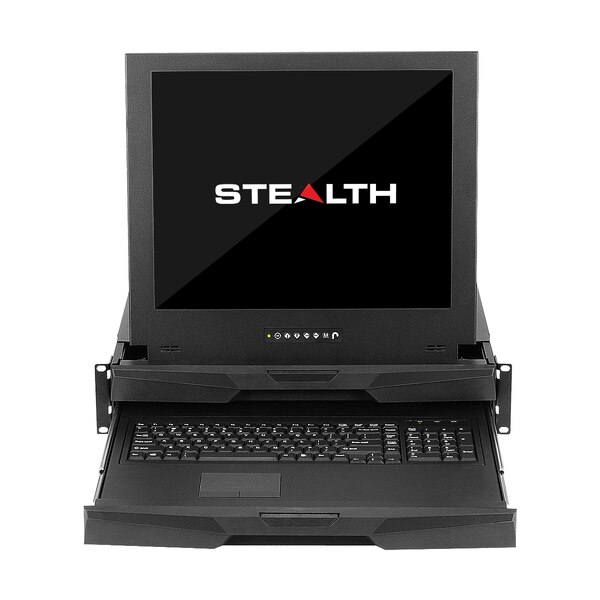

The FR-2002-17 offers a convenient rackmount console solution combining a high-quality 17″ LED-backlit LCD display with an independent-sliding keyboard drawer. Designed for tight spaces and single-person installation, it delivers flexible video and KVM options in a compact 2U footprint.

Key Benefits:

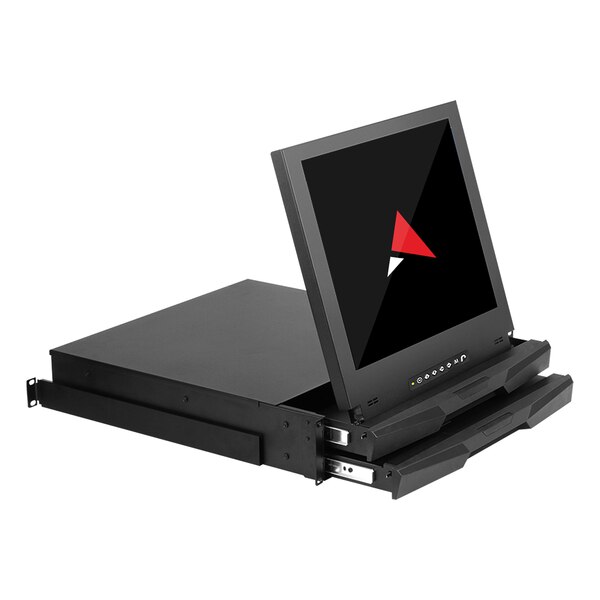

- Independent dual-slide design maximizes flexibility—operators can monitor data while keeping the keyboard stowed away.

- Compact footprint allows installation in tight racks, optimizing valuable space in crowded environments.

- Modular keyboard and video options adapt to specific workflows, ensuring compatibility with a wide range of systems.

- Rugged, easy-to-install construction reduces setup time and maintenance, keeping operations running reliably.

Applications:

Ideal for data centers, IT infrastructure, broadcast facilities, control rooms, and compact rack environments where space-saving, modular design and video flexibility are essential.

[{"System":{"Processors":[],"Chipset":"","Memory":[],"Hardware Monitor":[],"Key Switch":[],"Cable":[],"TPM Module":""}},{"Display":{"Display":["1280 x 1024 resolution","17.0\" (Diagonal)","250 cd/m2 typical at center (250 Nits)"],"Aspect Ratio":"4:03","Contrast Ratio":[],"Frequency":[],"Native Resolution":"","Response Time":"5ms (Typical)","Pixel Pitch":"0.264mm x 0.264mm","Controls":["Brightness, Contrast, Auto Adjust, Image Position, Image Adjust, Color Adjust, Display Mode, Language Select, OSM Lockout, OSM Time-out (OSD)"],"Touchscreen":"","Video":[]}},{"Storage":{"Internal Storage":[],"Drive Bays":[],"Removable Storage":[],"Optical Drives":[]}},{"Input / Output":{"Ports":[],"Video Input":["CAT6: 16x RJ45 connectors","CAT6: 8x RJ45 connectors"],"Networking":[],"Communications":[],"Audio":[]}},{"Expansion":{"Internal Expansion":[],"Expansion Slots":[]}},{"Operating Systems":{"Operating Systems":[]}},{"Power":{"Power":["AC Input: 120–240V AC, 50/60Hz","Optional 12, 24, 48, 125 and more DC input available"]}},{"Environmental":{"Environmental":["Operating Altitude: 16,000 feet (5,000m)","Operating Humidity: 20% – 90%","Operating: -20C to +60C (-4F to +140F)","Operating: 0C to +55C (32F to +131F)","Storage Altitude: 0 – 40,000 Feet (0 – 12,000m)","Storage Humidity: 5% – 90%, non-condensing"]}},{"Compliance":{"Approvals":["CE","RoHS"],"Compliance Certification":[]}},{"Physical":{"Chassis Description":["19\" Rackmount steel chassis","2U, 3.5\" High, 19\" EIA rackmount"],"Housing":[],"Bezel Type":[],"Front Panel":[],"Rear Panel":[],"Cooling Fans":[],"Mounting":[],"Built-in Keyboard/Mouse":["104 Keys","2 Button Touch Pad","USB connector for Keyboard and Mouse"],"Keyboard":"","Backlighting Illuminati":[],"Compliance-Certification":[],"Dimensions":["(W-D-H) 17.4\" x 18.9\" x 3.5\" (442 x 480 x 55 mm)"],"Weight":["Unit Weight: 46 lbs (21 kg)"]}},{"General":{"Compatibility":[],"Included with System":[],"Options":["Contact us with any request for configuration"],"WatchDog Timer":[],"Warranty":["3 Year Limited Warranty, Standard"],"Disclaimer":"Note: Specifications are subject to change without notice."}}]
