FR-1010-17W
* Product images are for illustration purposes only and may not be an exact representation of the item

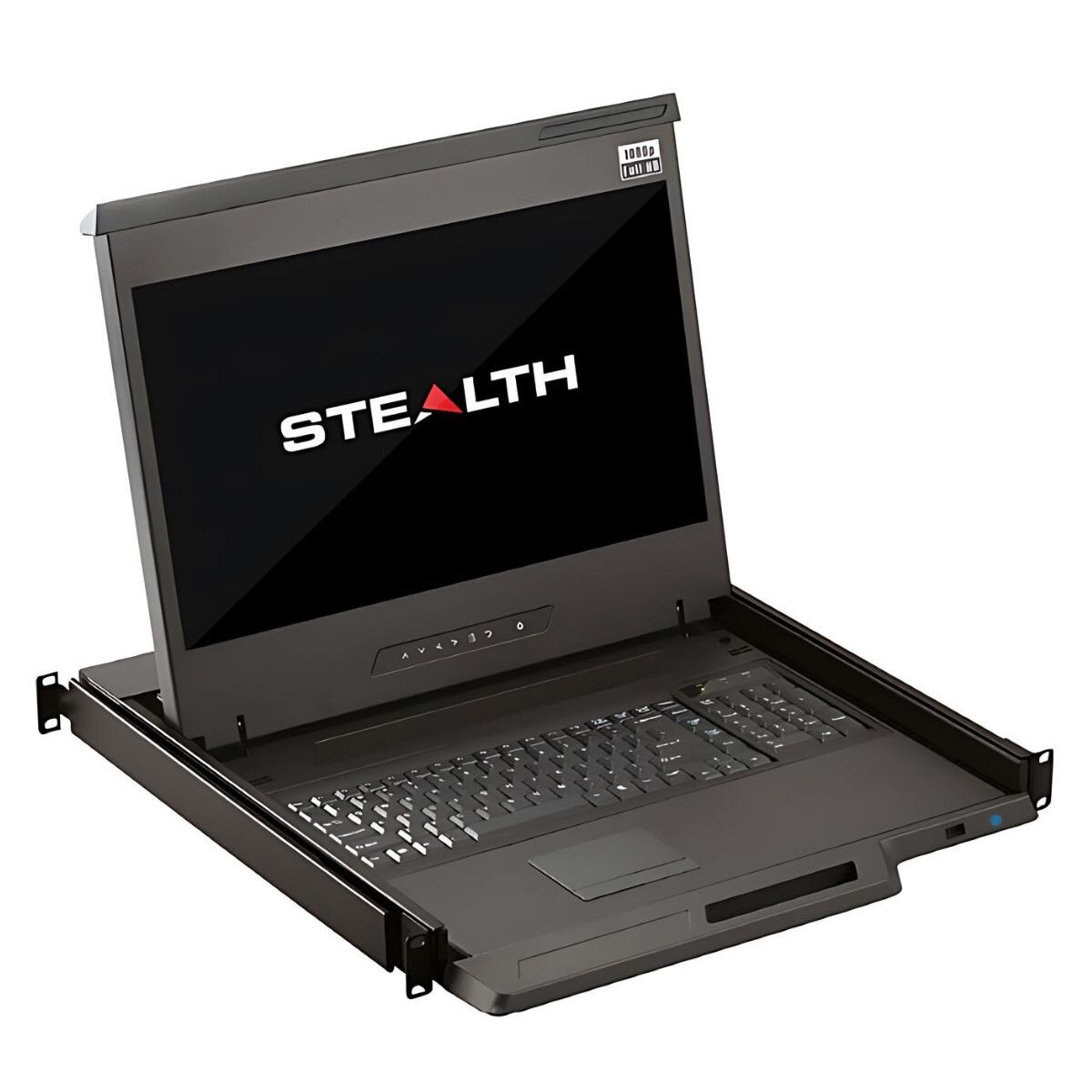

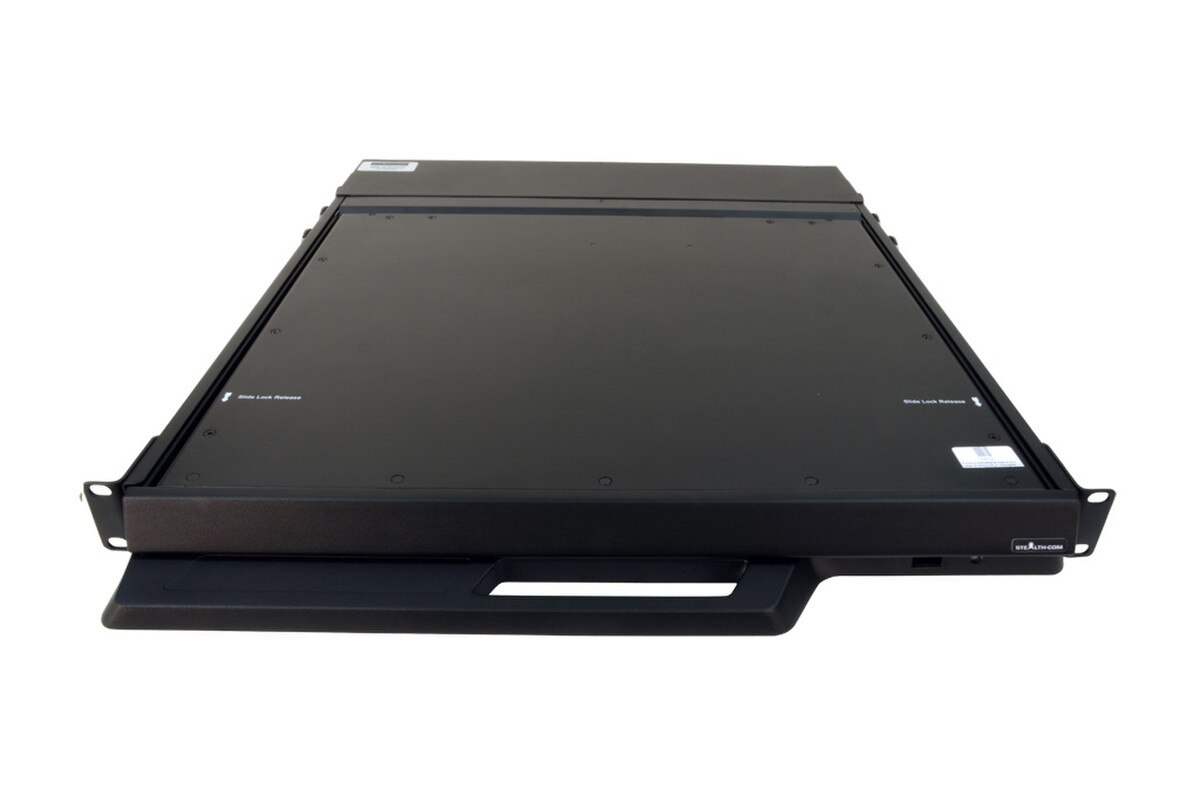

Model: FR-1010-17W, Rack Mount Keyboard and LCD Display
- 17.3" diagonal Widescreen LCD Monitor c/w adjustable display angle
- Full HD with 1080p resolution supported, 300 nit brightness, internal speaker
- 104-button Windows compatible keyboard c/w 2-button Touch Pad pointing device
- Includes 19" black rack mount drawer c/w sliderails and aluminum front handle
- Options:

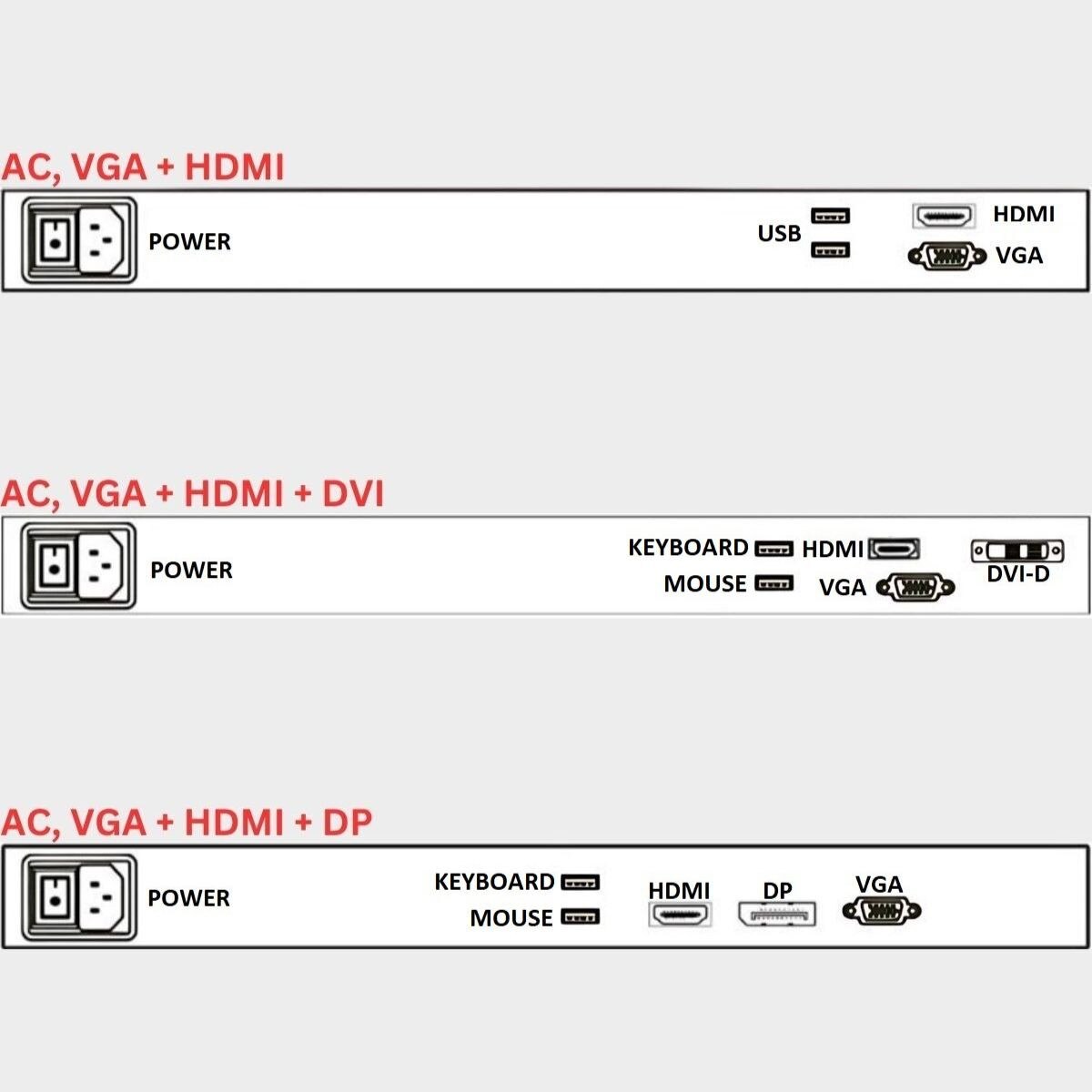

- DP Models: includes 3x 6’ cables c/w 1x DisplayPort w/ dual USB, 1x HDMI w/ dual USB, and 1x VGA w/dual USB
- DVI Models: includes 3x 6’ cables c/w 1x DVI-D w/ dual USB, 1x HDMI w/ dual USB, and 1x VGA w/dual USB
- VGA Models: includes 2x 6’ cables c/w 1x HDMI w/ dual USB, and 1x VGA w/dual USB (no speaker)

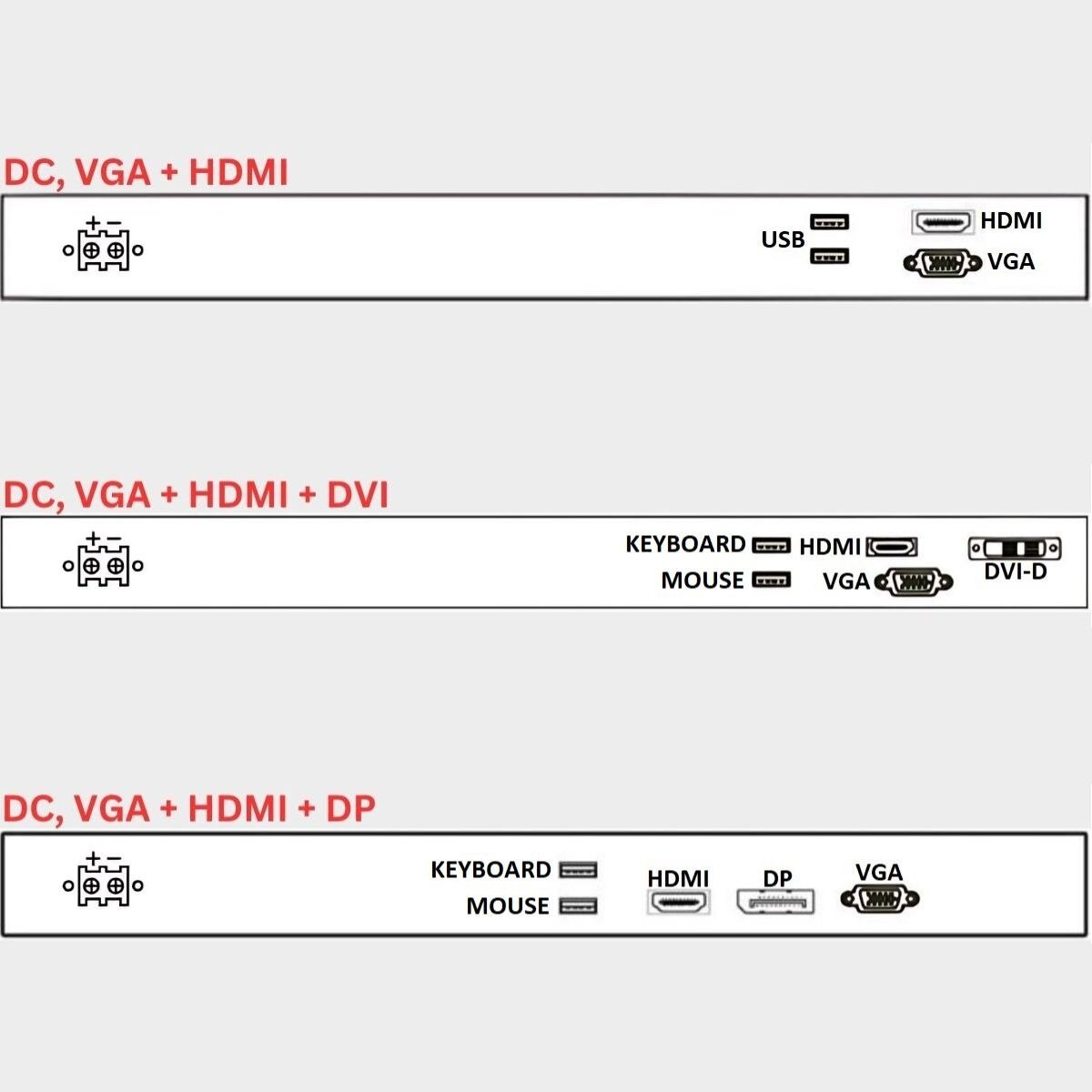

- Internal AC 100-240V or DC: 12V, 24V, 48V, 125V or 250V Power Supply
- Dimensions: 19.0"W x 1.75"H x 20.9"D
3 Year Warranty
[{"System":{"Processors":[],"Chipset":"","Memory":[],"Hardware Monitor":[],"Key Switch":[],"Cable":[],"TPM Module":""}},{"Display":{"Display":["17.3\" (Diagonal)","300 cd/m2 typical at center (300 Nits)","Viewable Image Size - Horizontal: 15.04\" (382mm), Vertical: 8.46\" (215mm)","Viewing Angle: 178° / 178° (H / V) – (Without Touchscreen)"],"Aspect Ratio":"16:09","Contrast Ratio":["1000:1 (typical)"],"Frequency":[],"Native Resolution":"1920 x 1080 (Auto sync from 640 x 480 to 1920 x 1080)","Response Time":"25ms (Typical)","Pixel Pitch":"0.199mm x 0.199mm","Controls":["Brightness, Contrast, H/V Position, Color, Phase, Clock, Language, etc."],"Touchscreen":"","Video":[]}},{"Storage":{"Internal Storage":[],"Drive Bays":[],"Removable Storage":[],"Optical Drives":[]}},{"Input / Output":{"Ports":[],"Video Input":["1x VGA/HD15, 1x DVI-D, and 1x HDMI inputs with Audio In/Out, Dual 2W Speakers","1x VGA/HD15, 1x HDMI, and 1x DisplayPort with Audio In/Out, Dual 2W Speakers","1x VGA/HD15, and 1x HDMI Inputs"],"Networking":[],"Communications":[],"Audio":["2×2 W Speaker"]}},{"Expansion":{"Internal Expansion":[],"Expansion Slots":[]}},{"Operating Systems":{"Operating Systems":[]}},{"Power":{"Power":["Internal 100–240V AC, 50/60Hz Power Supply","Internal 125V DC with Terminal Block","Internal 12V DC with Terminal Block","Internal 24V DC with Terminal Block","Internal 250V DC with Terminal Block","Internal 48V DC with Terminal Block","Power Consumption: Max. 48W, Standby 5W"]}},{"Environmental":{"Environmental":["Operating Humidity: 20% – 90%","Operating Temperature: 0C – +55C (+32F – +131F)","Shock: 10G acceleration (11ms duration)","Storage Humidity: 5% – 90%, non-condensing","Storage Temperature: -20C – +60C (-4F – +140F)","Vibration: 10 – 300Hz, 0.5G RMS, random vibration"]}},{"Compliance":{"Approvals":[],"Compliance Certification":[]}},{"Physical":{"Chassis Description":["19\" Rackmount steel chassis","1U , 1.75\" or 44.5mm high"],"Housing":[],"Bezel Type":[],"Front Panel":[],"Rear Panel":[],"Cooling Fans":[],"Mounting":[],"Built-in Keyboard/Mouse":["104 Keys","2 Button Touch Pad","Dual USB connectors for Keyboard and Mouse"],"Keyboard":"","Backlighting Illuminati":[],"Compliance-Certification":[],"Dimensions":["(W-D-H) 19.0\" x 18.9\" x 1.75\" (482.6mm x 480mm x 44.5mm) standard - AC with DisplayPort and HDMI","(W-D-H) 19.0\" x 20.9\" x 1.75\" (482.6mm x 530.9mm x 44.5mm) with DC Power"],"Weight":["Unit Weight: 23.8 lbs (10.8 kg)"]}},{"General":{"Compatibility":[],"Included with System":[],"Options":["DP + HDMI + VGA with integrated Audio & Dual 2W Speakers","HDMI + DVI-D + VGA with integrated Audio & Dual 2W Speakers","KVM version with 8 or 16 inputs available"],"WatchDog Timer":[],"Warranty":["2 Year Parts & Labor"],"Disclaimer":"Note: Specifications are subject to change without notice."}}]
