FR-1002-19
* Product images are for illustration purposes only and may not be an exact representation of the item

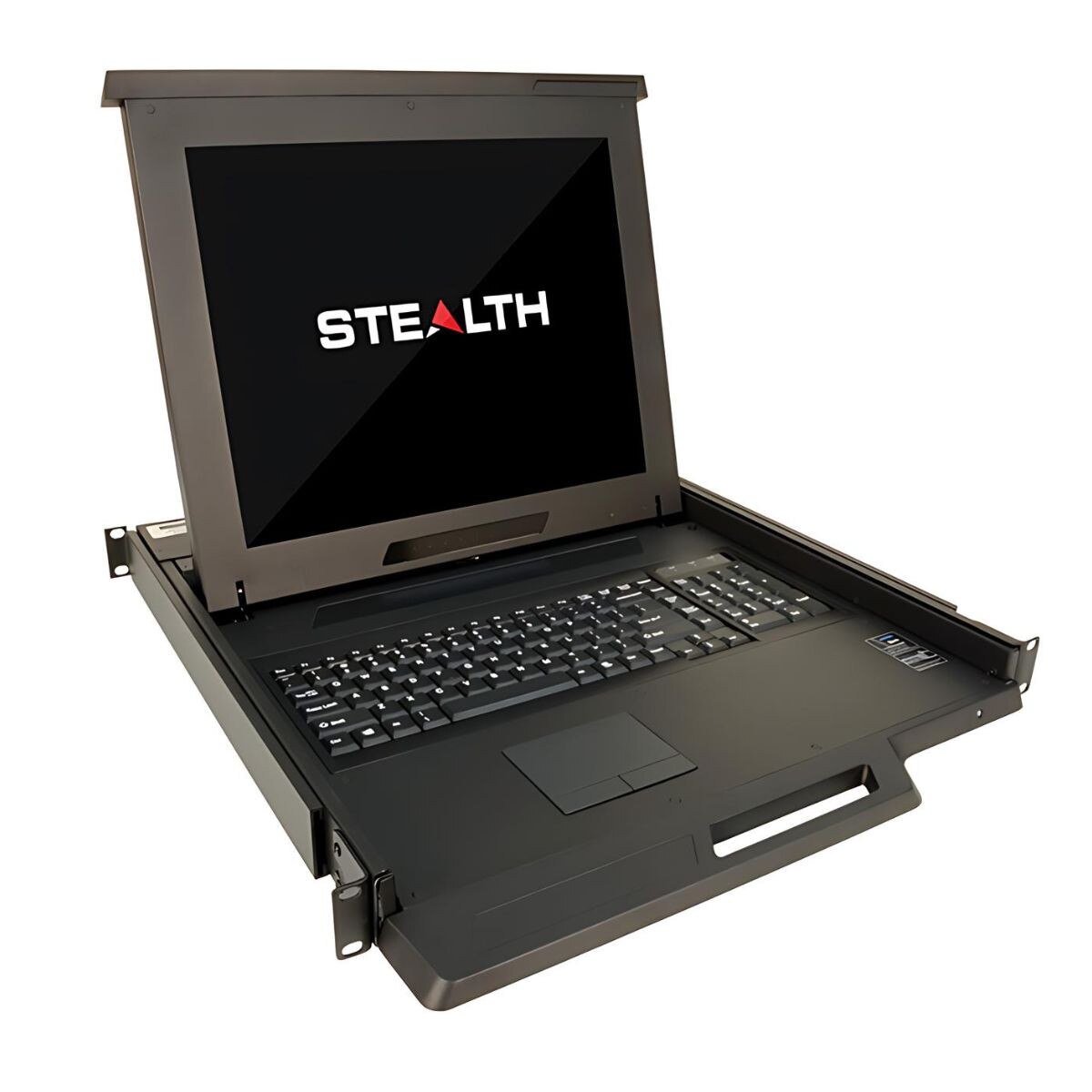

Model: FR-1002-19, Rack Mount Keyboard and LCD Display.
- 19.0” Diagonal LCD Monitor c/w Adjustable Display Angle, 1280 x 1024 Native Resolution

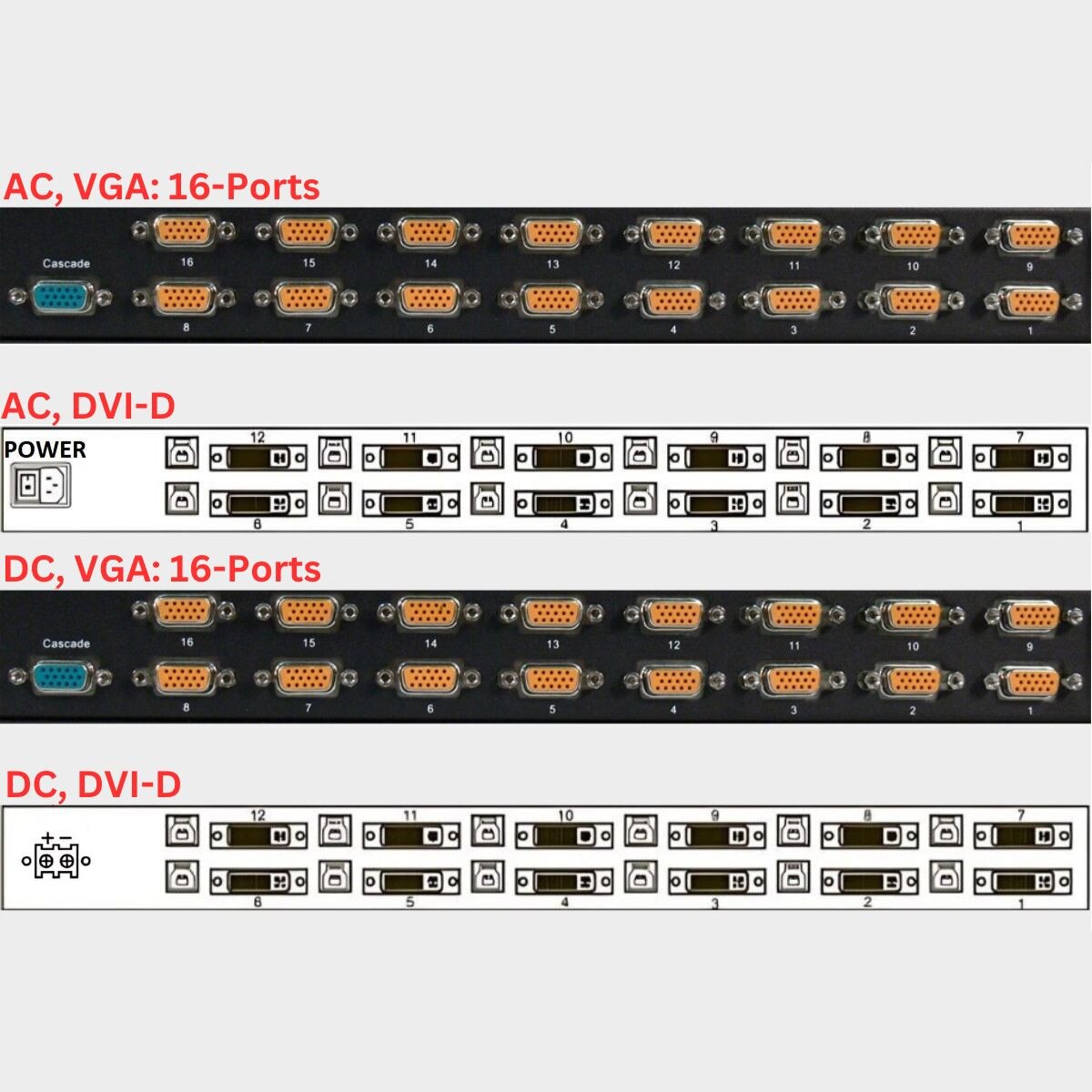

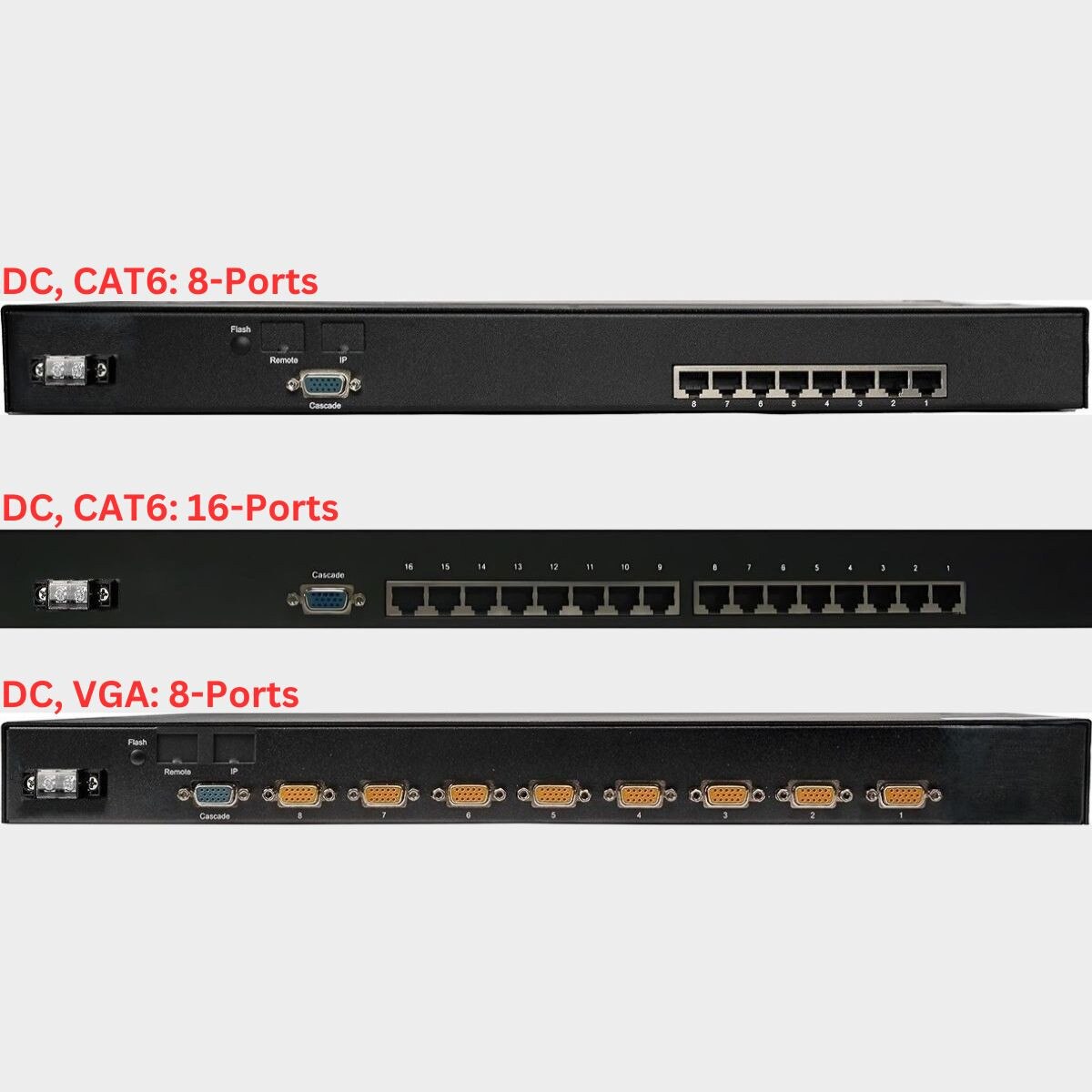

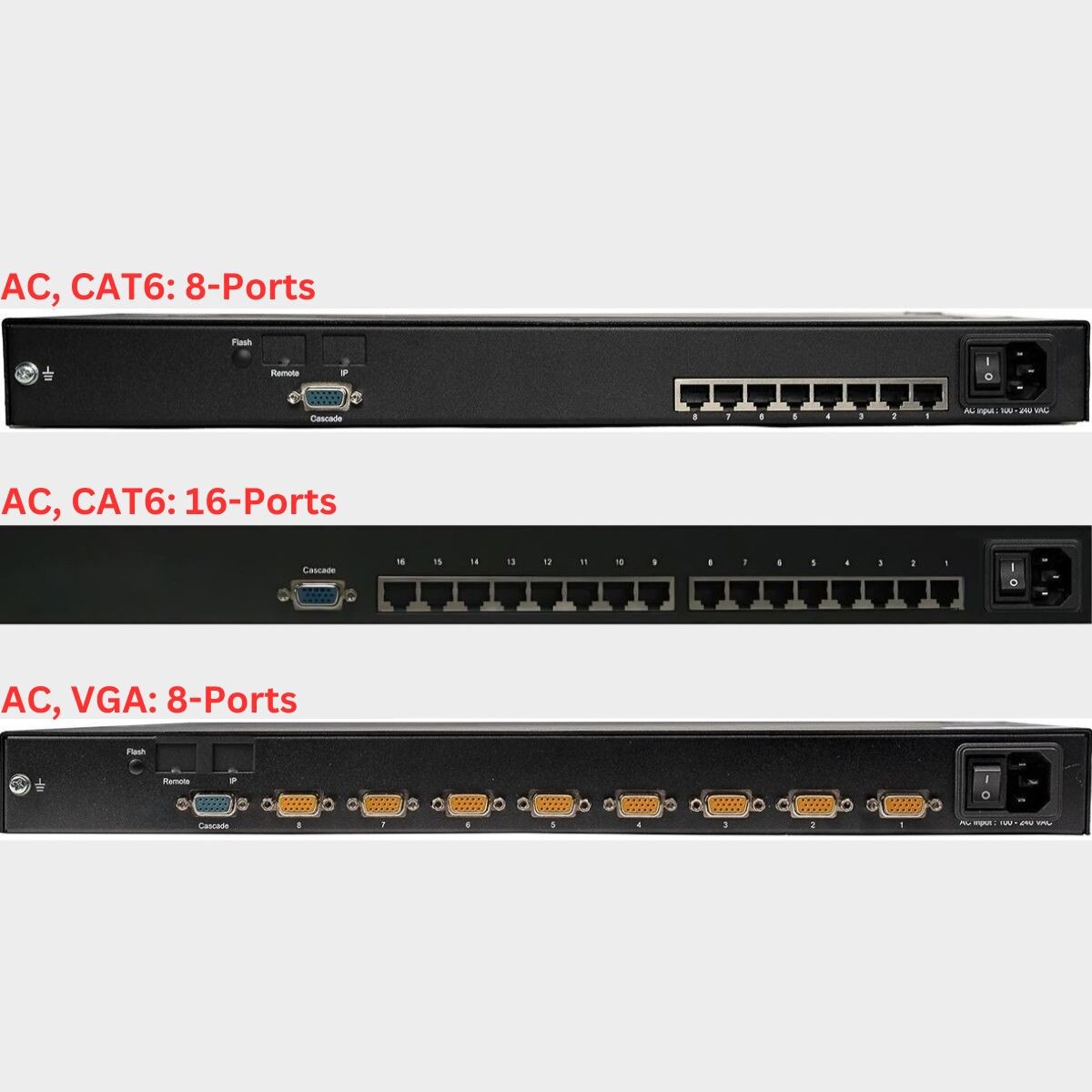

- Options: Integrated 8-, 12-, 16-port KVM Switch, Display ports VGA or DVI-D, or Cat 6 dongles with Keyboard, Mouse and Video (VGA, HDMI, DVI or Display Port)
- 104-button Windows Compatible Keyboard c/w 2-button Touch Pad Pointing Device

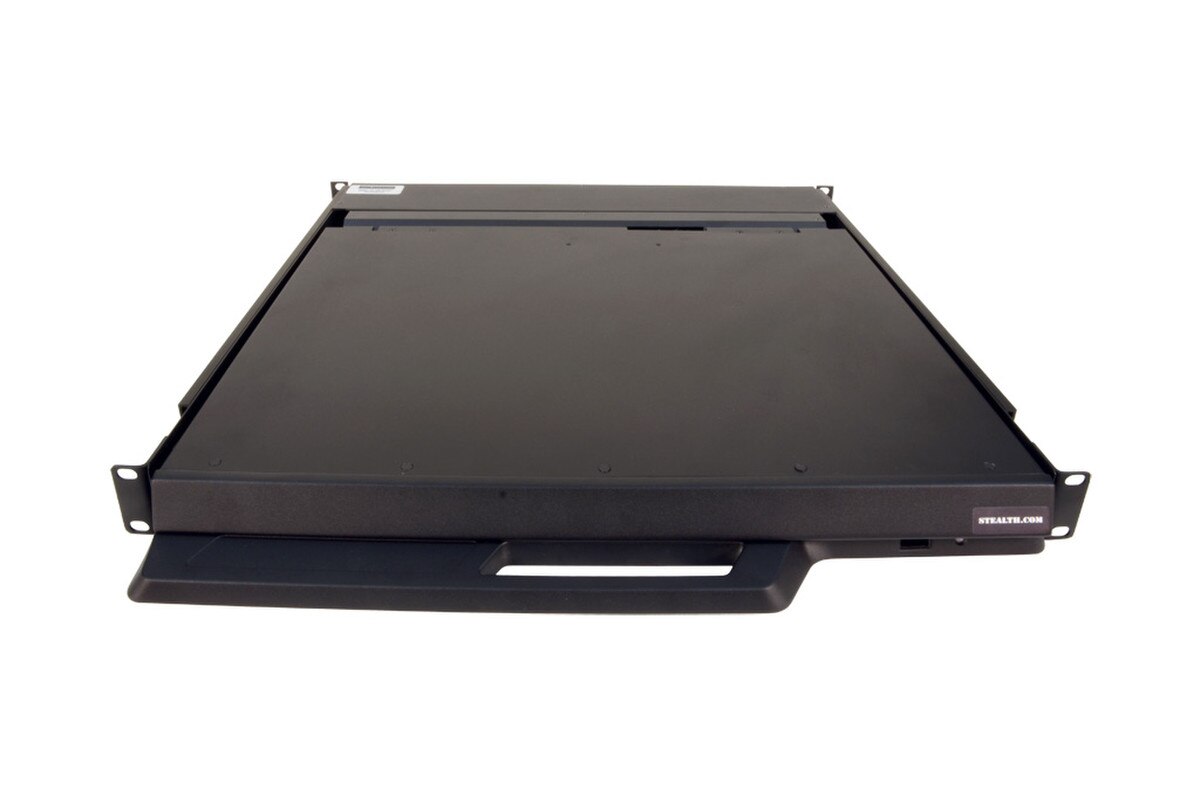

- Includes 19" Black Rack Mount Drawer c/w Slide Rails and Latching Front Handle
- Dimensions: 19.0"W x 1.75"H x 22.83"D
- Internal 100-240V AC, 50/60Hz Power Supply, Optional 12V, 24V, 48V, 125V, or 250V DC Power Supply
2 Year Warranty
[{"System":{"Processors":[],"Chipset":"","Memory":[],"Hardware Monitor":[],"Key Switch":[],"Cable":[],"TPM Module":""}},{"Display":{"Display":["19.0\" (Diagonal)","250 cd/m2 typical at center (250 Nits)","Viewable Image Size - Horizontal: 13.3\" (338mm), Vertical: 10.64\" (270mm)","Viewing Angle: 160° / 160° (H / V) – (Without Touchscreen)"],"Aspect Ratio":"4:03","Contrast Ratio":["1000:1 (typical)"],"Frequency":[],"Native Resolution":"1280 x 1024 (Auto sync from 640 x 480 to 1280 x 1024)","Response Time":"5ms (Typical)","Pixel Pitch":"0.294mm x 0.294mm","Controls":["Brightness, Contrast, H/V Position, Color, Phase, Clock, Language, etc."],"Touchscreen":"","Video":[]}},{"Storage":{"Internal Storage":[],"Drive Bays":[],"Removable Storage":[],"Optical Drives":[]}},{"Input / Output":{"Ports":[],"Video Input":["CAT6: 16x RJ45 connectors","CAT6: 8x RJ45 connectors","DVI: 12x 6’ DVI-D and USB Keyboard, Mouse cable sets","KVM: 16x 6’ VGA / HD-15, PS/2 and USB cable sets","KVM: 8x 6’ VGA / HD-15, PS/2 and USB cable sets"],"Networking":[],"Communications":[],"Audio":[]}},{"Expansion":{"Internal Expansion":[],"Expansion Slots":[]}},{"Operating Systems":{"Operating Systems":[]}},{"Power":{"Power":["Internal 100–240V AC, 50/60Hz Power Supply","Internal 125V DC with Terminal Block","Internal 12V DC with Terminal Block","Internal 24V DC with Terminal Block","Internal 250V DC with Terminal Block","Internal 48V DC with Terminal Block"]}},{"Environmental":{"Environmental":["Operating Humidity: 20% – 90%","Operating Temperature: 0C – +50C (+32F – +122F)","Shock: 10G acceleration (11ms duration)","Storage Humidity: 5% – 90%, non-condensing","Storage Temperature: -5C – +60C (-23F – +140F)","Vibration: 5 – 500Hz, 1G RMS, random vibration"]}},{"Compliance":{"Approvals":["UL"],"Compliance Certification":[]}},{"Physical":{"Chassis Description":["19\" Rackmount steel chassis","1U , 1.75\" or 44.5mm high"],"Housing":[],"Bezel Type":[],"Front Panel":[],"Rear Panel":[],"Cooling Fans":[],"Mounting":[],"Built-in Keyboard/Mouse":["104 Keys","2 Button Touch Pad"],"Keyboard":"","Backlighting Illuminati":[],"Compliance-Certification":[],"Dimensions":["(W-D-H) 19.0\" x 22.8\" x 1.75\" (482.6mm x 579.1mm x 44.5mm)"],"Weight":["Unit Weight: 26 lbs (12 kg)"]}},{"General":{"Compatibility":[],"Included with System":[],"Options":["12/24/48VDC Power supply","KVM version with 8 or 16 inputs available"],"WatchDog Timer":[],"Warranty":["2 Year Parts & Labor"],"Disclaimer":"Note: Specifications are subject to change without notice."}}]
