1535-FTM-OEM
* Product images are for illustration purposes only and may not be an exact representation of the item

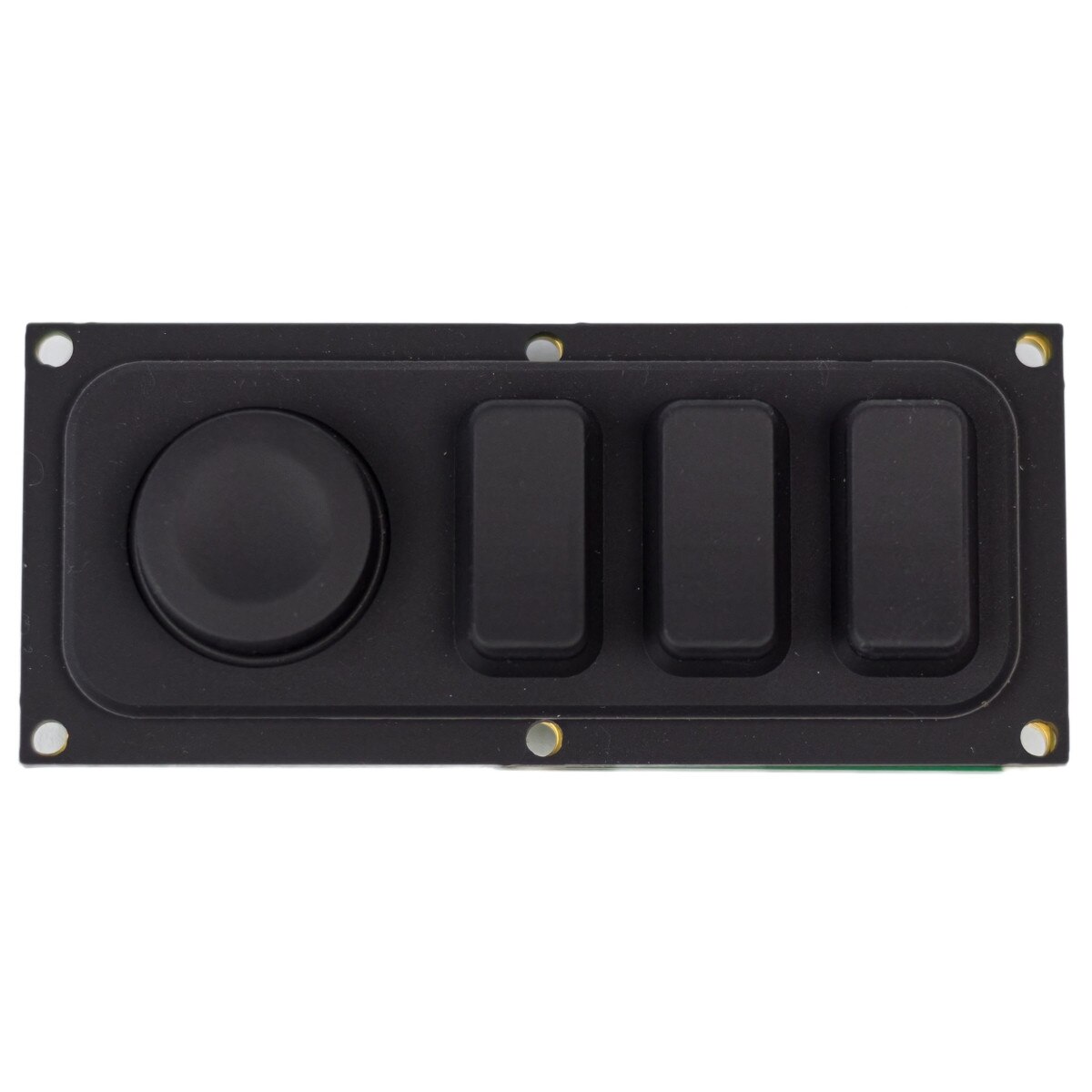

Model: 1535-FTM-OEM NEMA 4/4X Industrial Pointing Device.
- Industrial silicone overlay with Tactile mechanical snap feedback
- 3-Button design, Right, Left & Center / Middle buttons

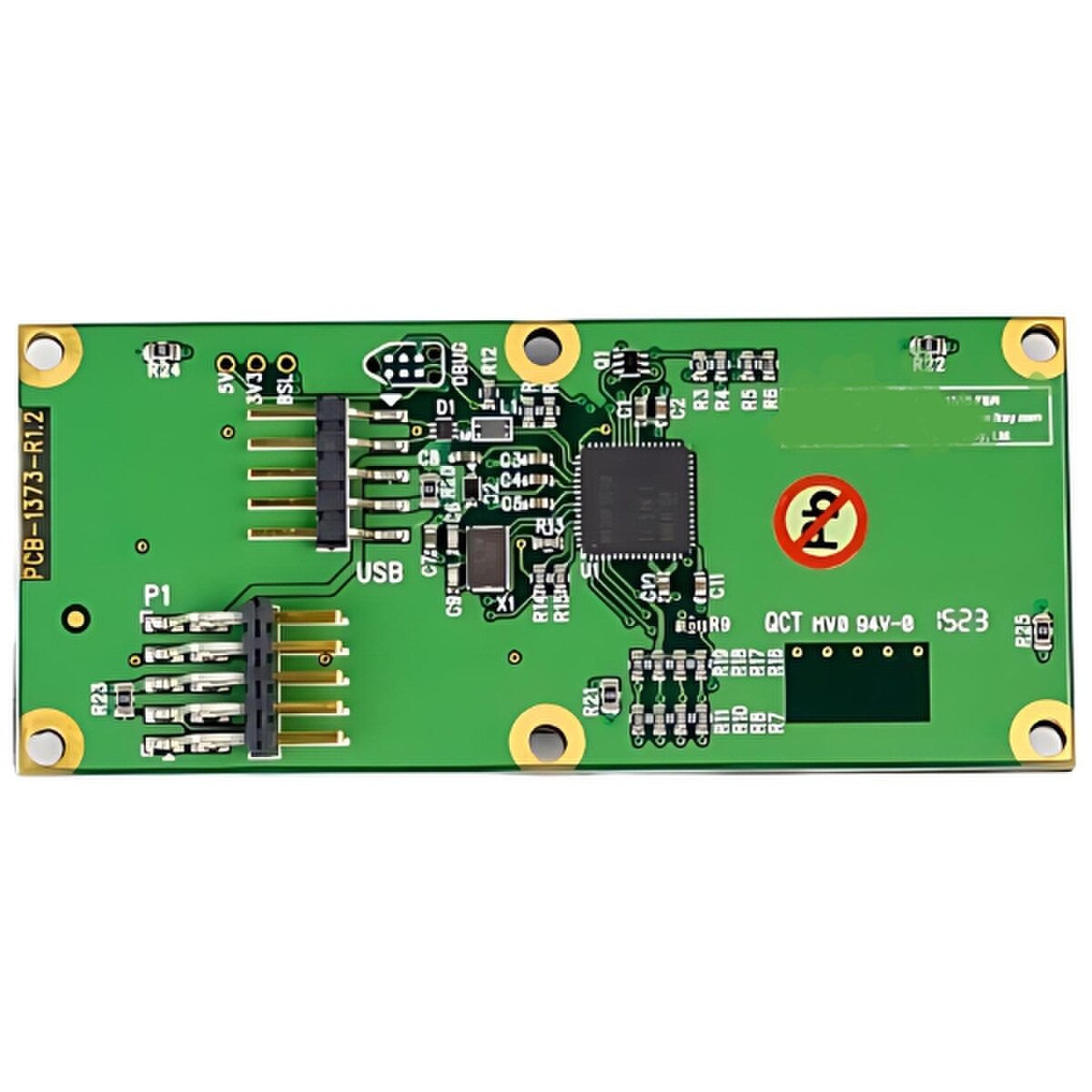

- OEM kit only, includes overlay, PCB and 6' USB or PS/2 interface cable
- Dimensions: 1.5”W x 3.5”D x 0.5”H
1 Year Warranty
[{"System":{"Processors":[],"Chipset":"","Memory":[],"Hardware Monitor":[],"Key Switch":["Actuation Force: 200g (+/- 20g) / 7.05oz (+/- 1.06oz)","Feedback: Tactile with mechanical snap","Life: Greater than 10 million cycles","Material: Industrial Silicone Rubber","Travel: 0.055\" (1.4mm)"],"Cable":["6 Feet (1.8m) Single PS/2","6 Feet (1.8m) USB Connector"],"TPM Module":""}},{"Display":{"Display":[],"Aspect Ratio":"","Contrast Ratio":[],"Frequency":[],"Native Resolution":"","Response Time":"","Pixel Pitch":"","Controls":[],"Touchscreen":"","Video":[]}},{"Storage":{"Internal Storage":[],"Drive Bays":[],"Removable Storage":[],"Optical Drives":[]}},{"Input / Output":{"Ports":[],"Video Input":[],"Networking":[],"Communications":[],"Audio":[]}},{"Expansion":{"Internal Expansion":[],"Expansion Slots":[]}},{"Operating Systems":{"Operating Systems":[]}},{"Power":{"Power":["PS/2 Mouse: 10mA @ 5V (from mouse port)","USB: 35mA @5V (from USB port)"]}},{"Environmental":{"Environmental":["100% Humidity Resistant","Operating: -40C to +70C (-40F to +158F)","Storage: -40C to +90C (-40F to +194F)"]}},{"Compliance":{"Approvals":["NEMA 4, 4X / IP65, UL/ULc 60950, CE, FCC Class 15, Part B"],"Compliance Certification":["3×11 ms pulses of 50g on each of 3 axes","Power Spectral Density: 0.04g/Hz, Frequency Range: 20Hz-2kHz, Duration of Test per Axis: 3 hours"]}},{"Physical":{"Chassis Description":[],"Housing":[],"Bezel Type":[],"Front Panel":[],"Rear Panel":[],"Cooling Fans":[],"Mounting":[],"Built-in Keyboard/Mouse":[],"Keyboard":"","Backlighting Illuminati":[],"Compliance-Certification":["3×11 ms pulses of 50g on each of 3 axes","Power Spectral Density: 0.04g/Hz, Frequency Range: 20Hz-2kHz, Duration of Test per Axis: 3 hours"],"Dimensions":["(W-D-H) 1.5\" x 3.5\" x 0.5\" (38.1mm x 88.9mm x 12.7mm)"],"Weight":[]}},{"General":{"Compatibility":["Compatible with all Windows Operating Systems"],"Included with System":[],"Options":[],"WatchDog Timer":[],"Warranty":["1 Year Parts & Labor"],"Disclaimer":"Note: Specifications are subject to change without notice."}}]
